MCIPC2B
MCIPC2B multi-COM industrial computer with dual LAN
MCIPC2B is a multi-COM industrial computer with dual-LAN architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery
A closer look at MCIPC2B
Different product views highlight the enclosure design, interface layout, and installation details.

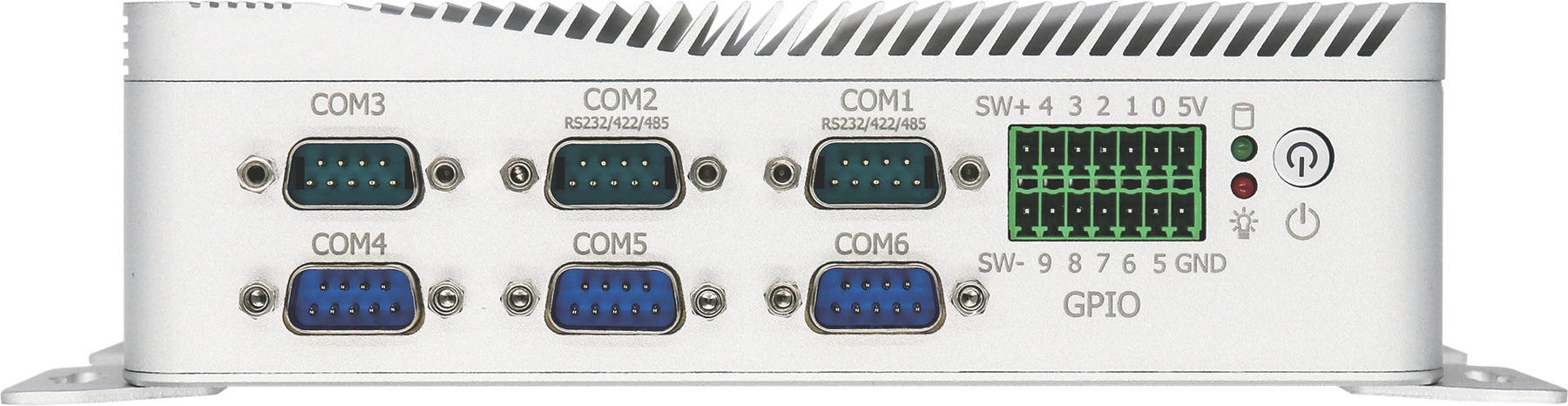

MCIPC2B rear I/O and enclosure

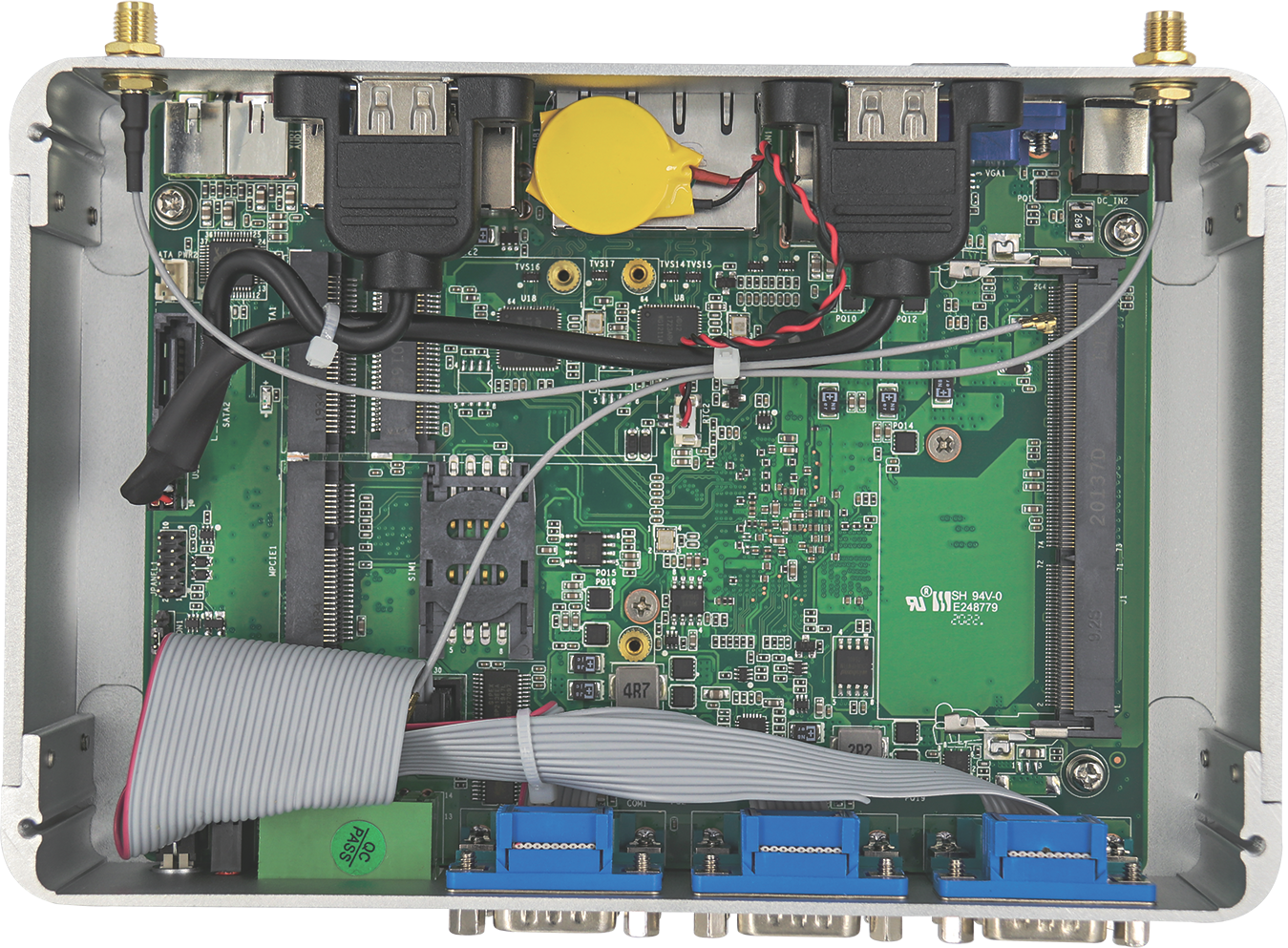

MCIPC2B internal board layout
The motherboard is shown as a supporting engineering view, after the complete enclosure views.
Technical Specifications
Industrial-grade configuration details
MCIPC2B Specification Matrix
Available hardware configurations
Operating Range
Working Temp: -20°C to +60°C
Model
MCIPC2B
Series
C Series
CPU
Intel i3-6157U/i3-7100U/i3-8130U
Display
HDMI, VGA
Memory
1x DDR4 SODIMM slot, maximum support 16GB
USB
4x USB 3.0, 2x USB 2.0
Network
2x GbE RJ45 Intel i211/i210
Serial
6x DB9 COM (2 of them support RS485/RS422)
Storage
1x MSATA , 1x HDD/SSD
Power
DC 12V
System
Windows® 7/8/10, WES 7/10, Linux
Operating Environment
Working Temp: -20°C to +60°C
Dimensions
180 x 120 x 54 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPC2B is a multi-COM industrial computer with dual-LAN architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Multi-COM Architecture
C-series systems provide multiple serial interfaces for equipment control and data acquisition.
Dual-LAN Connectivity
Dual network interfaces support connected automation and industrial edge roles.
Multiple Compute Platforms
Processor and memory options vary by model and selected configuration.
Interested in MCIPC2B?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
