MCIPC9
Six-COM industrial mini PC with Intel Core Ultra and dual LAN
MCIPC9 is a multi-serial industrial computer designed for equipment control, data acquisition, and automation integration. It combines Intel Core Ultra processor options with six DB9 serial ports, dual Intel LAN, wide-voltage input, DDR5 memory, and flexible wireless expansion.
Product Gallery

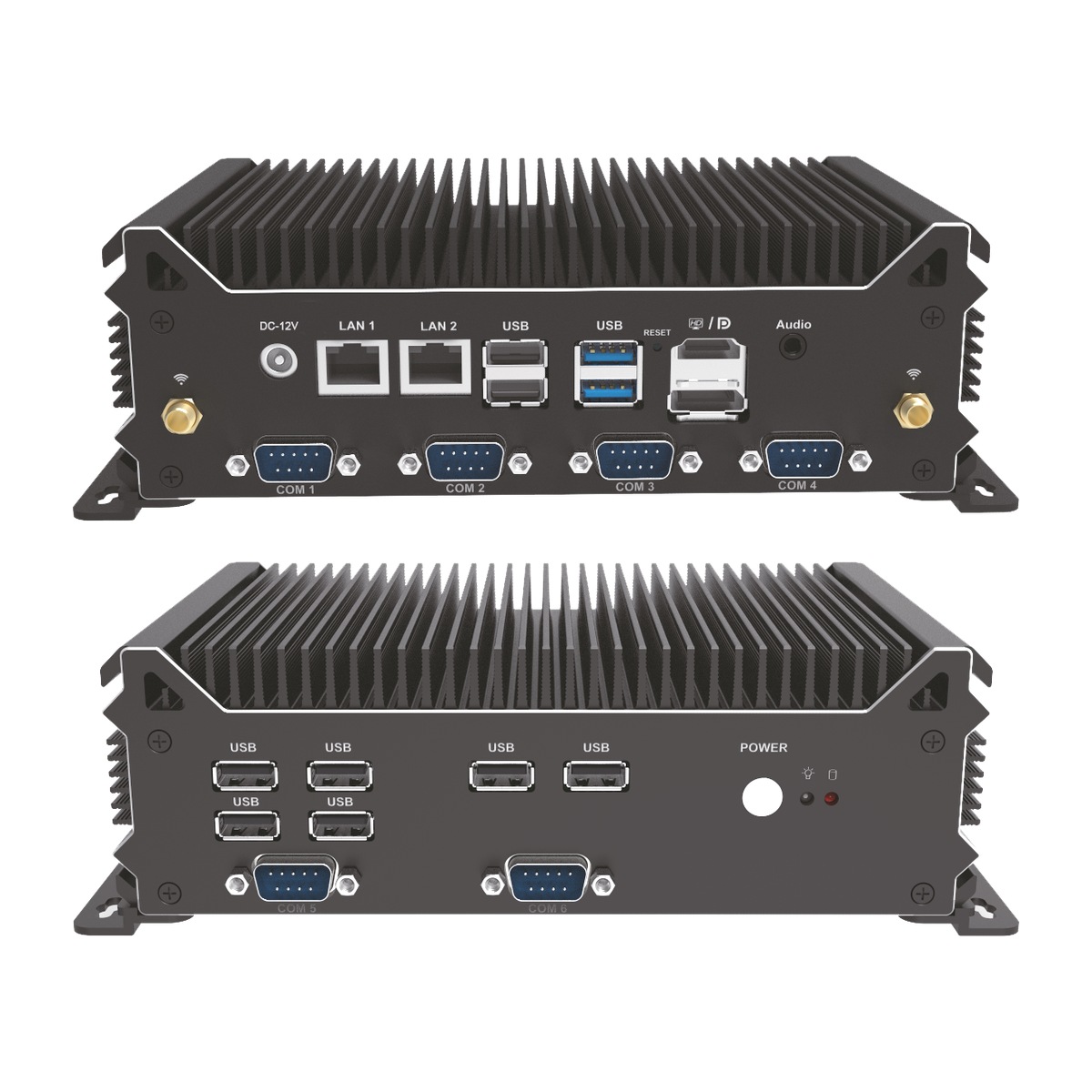

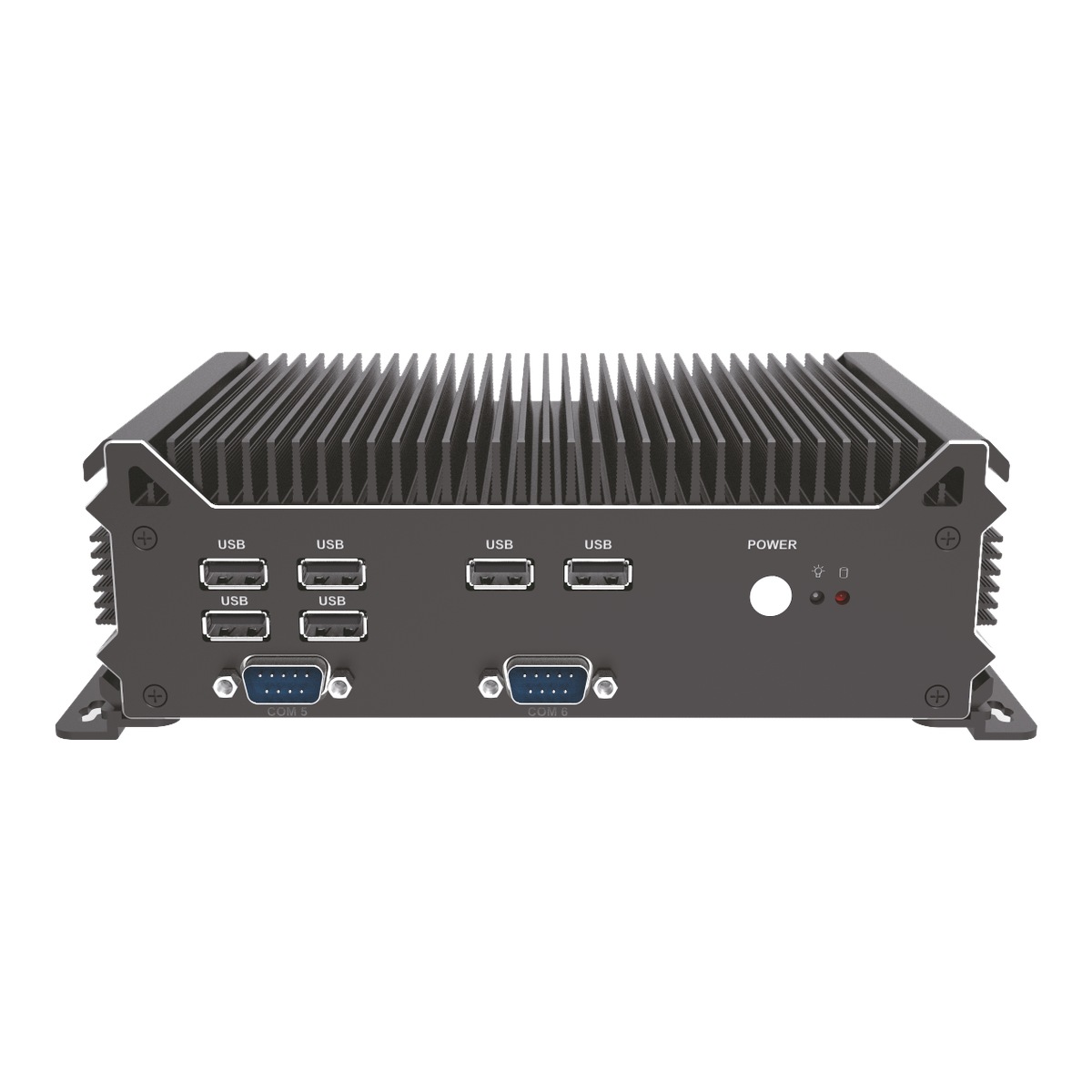

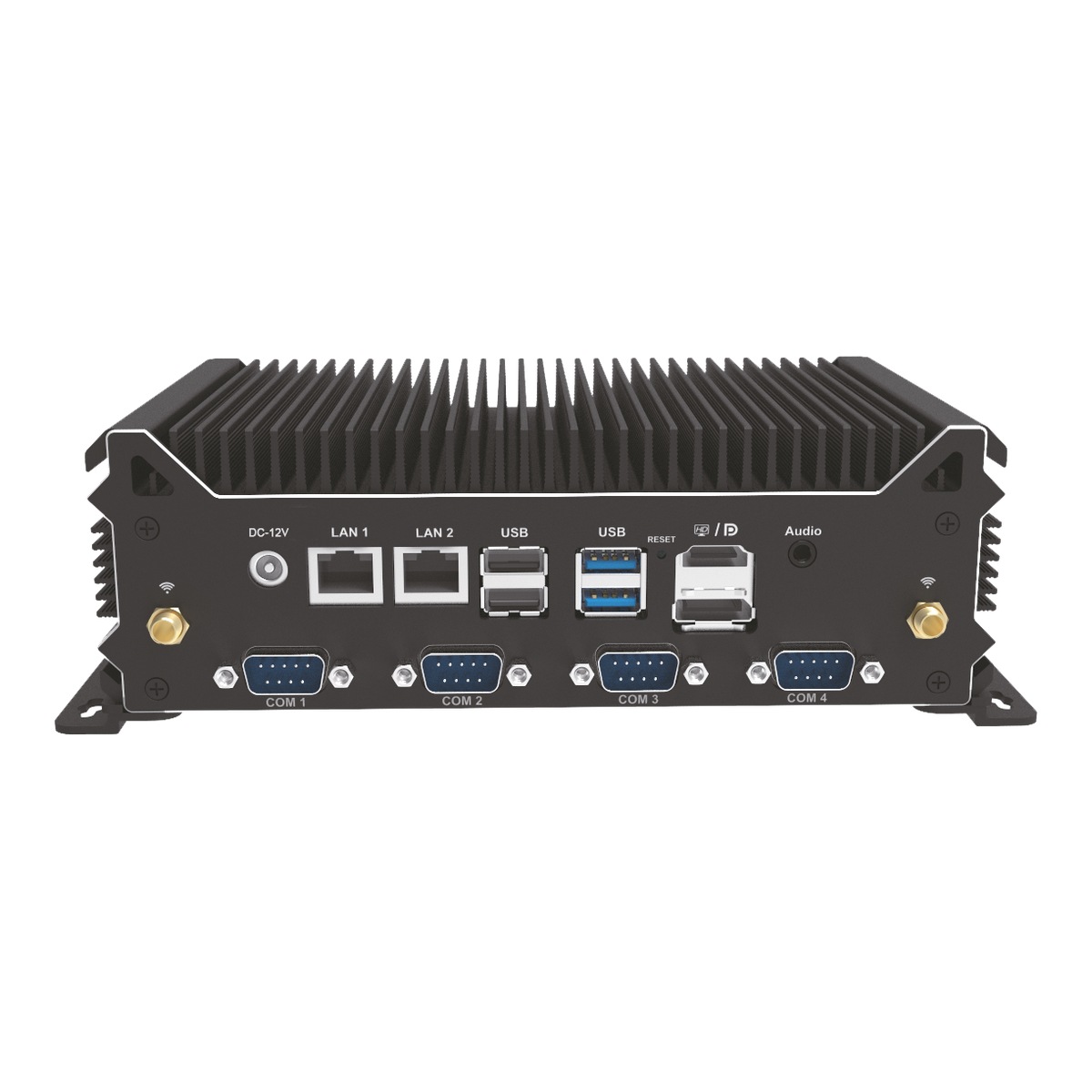

A closer look at MCIPC9
Different product views highlight the enclosure design, interface layout, and installation details.
MCIPC9
MCIPC9
Technical Specifications
Industrial-grade configuration details
MCIPC9 Specification Matrix
Available hardware configurations
Operating Range
-20°C to +60°C
Model
MCIPC9
Series
C Series
CPU
Intel Core 14th Gen Ultra 125U / 125H / 155H / 185H full series processors
Display
1 x HDMI , 1 x DP
USB
2 x USB 3.2 Gen2 (10Gbps), 8 x USB 2.0
Serial
COM2/COM3 support optional RS485 via jumper)
Power
DC 9-36V wide voltage input
System
Windows 10 / Windows 11 / Linux / Ubuntu / CentOS
Operating Environment
Operating Temperature: -20°C to 60°C
Dimensions
195 x 127 x 62 mm
Memory
1 x SO-DIMM slot, supports single-channel 5600MHz DDR5 memory; maximum up to 48GB
Network
1 x Intel I219LM GbE; 1 x Intel i226-V 2.5 GbE; supports vPro, WOL and PXE boot
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPC9 represents the C-series focus on multiple serial interfaces with dual networking, combining six DB9 ports, modern Intel Core Ultra processors, DDR5 memory, and wide-voltage input.
Intel Core Ultra Platform
Core Ultra processor options provide a modern platform for industrial control and edge workloads.
Six Serial Interfaces
Six DB9 ports support serial equipment integration, with selected TTL and RS485 configuration options.
Wide-Voltage Input
DC 9-36V input supports deployment across varied industrial power environments.
