MCIPCA1

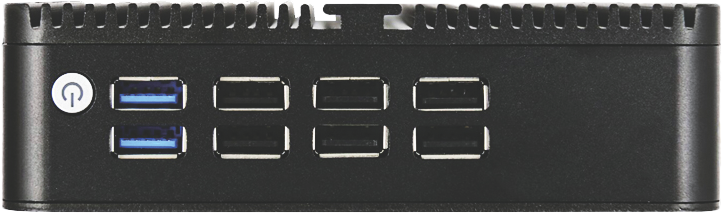

MCIPCA1 compact A Series industrial computer
MCIPCA1 is a compact industrial computer with a single-COM or COM-less architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery
A closer look at MCIPCA1
Different product views highlight the enclosure design, interface layout, and installation details.

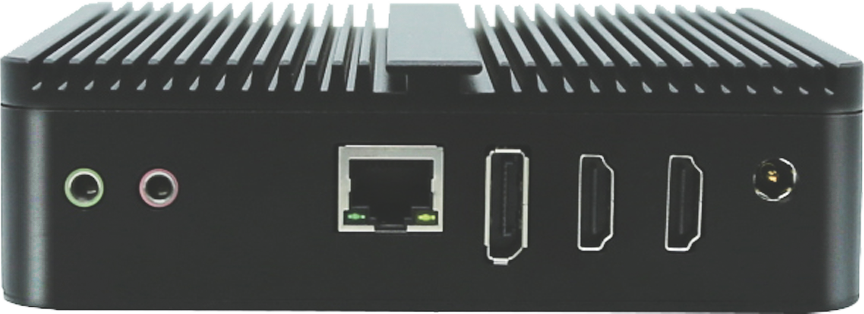

Rear I/O and enclosure layout

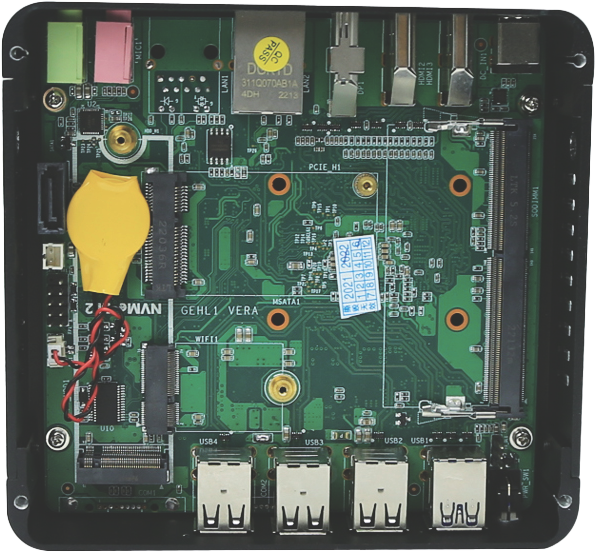

Internal board layout
The internal hardware is retained as a supporting engineering view rather than the product hero image.
Technical Specifications
Industrial-grade configuration details
MCIPCA1 Specification Matrix
Available hardware configurations
Operating Range
Working Temperature: -20~60℃；
Model
MCIPCA1
Series
A Series
CPU
Onboard Intel Celeron J6412/ Pentium J6426
Display
2 x HDMI;1 x DP
USB
6 x USB2.0; 2 x USB3.0
Network
2 x RJ45 Gigabit LAN
Serial
2 x DB9 RS232 COM
Storage
1 x M.2 SSD slot
Power
1 x DC 12V
System
Windows10/WES10/Linux
Operating Environment
Working Temperature: -20~60℃；
Dimensions
135 x 127 x 38.7(mm)
Memory
1 x DDR4 SO-DIMM Slot Max 32GB
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCA1 is a compact industrial computer with a single-COM or COM-less architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Compact Industrial Platform
A-series systems focus on compact deployment with single-COM or COM-less interface architecture.
Practical Connectivity
Network, USB, display, and expansion interfaces vary by model and selected configuration.
Configuration Options
Processor, memory, storage, and wireless options vary by model and selected platform.
Interested in MCIPCA1?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
