MCIPCA2
Compact single-COM industrial mini PC with four Intel Gigabit LAN ports

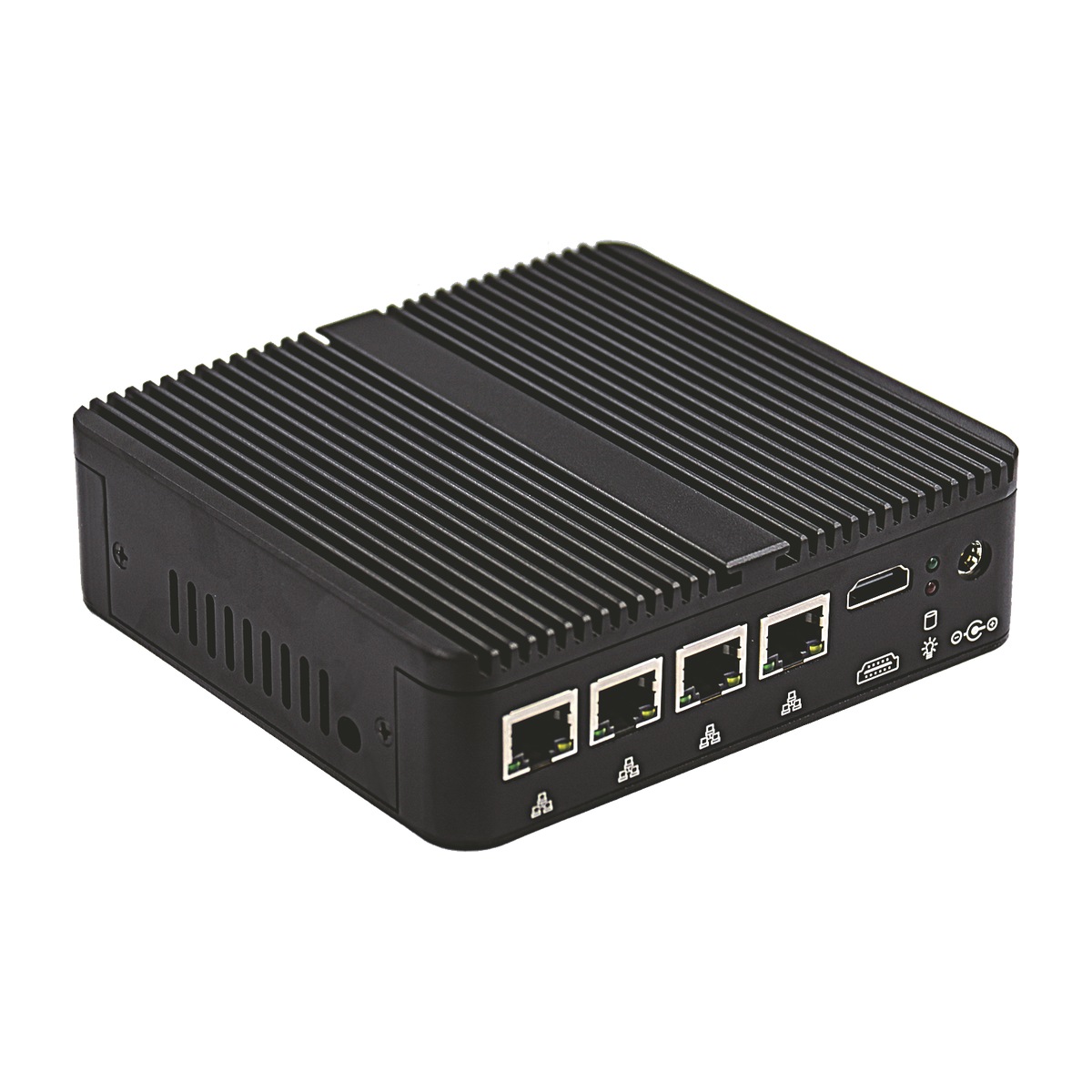

MCIPCA2 is a compact fanless industrial computer for gateway, embedded network, and machine-side deployments. It combines an Intel J4125 processor with four Intel Gigabit LAN ports, one RS232 serial port, six USB ports, wireless expansion, and a compact aluminum enclosure.
Product Gallery
A closer look at MCIPCA2
Different product views highlight the enclosure design, interface layout, and installation details.
MCIPCA2
MCIPCA2
Technical Specifications
Industrial-grade configuration details
MCIPCA2 Specification Matrix
Available hardware configurations
Operating Range
-20°C to +60°C
Model
MCIPCA2
CPU
Intel Celeron J4125
Video
1 x HDMI
RAM
1 x DDR4 SO-DIMM slot, maximum 8GB
USB
2 x USB 3.0, 4 x USB 2.0
Power Input
DC 12V
COM
1 x DB9 RS232 COM
NIC
4 x GbE RJ45 with Intel i211/i210 controllers
Storage
1 x 2.5-inch HDD/SSD, 1 x mSATA
Expansion
1 x full-size Mini-PCIe with onboard SIM slot, supporting 3G/4G module, WiFi, and Bluetooth

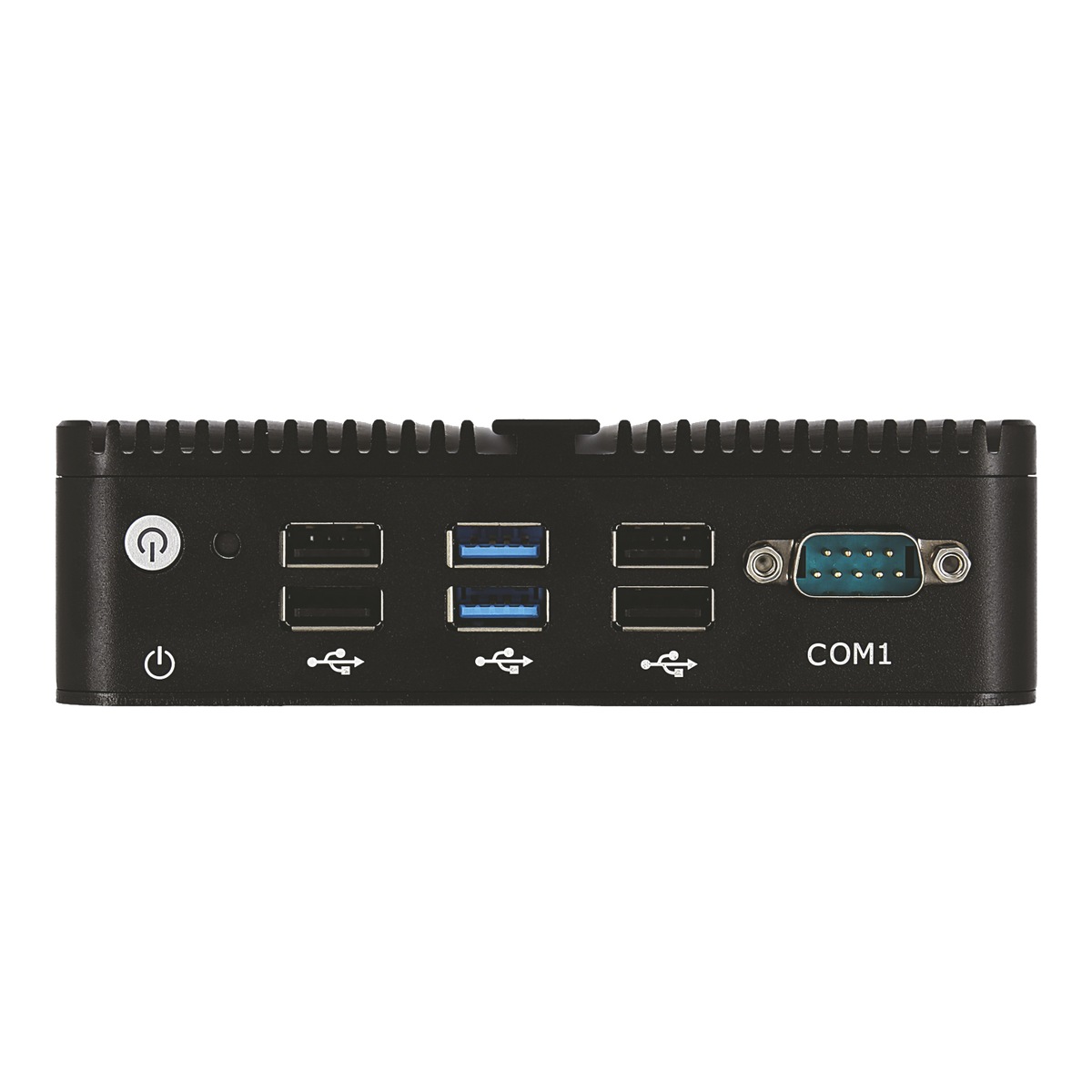

Front I/O
1 x power button, 1 x reset button, 2 x USB 3.0, 4 x USB 2.0, 1 x DB9 RS232 COM

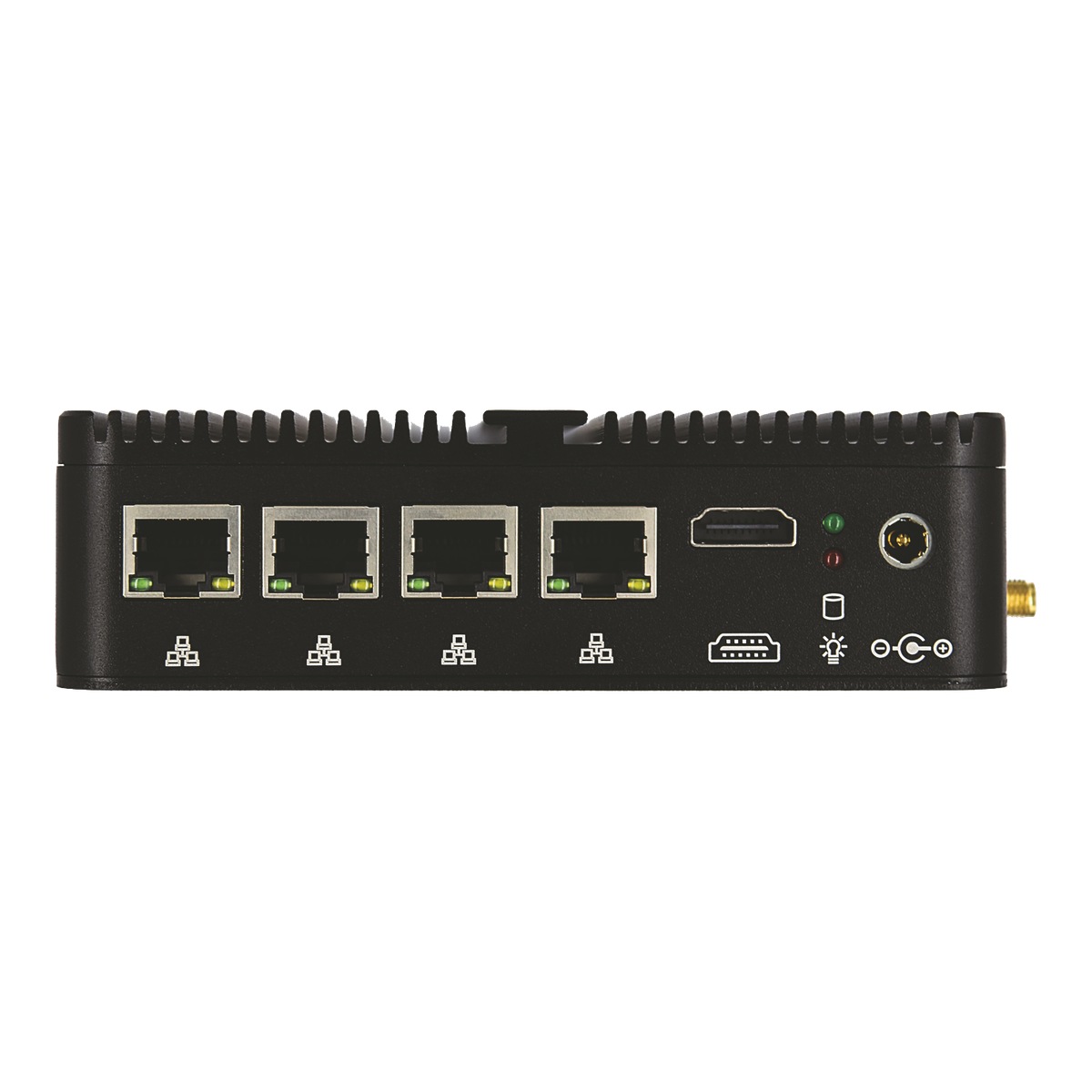

Rear I/O
4 x GbE RJ45 LAN, 1 x HDMI, 1 x DC 12V input, 2 x antenna connectors, 1 x SIM card slot, power and HDD LEDs
System
Windows 10, WES 10, Linux
Working Environment
Operating temperature: -20°C to +60°C; storage temperature: -30°C to +70°C; storage humidity: 10%-90% @30°C, non-condensing
Size
135 x 127 x 38.7 mm
Weight
1 kg
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCA2 represents the A-series approach: compact deployment with a single serial interface, while retaining four Intel Gigabit LAN ports and practical storage and wireless expansion.
Four Intel Gigabit LAN Ports
Four Intel i211/i210 network interfaces suit compact gateways and multi-network edge deployments.
Practical Peripheral I/O
Six USB ports and one RS232 serial port connect common industrial peripherals without unnecessary serial density.
Wireless Expansion
Full-size Mini-PCIe and an onboard SIM slot support compatible cellular, WiFi, and Bluetooth modules.
