MCIPCB11 dual-LAN, dual-COM industrial computer
MCIPCB11 is an industrial computer with dual-LAN and dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery

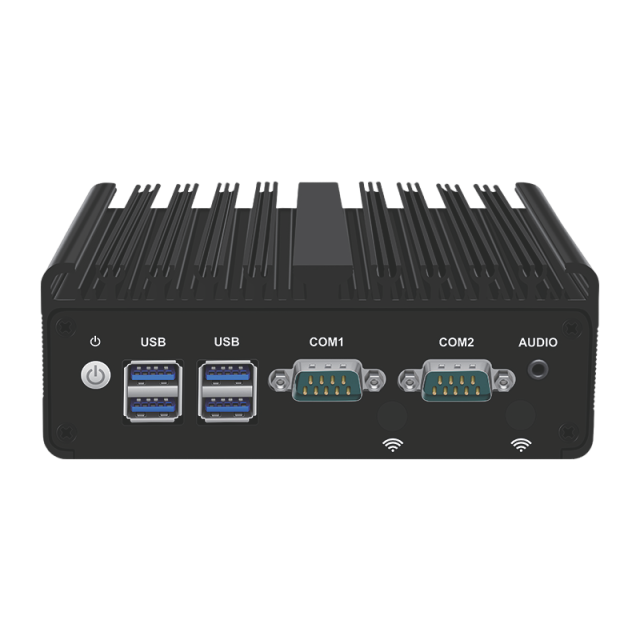

A closer look at MCIPCB11
Different product views highlight the enclosure design, interface layout, and installation details.

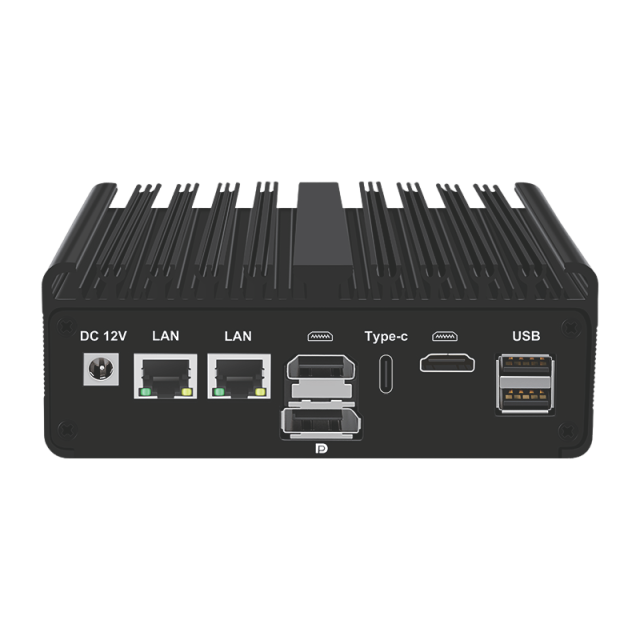

MCIPCB11 rear I/O and enclosure

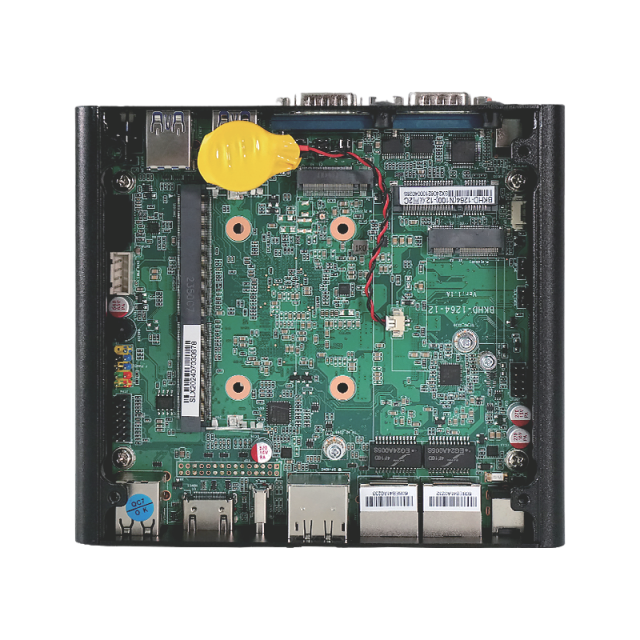

MCIPCB11 internal board layout
The motherboard is shown as a supporting engineering view, after the complete enclosure views.
Technical Specifications
Industrial-grade configuration details
MCIPCB11 Specification Matrix
Available hardware configurations
Operating Range
0~50℃;5%~90% Relative humidity,
Model
MCIPCB11
Series
B Series
CPU
Intel N100
Display
2 x HDMI; 1 x DP; 1 x USB-C(Display supported)
Memory
1 x DDR4 SO-DIMM Slot
USB
4 x USB3.0/2 x USB2.0
Network
2 x Realtek RTL8111 Gigabit LAN
Serial
2 x COM（RS232/RS485）
Power
1 x DC 12V
System
Windows10/Windows11/Linux
Operating Environment
0~50℃;5%~90% Relative humidity,
Dimensions
138 x 126 x 48(mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB11 is an industrial computer with dual-LAN and dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
