MCIPCB13A
Configurable Intel Core industrial PC with dual LAN and dual COM
MCIPCB13A provides Intel Core platform options, dual Gigabit Ethernet, two DB9 COM ports, eight USB ports, and 12–19V input in a 193.9 x 127 x 57.2 mm enclosure. Memory and storage depend on the processor configuration.
Product Gallery
A closer look at MCIPCB13A
Different product views highlight the enclosure design, interface layout, and installation details.

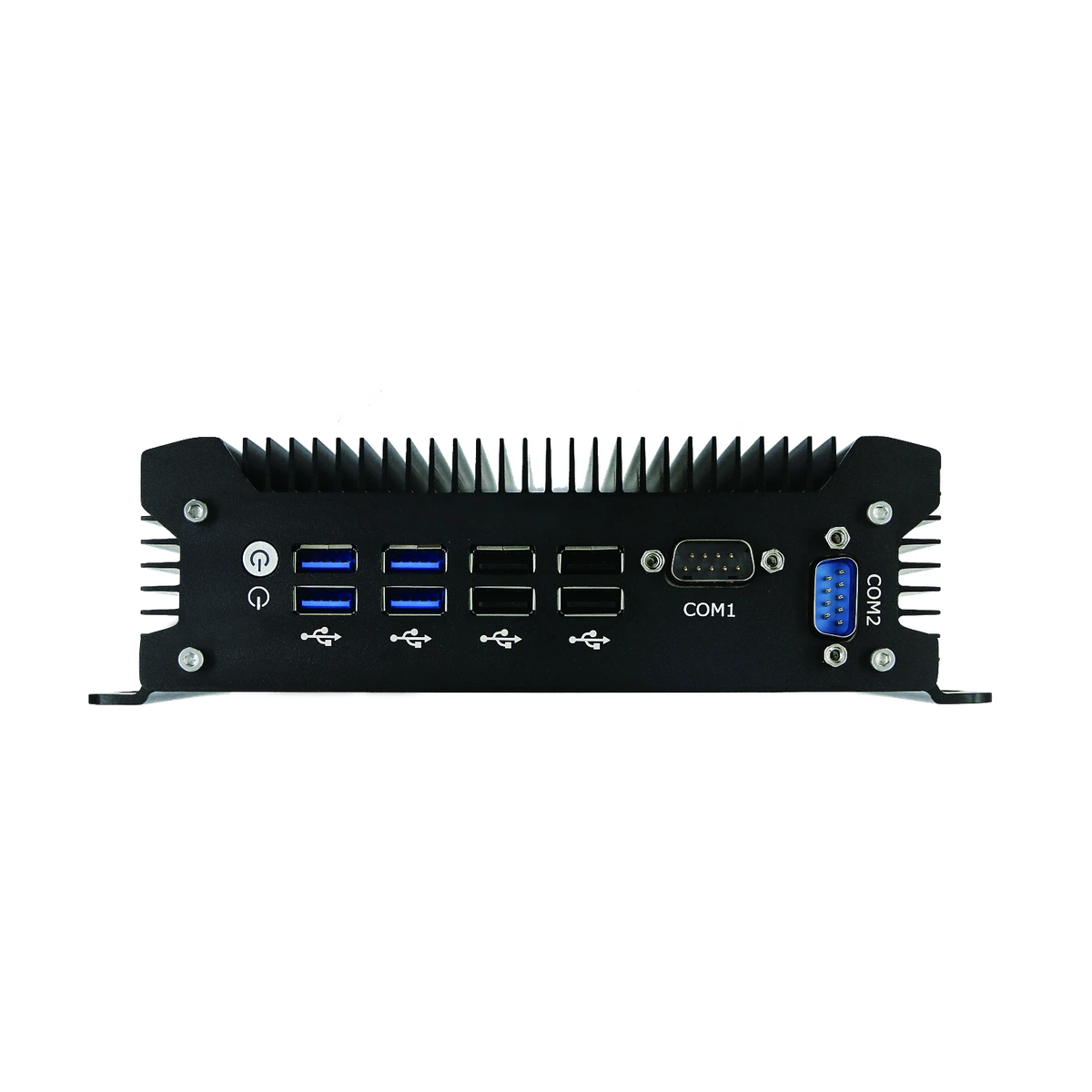

MCIPCB13A front panel

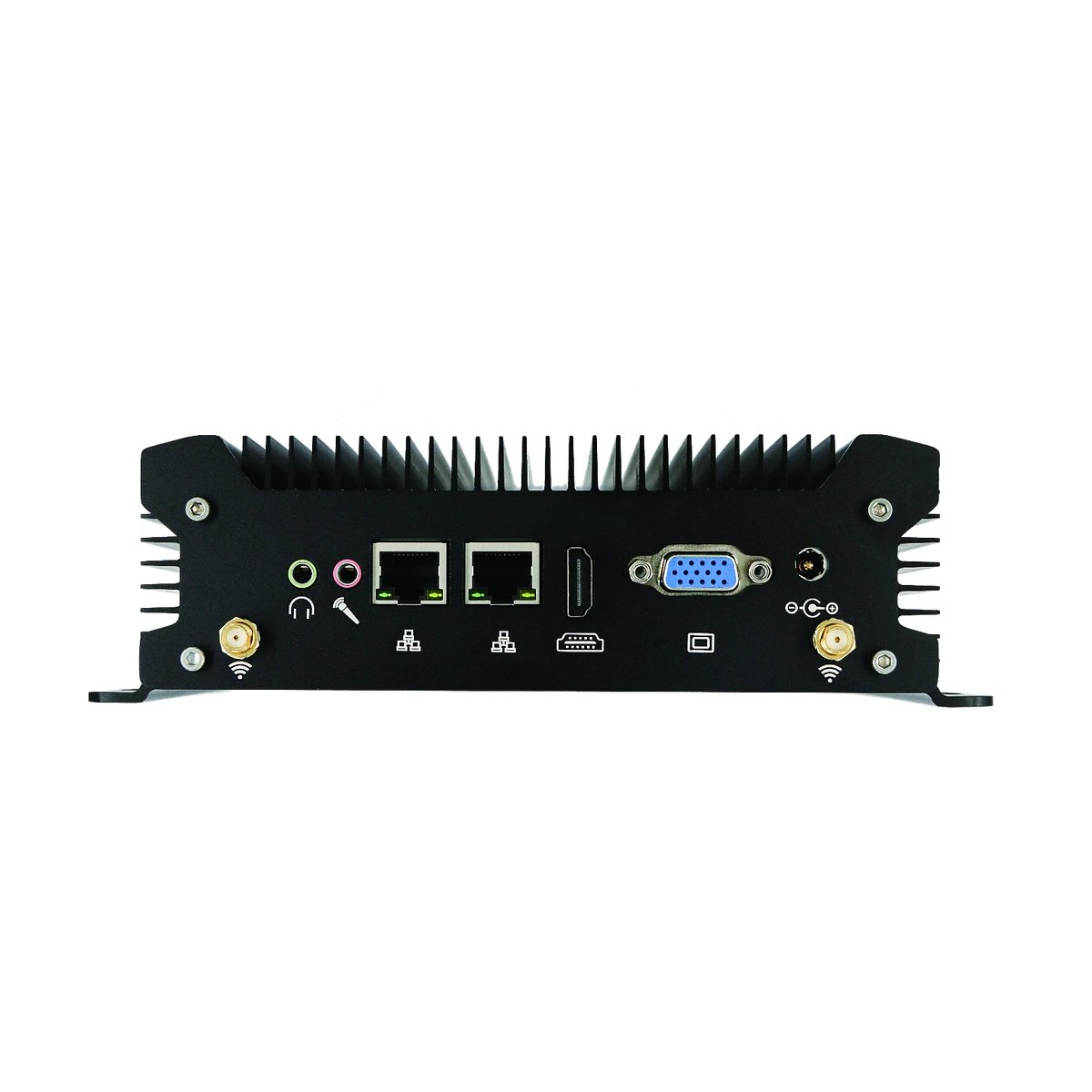

MCIPCB13A rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB13A Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCIPCB13A
CPU
Optional Intel 4th/5th/6th/7th/8th/10th Gen Core i3/i5/i7 CPU
Display
1 x HDMI, 1 x VGA (or HDMI)
Memory
4th Gen: 1 x DDR3L SODIMM, maximum support 8GB; 6th/7th/8th Gen: 1 x DDR4 SODIMM, maximum support 16GB; 8th/10th Gen: 2 x DDR4 SODIMM, maximum support 32GB
USB
4 x USB 3.0, 4 x USB 2.0
Power
DC 12V-19V Power Input
Network
2 x GbE RJ45 x Realtek 8111H
Serial
2 x DB9 COM
Storage
4th Gen: 1 x MSATA; 6th/7th/8th/10th Gen: 1 x M.2 2280 (Supports SATA and NVME); 1 x 2.5" HDD/SSD
Expansion
1 x Mini-PCIe half/full card (with SIM slot, supports 3G/4G, Wi-Fi/Bluetooth); Supports Watchdog, Diskless boot
Dimensions
193.9 x 127 x 57.2 mm
OS
Windows 7/8/10, WES 7/10, LINUX
Environment - Operating
Working Temp: -20°C to +60°C; Storage Temp: -30°C to +70°C; Storage Humidity: 10%~90% @30, non-condensing
Front I/O - Ports
1 x Power Button; 4 x USB 3.0; 4 x USB 2.0; 2 x DB9 COM (COM1, COM2)
Rear I/O - Ports
1 x DC Power Input (12V-19V); 2 x GbE RJ45 LAN; 1 x HDMI; 1 x VGA; 1 x Earphone jack, 1 x Microphone; 2 x Antenna connectors (for Wi-Fi/3G/4G)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB13A provides Intel Core platform options, dual Gigabit Ethernet, two DB9 COM ports, eight USB ports, and 12–19V input in a 193.9 x 127 x 57.2 mm enclosure. Memory and storage depend on the processor configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
Interested in MCIPCB13A?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
