MCIPCB13B
Intel Core Ultra / Core 3 industrial PC with DDR5 and triple display
MCIPCB13B supports Intel Core Ultra Series 1/2 or Core 3 Series processors, up to 64GB DDR5, dual Gigabit LAN, two RS-232 ports, two HDMI outputs and DisplayPort. USB allocation and 2.5-inch storage availability depend on the selected processor platform.
Product Gallery
A closer look at MCIPCB13B
Different product views highlight the enclosure design, interface layout, and installation details.

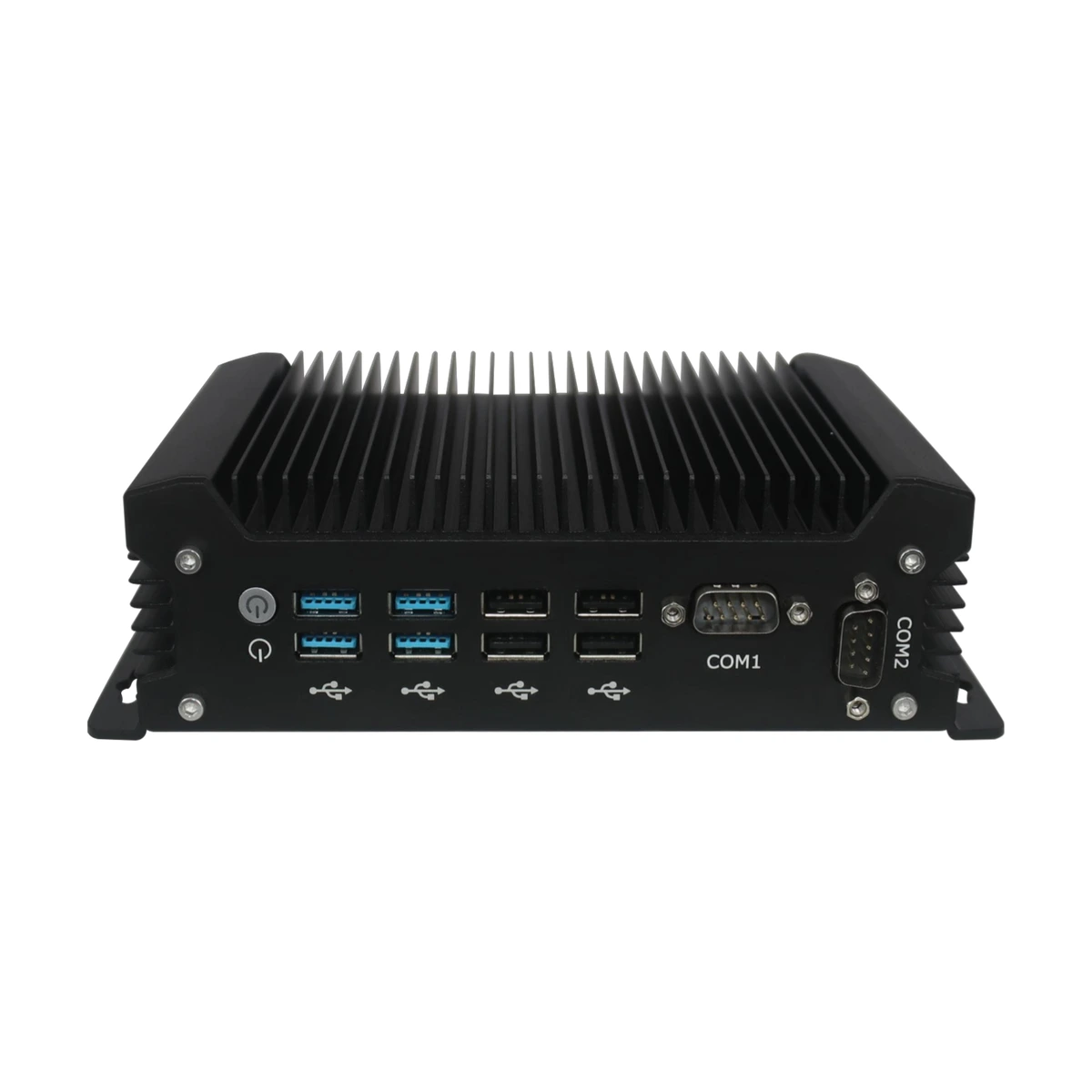

MCIPCB13B front panel

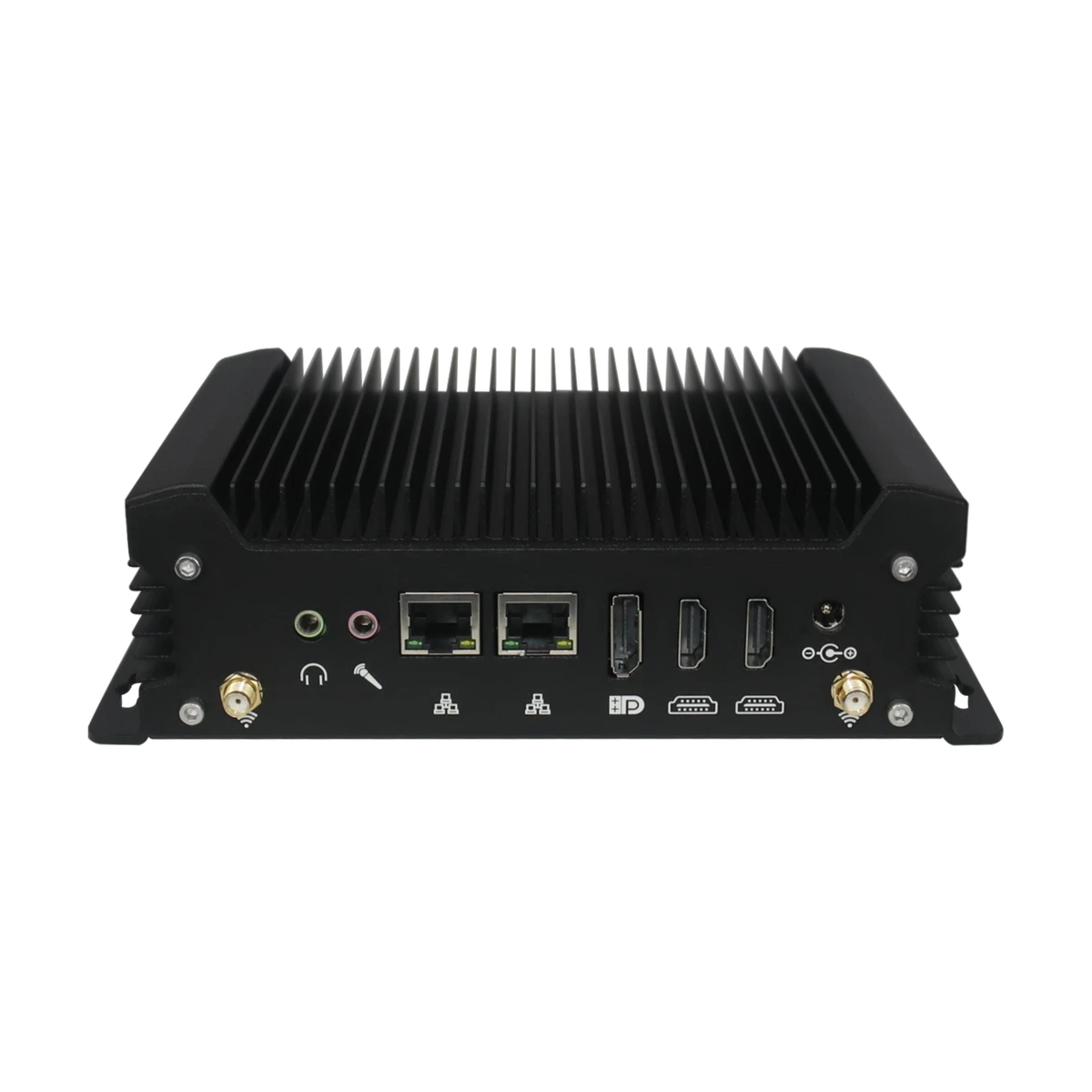

MCIPCB13B rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB13B Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCIPCB13B
CPU
Optional Intel Core Ultra Series 1/2 U5/U7 processors; Intel Core 3 Series 304/305/315/320/330/350/360 processors
Memory
1 x DDR5 SODIMM, maximum 64 GB
Network
2 x Realtek RTL8111H Gigabit Ethernet ports
USB
Core Ultra Series 1/2: 4 x USB 3.0, 4 x USB 2.0; Core 3 Series: 2 x USB 3.0, 6 x USB 2.0
Serial
2 x DB9 RS-232 ports
Display
2 x HDMI; 1 x DisplayPort
Ports
1 x headphone jack; 1 x microphone jack
Storage
1 x M.2 2280 NVMe SSD; 1 x 2.5-inch HDD/SSD (not supported on Core 3 Series)
Expansion
1 x M.2 2232 for Wi-Fi; 1 x M.2 3042 for 3G/4G, with onboard SIM slot; 2 x antenna connectors
Power
12-19 V DC input
OS
Windows 10; Windows 11; Linux
Material
Aluminium
Mounting
Desktop or wall mounting
Dimensions
193.9 x 127 x 57.2 mm
Weight
1 kg
Environment - Operating
Operating temperature: -20 C to +60 C; storage temperature: -30 C to +70 C; storage humidity: 10%~90% at 30 C, non-condensing
Other
Supports watchdog and diskless boot
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB13B supports Intel Core Ultra Series 1/2 or Core 3 Series processors, up to 64GB DDR5, dual Gigabit LAN, two RS-232 ports, two HDMI outputs and DisplayPort. USB allocation and 2.5-inch storage availability depend on the selected processor platform.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
