MCIPCB14
Intel N100 / i3-N305 compact industrial PC
MCIPCB14 combines Intel N100 / i3-N305 processing, up to 32GB DDR5, and dual lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB14
Different product views highlight the enclosure design, interface layout, and installation details.

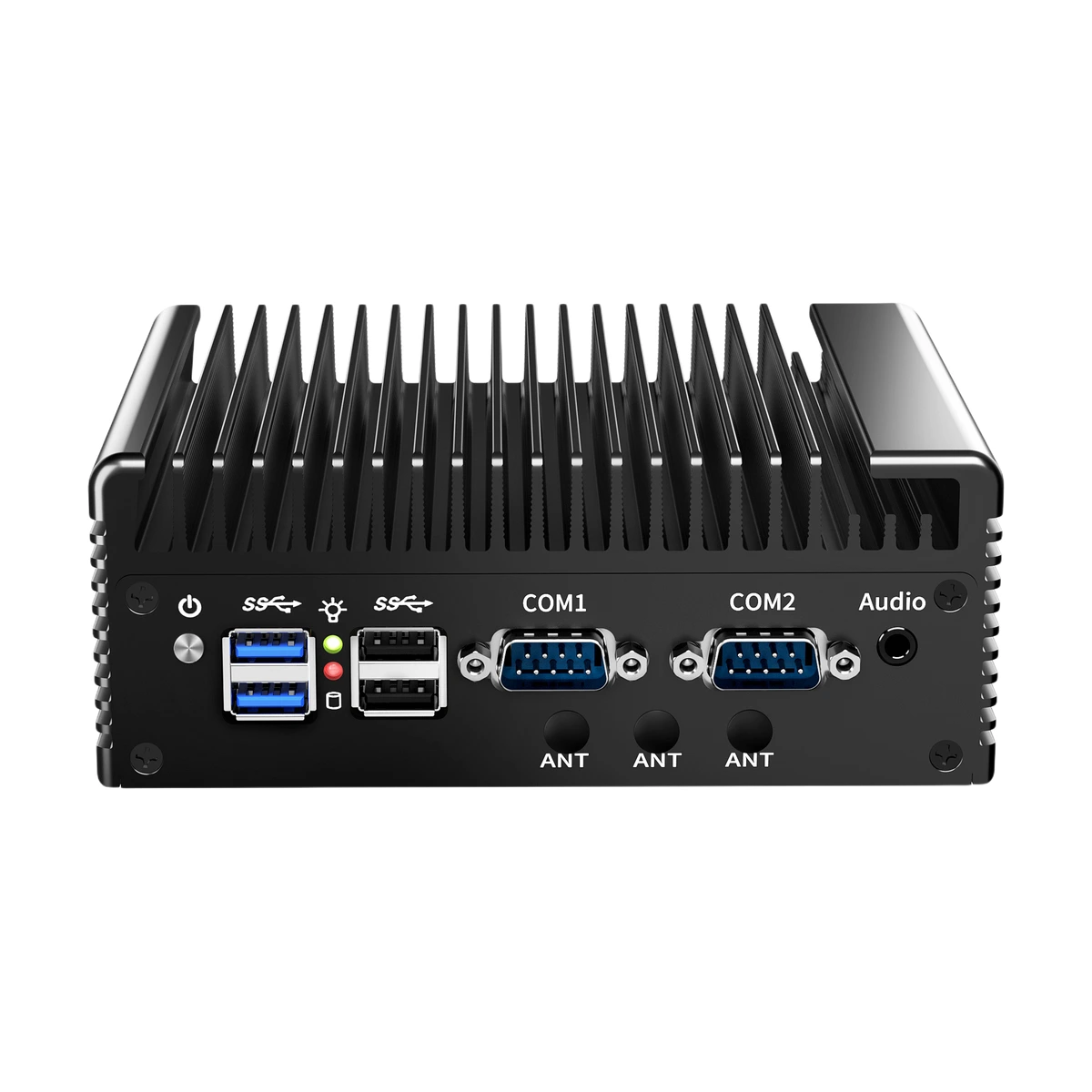

MCIPCB14 front panel

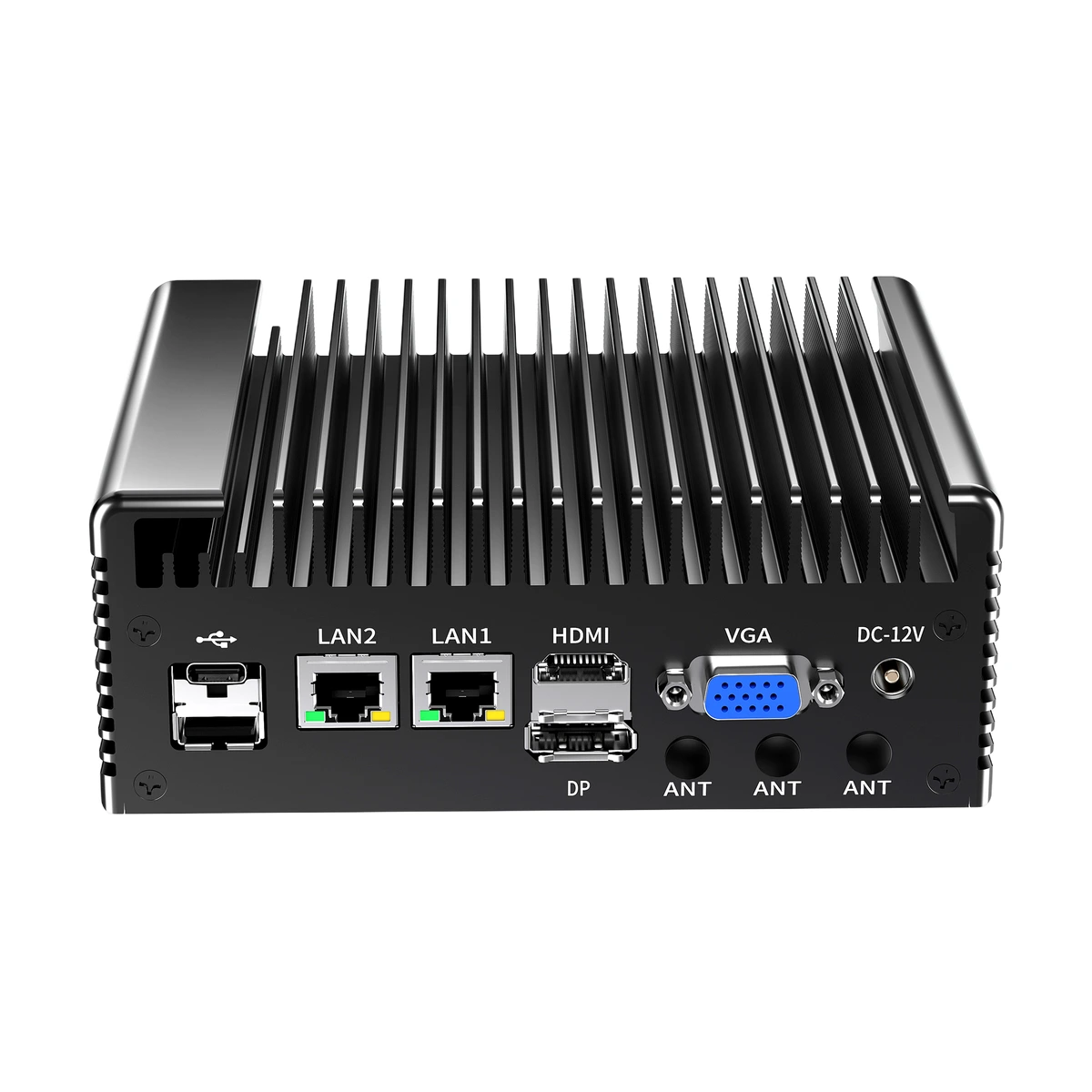

MCIPCB14 rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB14 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCIPCB14
CPU
Intel Alder Lake-N N100 / i3-N305
BIOS
AMI 128M BIOS (Winbond 25Q128JVSQ); Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR5 4800 MHz, max 32 GB
Graphics
Intel UHD Graphics
HDMI
1 x HDMI2.0, max 4K 60 Hz
DP
1 x DP1.4, max 4K 60 Hz
VGA
1 x VGA, max 1080P 60 Hz (optional DP/HDMI, RTD2166 solution)
USB Type-C
1 x USB Type-C, max 4K 60 Hz
SATA
1 x SATA3.0 6 Gb/s
Storage - M.2 SSD
1 x M.2 SSD 2280 (NGFF/PCIe auto-switching)
Network
2 x RTL8111H (LAN1 can be changed to a pin header; LAN2 can be changed to 2 x USB, FE1 solution)
USB
External: 3 x USB2.0 (2 can be changed to pin headers); 2 x USB3.2 Gen2; 1 x USB Type-C 3.2 Gen2
Serial
2 x COM RS232 (both support RS485)
Audio
Realtek ALC897 7.1-channel HDA codec
M.2 Key-E
M.2 Wi-Fi Key-E 2230 socket, PCIe protocol, supports CNVi
M.2 Key-B
M.2 5G Key-B 3052 socket, USB protocol
Mini PCIe
Supports Wi-Fi/4G, PCIe protocol
SIM
1 x Nano SIM
GPIO
Supports 8 GPIO channels
Watchdog
4~255-second watchdog timer
Fan
4-pin 12 V system fan monitoring and intelligent control
JP1
JP1(1-2) AUTO POWER ON; JP1(2-3) NORMAL
TPM
TPM2.0 hardware encryption (optional)
DC input
DC 12 V
Environment - Operating
-20~60 C / 0~90% RH, non-condensing
Environment - Storage
-20~60 C / 0~90% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 148 x 125 x 56 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB14 combines Intel N100 / i3-N305 processing, up to 32GB DDR5, and dual lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
