MCIPCB15B
Intel Celeron J6412 compact industrial PC
MCIPCB15B combines Intel Celeron J6412 processing, up to 32GB DDR4, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB15B
Different product views highlight the enclosure design, interface layout, and installation details.

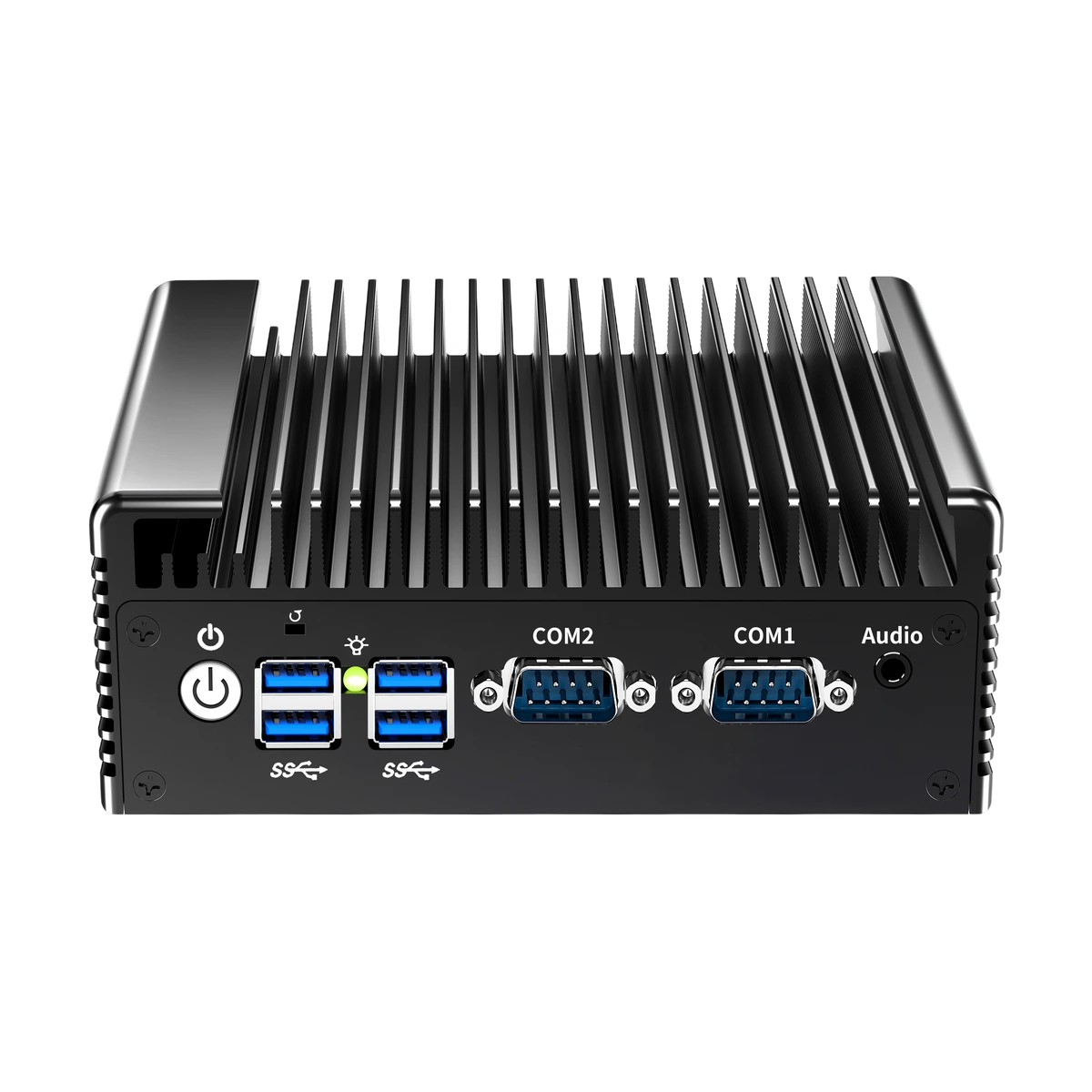

MCIPCB15B front panel

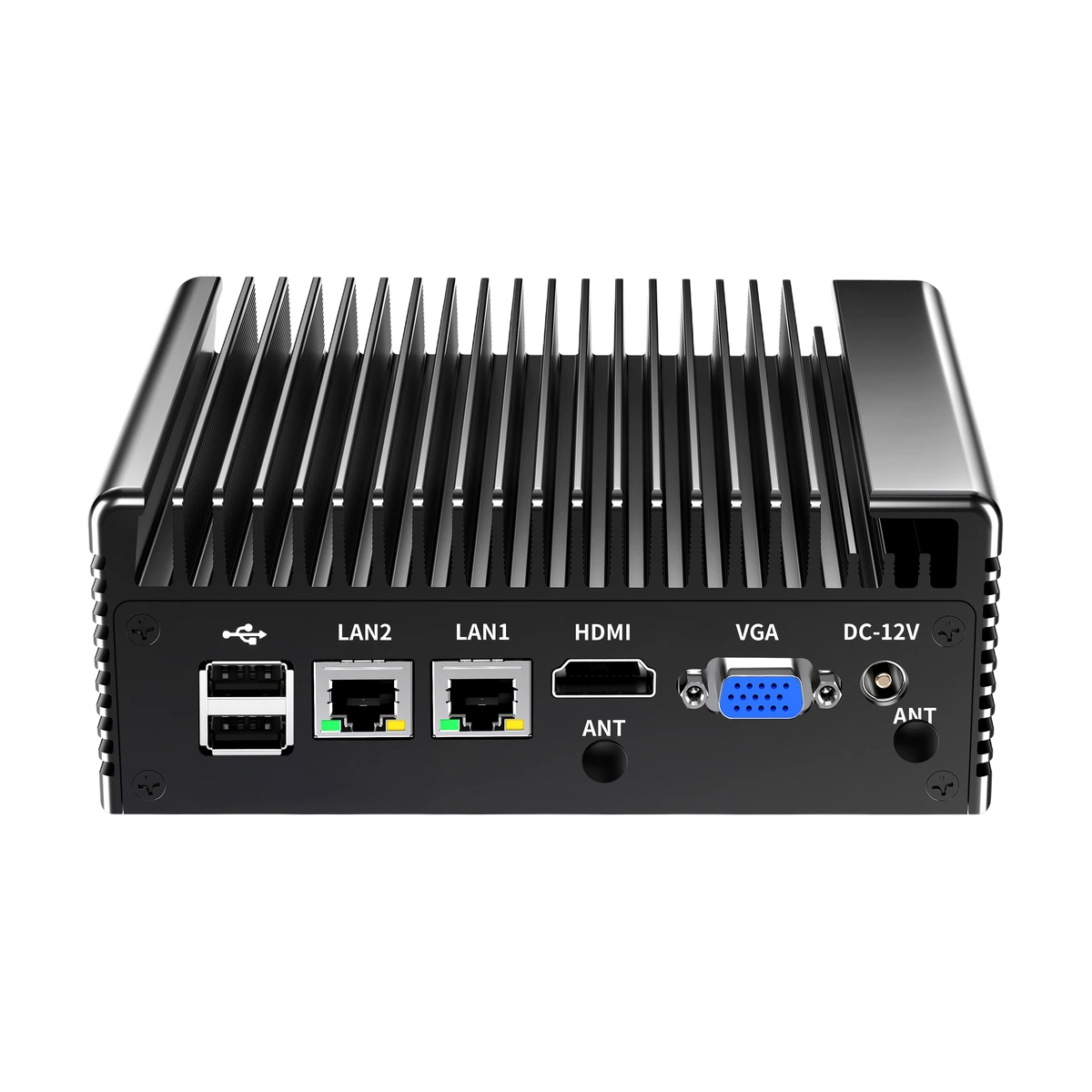

MCIPCB15B rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB15B Specification Matrix
Available hardware configurations
Operating Range
-10°C to 60°C
Model
MCIPCB15B
CPU
Intel Celeron J6412, 2.0 GHz
BIOS
128 Mb Flash ROM; Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR4 3200 MHz, max 32 GB
Graphics
Intel UHD Graphics
HDMI
1 x HDMI2.0, max 4K 60 Hz
VGA
1 x VGA, max 1080P 60 Hz
SATA
1 x SATA3.0 6 Gb/s
Storage - M.2 SSD
1 x M.2 Key-M 2280 (PCIe/SATA auto-switching)
Network
2 x RTL8111H Gigabit LAN
USB
External: 2 x USB2.0; 4 x USB3.1
Serial
2 x COM RS232 (RS485 selectable via jumper)
Audio
Realtek ALC897 7.1-channel HD audio; supports MIC/Line-out
Mini PCIe
Supports Wi-Fi/4G, PCIe protocol
SIM
1 x Nano SIM
Internal I/O - USB
1 x USB2.0 4-pin header; 1 x USB2.0 2 x 5-pin header
Watchdog
256-level watchdog with hardware reset support, 0~255 seconds
Auto power
AX-ATX(1-2) NORMAL; AX-ATX(2-3) AUTO POWER ON
DC input
DC 12 V, 5.5 x 2.5 mm jack
Environment - Operating
-10~60 C / 5~95% RH, non-condensing
Environment - Storage
-20~70 C / 5~95% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 148 x 125 x 56 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB15B combines Intel Celeron J6412 processing, up to 32GB DDR4, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
