MCIPCB15C
4th / 5th Gen Intel Core compact industrial PC
MCIPCB15C combines 4th / 5th Gen Intel Core processing, up to 8GB DDR3L, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB15C
Different product views highlight the enclosure design, interface layout, and installation details.

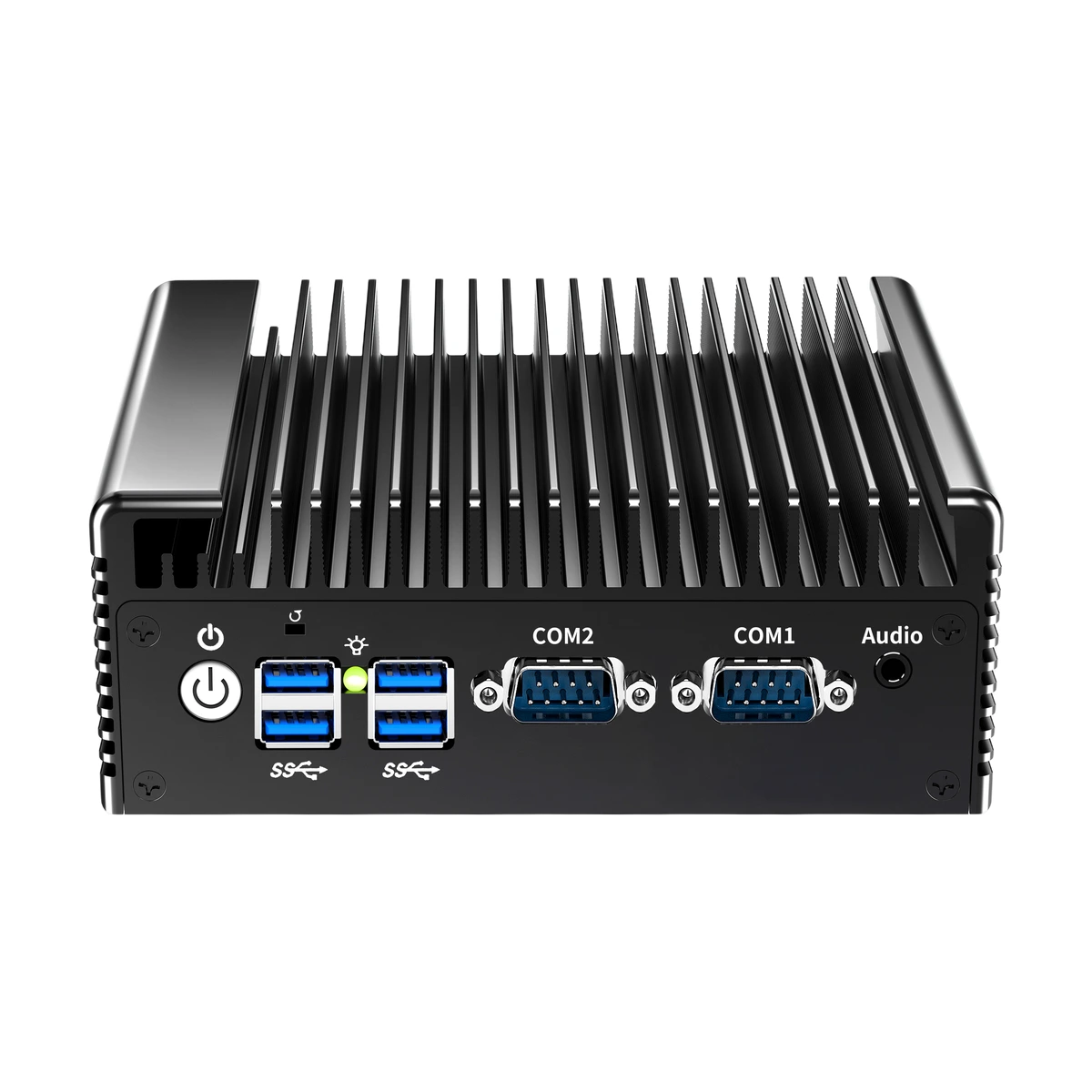

MCIPCB15C front panel

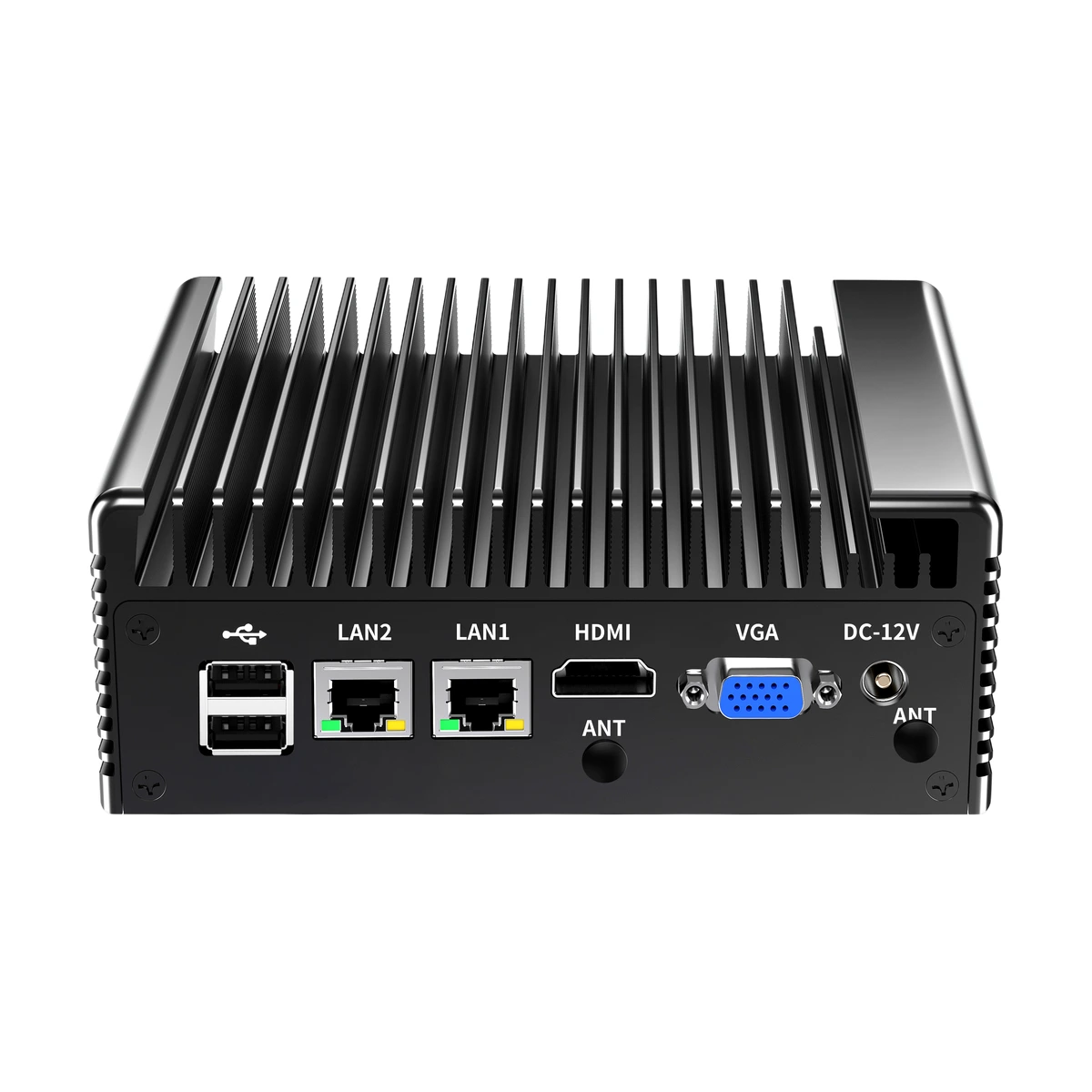

MCIPCB15C rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB15C Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCIPCB15C
CPU
Intel Core i3/i5/i7, 4th/5th Gen
BIOS
AMI 64M BIOS; Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR3L 1333 MHz, max 8 GB
Graphics
Intel HD Graphics 4400
HDMI
1 x HDMI1.4, max 2K 60 Hz (4K 30 Hz)
VGA
1 x VGA, max 1080P 60 Hz
SATA
1 x SATA3.0 6 Gb/s
mSATA
1 x mSATA3.0
Network
2 x Realtek RTL8111H Gigabit LAN (LAN2 can be changed to 2 x USB2.0)
USB
External: 2 x USB2.0; 4 x USB3.0
Serial
2 x COM RS232 (RS485 selectable via jumper)
Audio
Realtek ALC897 7.1-channel HDA codec
Mini PCIe
Supports Wi-Fi/4G, PCIe protocol
SIM
1 x Nano SIM
GPIO
Supports 8 GPIO channels
Watchdog
256-level watchdog with hardware reset support, 0~255 seconds
Auto power
AX-ATX(1-2) NORMAL; AX-ATX(2-3) AUTO POWER ON
DC input
DC 12 V, 5.5 x 2.5 mm jack
Environment - Operating
-20~60 C / 5~95% RH, non-condensing
Environment - Storage
-20~70 C / 5~95% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 148 x 125 x 56 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB15C combines 4th / 5th Gen Intel Core processing, up to 8GB DDR3L, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
