MCIPCB15D
6th-8th Gen Intel Core compact industrial PC
MCIPCB15D combines 6th-8th Gen Intel Core processing, up to 32GB DDR4, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB15D
Different product views highlight the enclosure design, interface layout, and installation details.

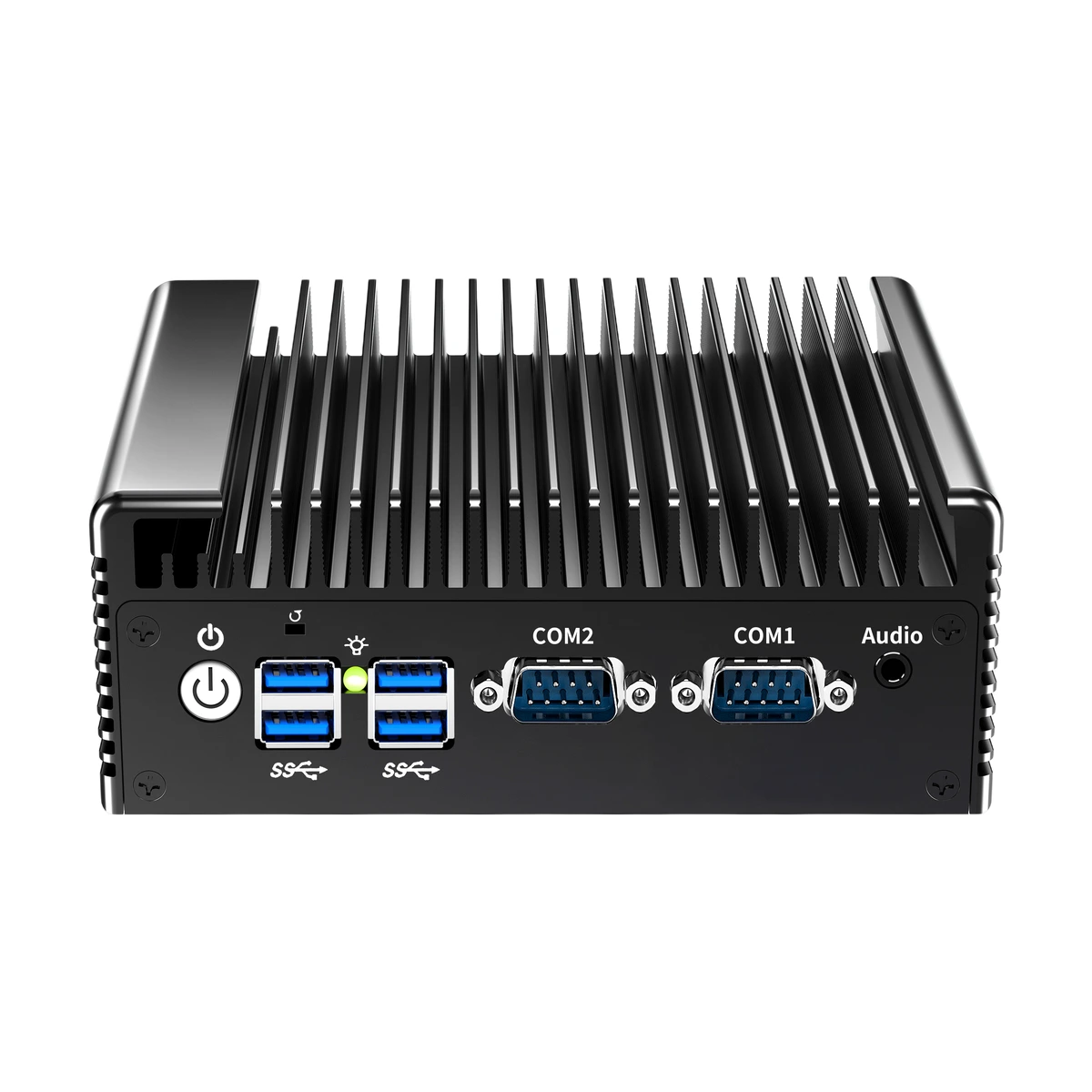

MCIPCB15D front panel

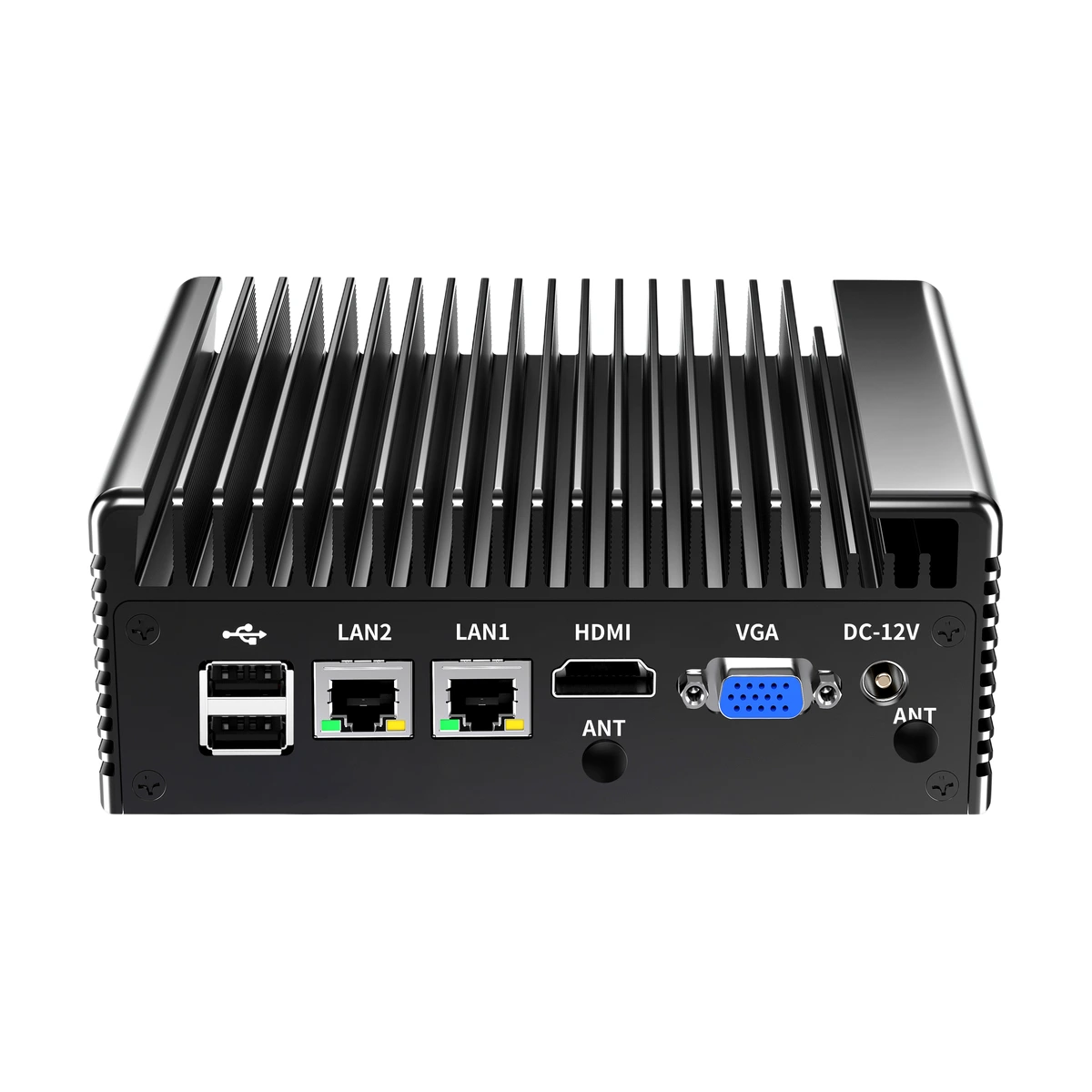

MCIPCB15D rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB15D Specification Matrix
Available hardware configurations
Operating Range
-10°C to 60°C
Model
MCIPCB15D
CPU
Intel Core, 6th/7th/8th Gen
BIOS
AMI EFI BIOS; Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR4 2133 MHz, max 32 GB
Graphics
Intel HD Graphics
HDMI
1 x HDMI1.4, max 4K 30 Hz (2K 60 Hz)
VGA / DP
1 x VGA, max 1080P 60 Hz / DP, max 4K 60 Hz
SATA
1 x SATA3.0 6 Gb/s
Storage - M.2 SSD
1 x M.2 Key-M 2280 (PCIe/SATA auto-switching)
Network
2 x Realtek RTL8111H Gigabit LAN
USB
External: 2 x USB2.0; 4 x USB3.0
Serial
2 x COM RS232 (RS485 selectable via jumper); expandable COM3/COM4 2.0 mm pin headers
Audio
Realtek ALC897 7.1-channel HDA codec
Mini PCIe
Supports Wi-Fi/4G, PCIe protocol
SIM
1 x Nano SIM
GPIO
1 x 2 x 5-pin GPIO header, 2.0 mm pitch
TPM
1 x TPM2.0 2 x 7-pin header
Auto power
AX-ATX(1-2) NORMAL; AX-ATX(2-3) AUTO POWER ON
DC input
DC 12 V, 5.5 x 2.5 mm jack
Environment - Operating
-10~60 C / 5~95% RH, non-condensing
Environment - Storage
-20~70 C / 5~95% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 148 x 125 x 56 mm
