MCIPCB15E
12th Gen Intel Core compact industrial PC
MCIPCB15E combines 12th Gen Intel Core processing, up to 32GB DDR4, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB15E
Different product views highlight the enclosure design, interface layout, and installation details.

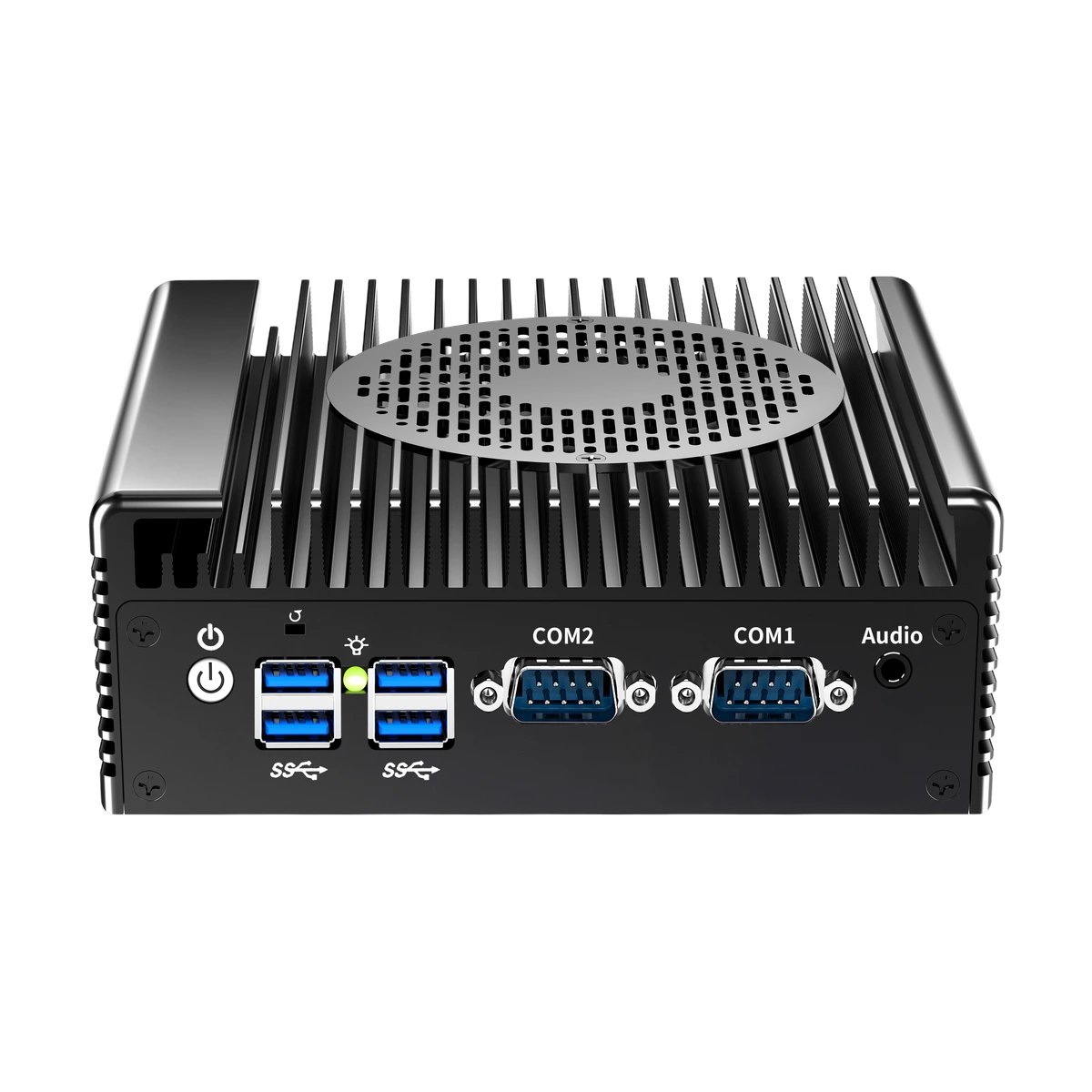

MCIPCB15E front panel

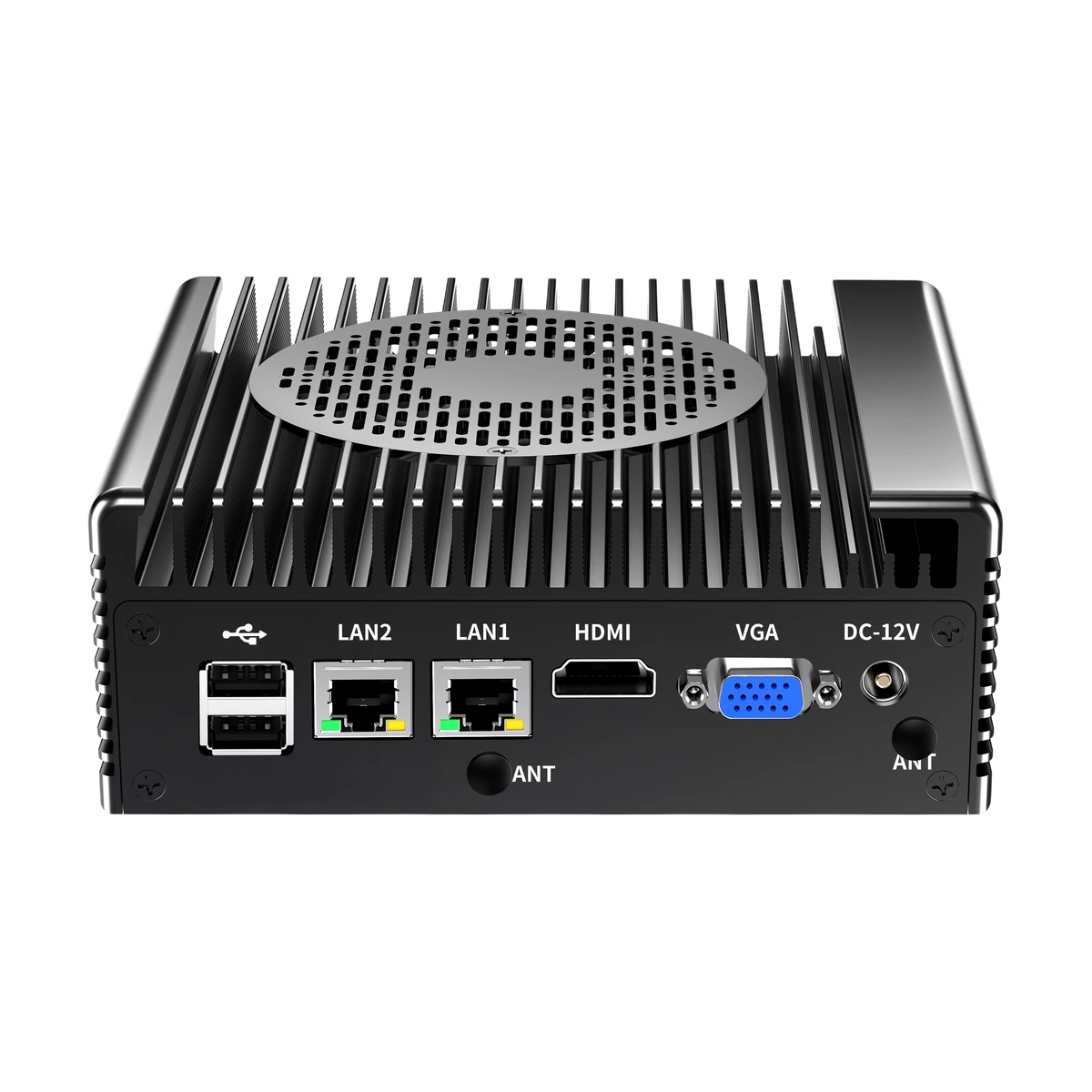

MCIPCB15E rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB15E Specification Matrix
Available hardware configurations
Operating Range
-10°C to 60°C
Model
MCIPCB15E
CPU
Intel Alder Lake-U/P/H 12th Gen Core i3/i5/i7
BIOS
AMI EFI BIOS; Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR4 3200 MHz, max 32 GB
Graphics
Intel UHD Graphics
HDMI
1 x HDMI2.0, max 4K 60 Hz
VGA
1 x VGA, max 1080P 60 Hz
SATA
1 x SATA3.0 6 Gb/s
Storage - M.2 SSD
1 x M.2 Key-M 2280 (PCIe/SATA auto-switching)
Network
2 x Realtek RTL8111H Gigabit LAN
USB
External: 2 x USB2.0; 4 x USB3.2 Gen1
Serial
2 x COM RS232 (RS485 selectable via jumper)
Audio
Realtek ALC897 7.1-channel HD audio; supports MIC/Line-out
Mini PCIe
Supports Wi-Fi/4G, PCIe protocol
SIM
1 x Nano SIM
GPIO
Supports 8 GPIO channels
Internal I/O - USB
1 x USB2.0 4-pin header, expandable to 2 x USB2.0
Watchdog
Watchdog timer
Fan
4-pin 12 V CPU fan
TPM
1 x TPM2.0 2 x 6-pin header; onboard TPM footprint reserved
Auto power
AUTO ON(1-2) NORMAL; AUTO ON(2-3) AUTO POWER ON
DC input
DC 12-19 V, 5.5 x 2.5 mm jack; onboard ATX 1 x 4-pin power connector
Environment - Operating
-10~60 C / 0~95% RH, non-condensing
Environment - Storage
-20~70 C / 0~95% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 148 x 125 x 56 mm
