MCIPCB16A
Intel J1900 / N2840 compact industrial PC
MCIPCB16A combines Intel J1900 / N2840 processing, up to 8GB DDR3L, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB16A
Different product views highlight the enclosure design, interface layout, and installation details.

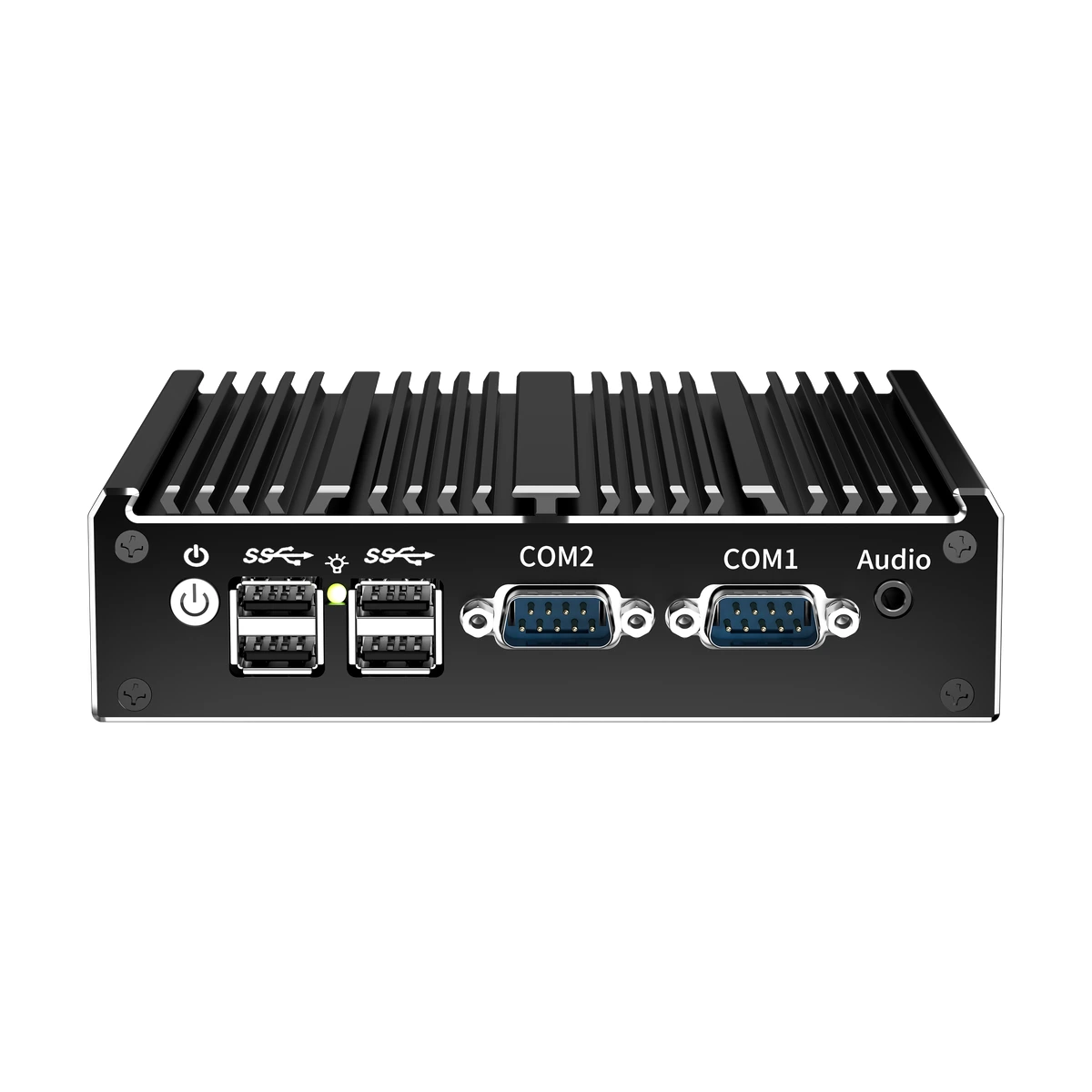

MCIPCB16A front panel

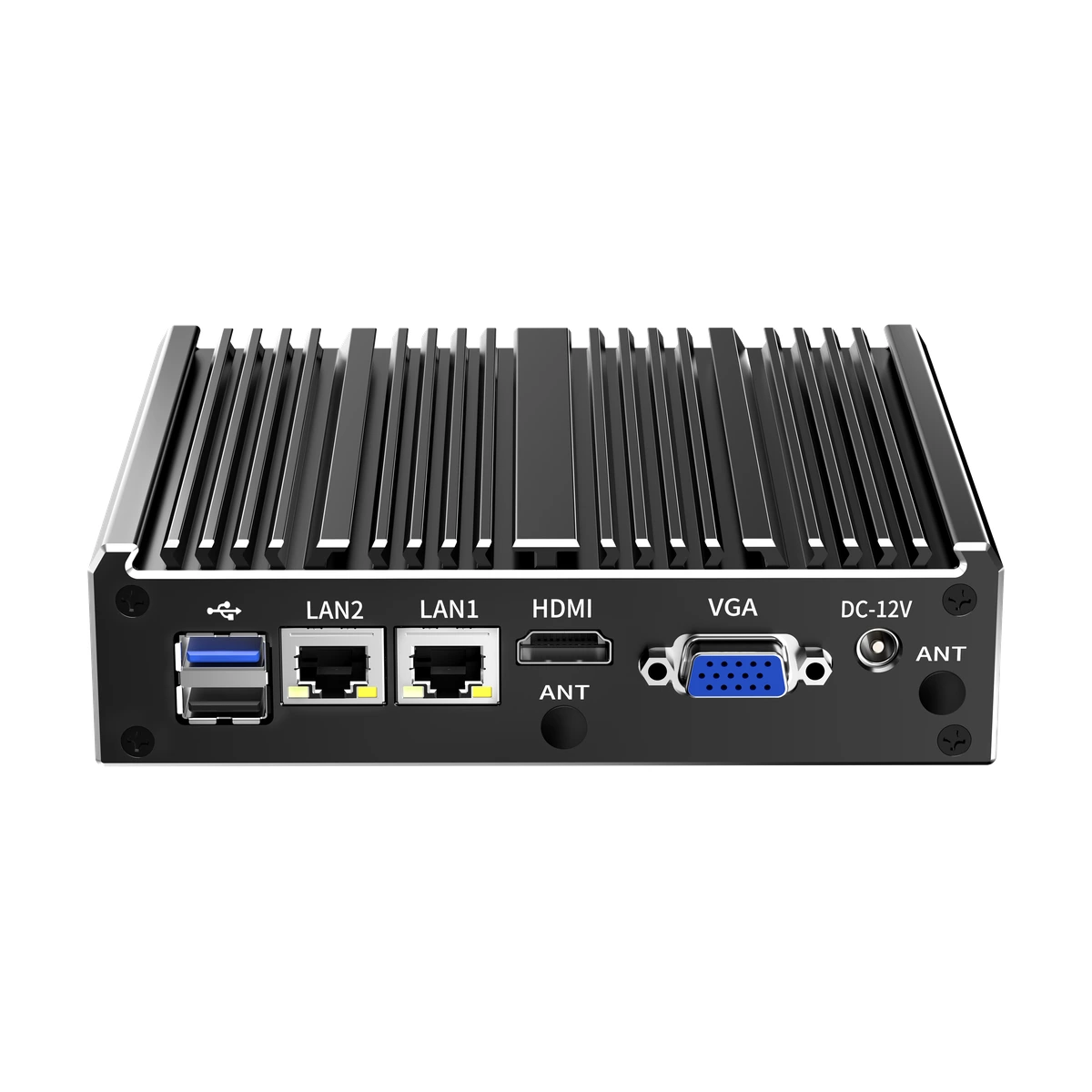

MCIPCB16A rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB16A Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCIPCB16A
CPU
Intel Bay Trail Celeron J1900 / N2840
BIOS
AMI 64M BIOS (Winbond 25Q64JWSIQ); Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR3L 1333 MHz, max 8 GB
Graphics
Intel HD Graphics
HDMI
1 x HDMI1.2, max 1080P 60 Hz
VGA
1 x VGA, max 1080P 60 Hz (optional HDMI)
SATA
1 x SATA2.0 3 Gb/s
mSATA
1 x mSATA2.0 3 Gb/s (optional Mini PCIe)
Network
2 x RTL8111H Gigabit LAN
USB
External: 5 x USB2.0 (can be changed to pin headers, FE1 solution); 1 x USB3.0; internal: 1 x USB2.0 shared with 4G
Serial
2 x COM RS232 (both support RS485, internal headers); expandable COM3/COM4 2.0 mm pin headers
Audio
Realtek ALC897 7.1-channel HDA codec
Mini PCIe
Supports Wi-Fi/4G, PCIe protocol
SIM
1 x Nano SIM
GPIO
Supports 8 GPIO channels
Watchdog
Watchdog timer
Auto power
AX-ATX(1-2) NORMAL; AX-ATX(2-3) AUTO POWER ON
DC input
DC 12 V, 5.5 x 2.5 mm jack
Environment - Operating
-20~60 C / 5~95% RH, non-condensing
Environment - Storage
-20~70 C / 5~95% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 145 x 127 x 38 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB16A combines Intel J1900 / N2840 processing, up to 8GB DDR3L, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
