MCIPCB1A
Intel N100 / N150 compact industrial PC
MCIPCB1A combines Intel N100 / N150 processing, up to 32GB DDR4, and dual intel i226-v lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB1A
Different product views highlight the enclosure design, interface layout, and installation details.

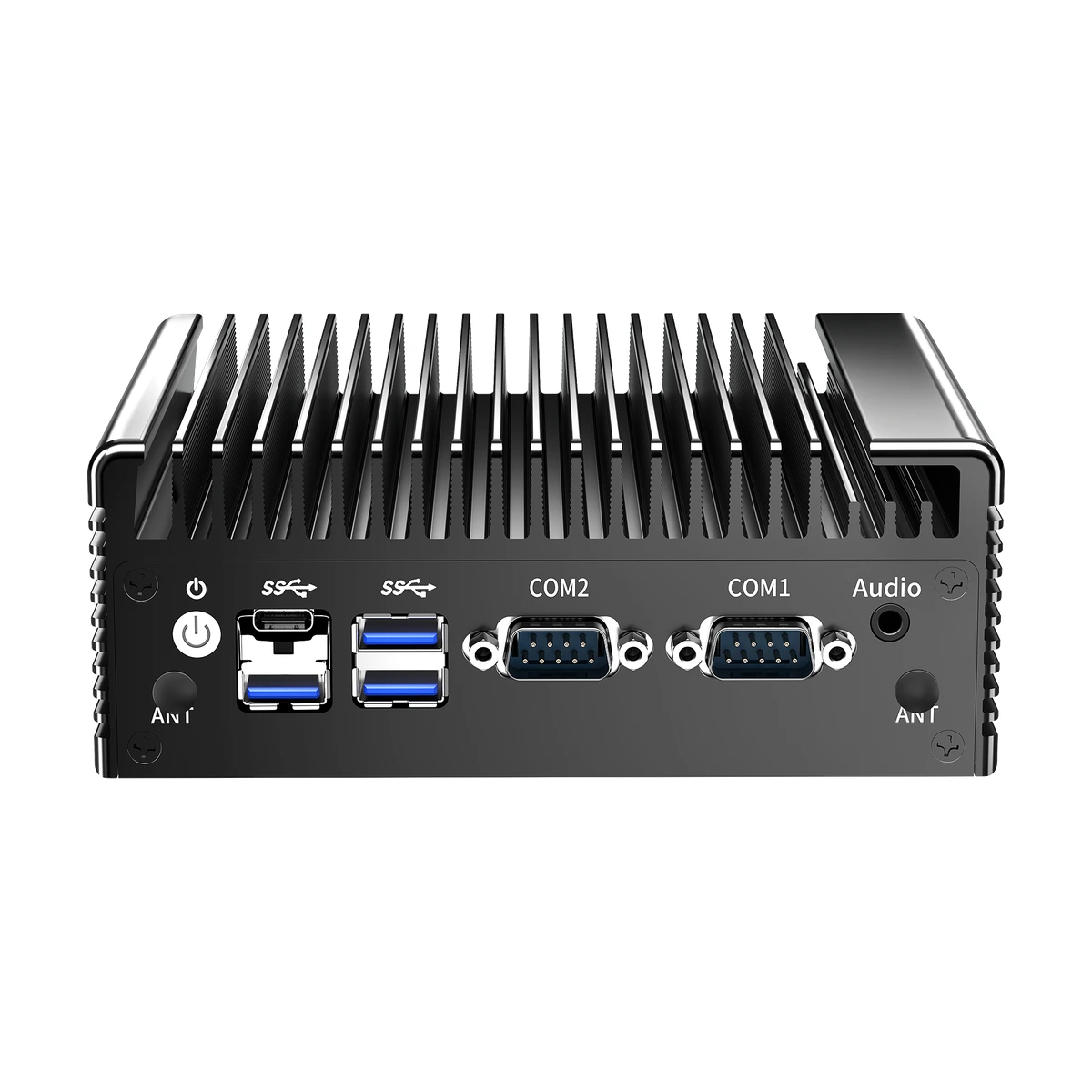

MCIPCB1A front panel

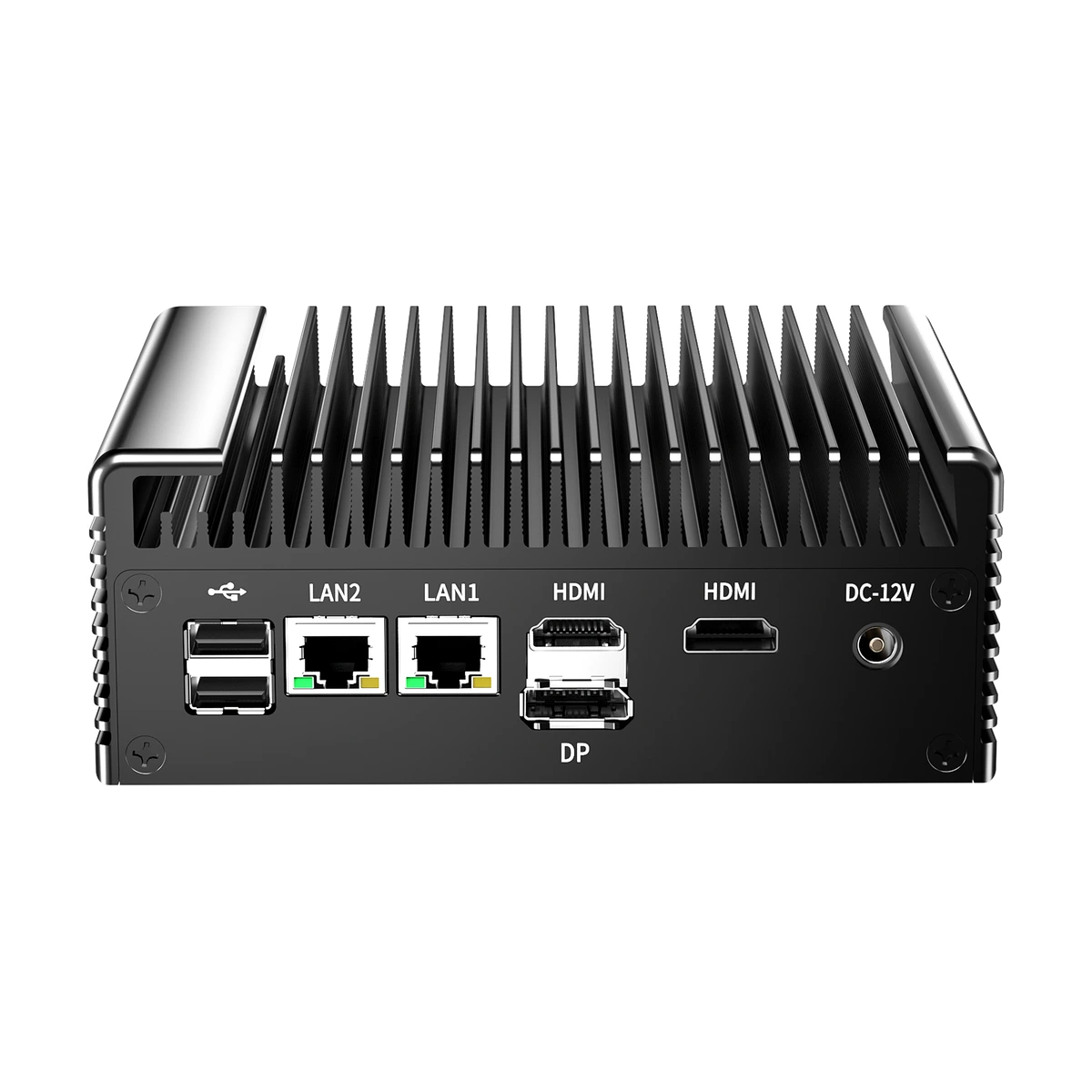

MCIPCB1A rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB1A Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MCIPCB1A
CPU
Intel Alder Lake-N N100/N150
BIOS
AMI 128M BIOS (Winbond 25Q128JVSQ); Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR4 3200 MHz, max 32 GB
Graphics
Intel UHD Graphics
HDMI
2 x HDMI1.4, max 4K 60 Hz
DP
1 x DP1.4, max 4K 60 Hz
SATA
1 x SATA3.0 6 Gb/s
Storage - M.2 SSD
1 x M.2 SSD 2280 (NGFF/PCIe x2 auto-switching)
Network
2 x Intel I226-V (LAN1 can be changed to 2 x USB)
USB
2 x USB2.0; 2 x USB3.0; 1 x USB3.2 Gen1 next to the heatsink fins; 1 x USB Type-C 3.0 (no touch function)
Serial
2 x COM RS232 (both support RS485 via jumper settings)
Audio
Realtek ALC897 7.1-channel HDA codec
M.2 Key-E
M.2 Wi-Fi Key-E 2230 socket, PCIe protocol, supports CNVi
Mini PCIe
Supports USB Wi-Fi/4G via USB protocol; optional PCIe protocol shared with M.2 Wi-Fi
SIM
1 x Mini SIM, compatible with Nano SIM
Watchdog
Watchdog timer
Fan
4-pin 5 V CPU fan monitoring and intelligent control
AT-ATX
AT_ATX(1-2) AUTO POWER ON; AT_ATX(2-3) NORMAL
DC input
DC 12 V, 5.5 x 2.5 mm DC jack
Environment - Operating
0~60 C / 5~95% RH, non-condensing
Environment - Storage
-40~80 C / 5~95% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 148 x 125 x 56 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB1A combines Intel N100 / N150 processing, up to 32GB DDR4, and dual intel i226-v lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
