MCIPCB1B
6th / 7th Gen Intel Core compact industrial PC
MCIPCB1B combines 6th / 7th Gen Intel Core processing, up to 16GB DDR3L, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB1B
Different product views highlight the enclosure design, interface layout, and installation details.

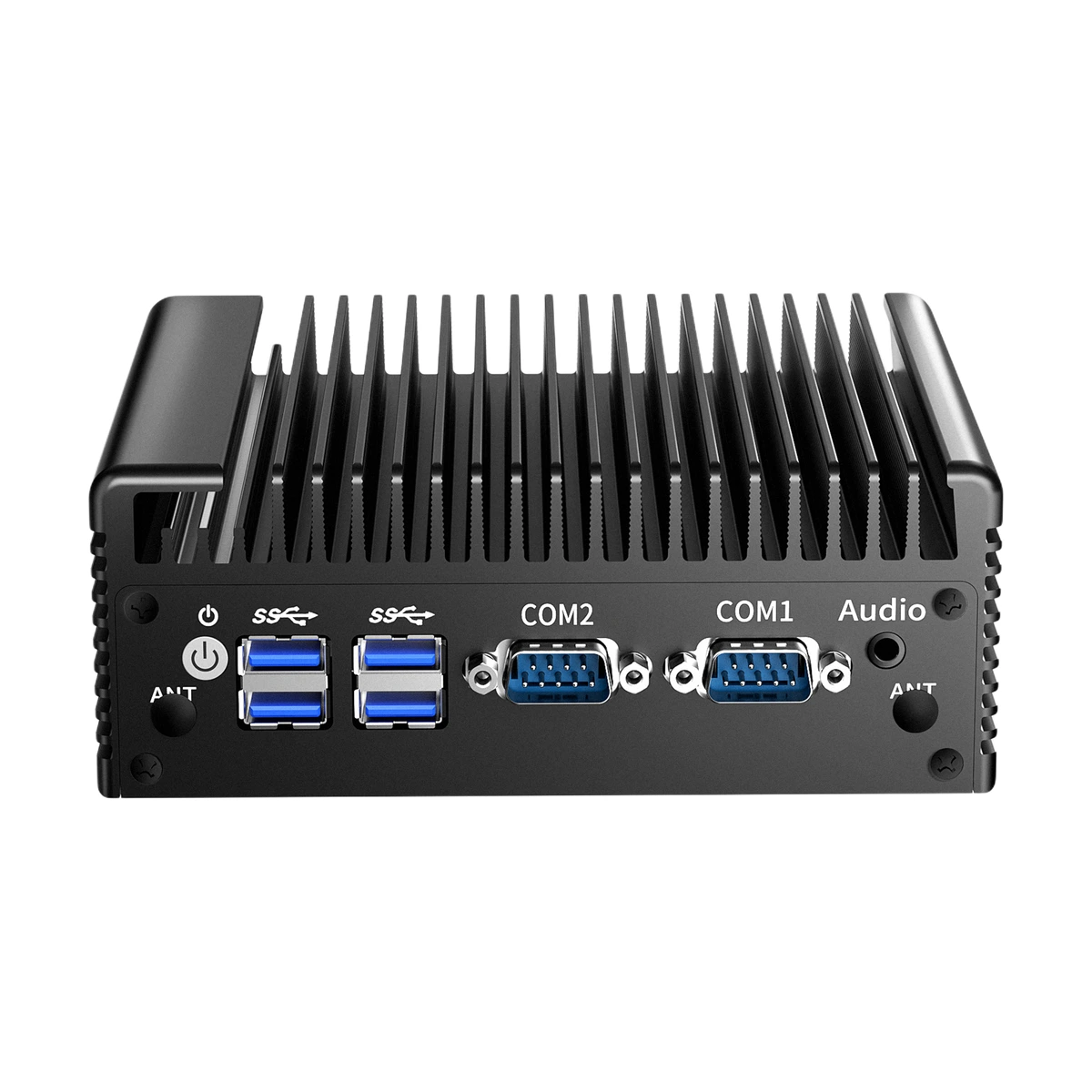

MCIPCB1B front panel

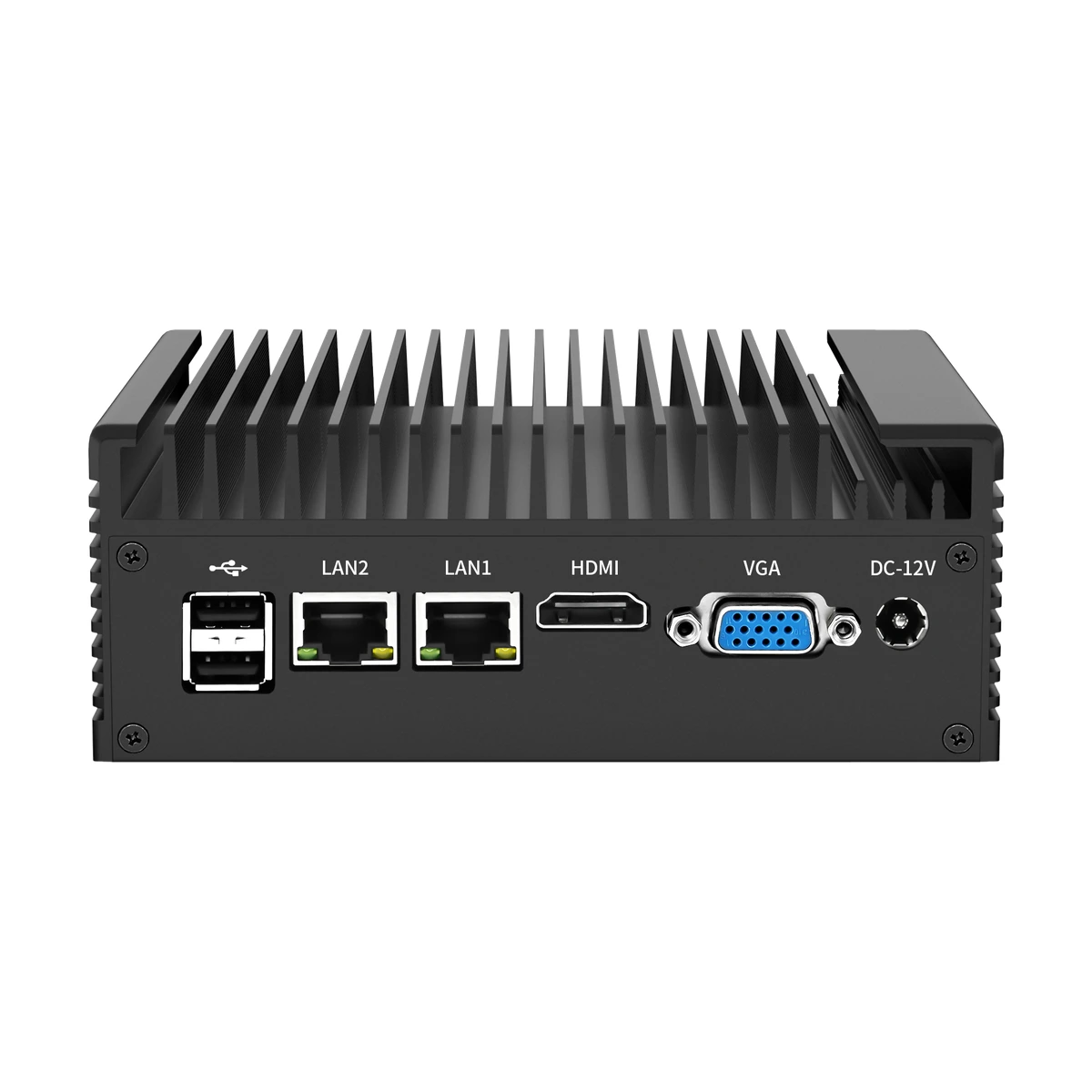

MCIPCB1B rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB1B Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MCIPCB1B
CPU
Intel Skylake-U / Kaby Lake-U Core i3/i5/i7
BIOS
AMI 128M BIOS (Winbond 25Q64JVSIQ); Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR3L 1600 MHz, max 16 GB
Graphics
Intel HD Graphics 520 / Intel HD Graphics 620
HDMI
1 x HDMI1.4, max 4K 30 Hz
eDP
1 x eDP pin header (2 x 15-pin, 2.0 mm), max 1080P 60 Hz
VGA
1 x VGA, max 1080P 60 Hz (optional HDMI, CS5212 solution)
SATA
1 x SATA3.0 6 Gb/s
Storage - M.2 SSD
1 x M.2 SSD 2280 (NGFF/PCIe x2 auto-switching)
Network
2 x RTL8111H Gigabit LAN (optional RTL8106E; LAN1 can be changed to 2 x USB)
USB
External: 4 x USB3.0; 2 x USB2.0. Internal: 2 x USB2.0 pin header (2.0 mm)
Serial
2 x COM RS232 (both support RS485)
Audio
Realtek ALC897 7.1-channel HDA codec
Mini PCIe
Supports Wi-Fi/4G, PCIe protocol
SIM
1 x Mini SIM, compatible with Nano SIM
GPIO
Supports 4 GPIO channels
Watchdog
Watchdog timer
Fan
Optional 3-pin 12 V system fan monitoring
AT-ATX
AT_ATX(1-2) AUTO POWER ON; AT_ATX(2-3) NORMAL
DC input
DC 12 V
Environment - Operating
0~60 C / 5~95% RH, non-condensing
Environment - Storage
-40~80 C / 5~95% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 148 x 125 x 56 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB1B combines 6th / 7th Gen Intel Core processing, up to 16GB DDR3L, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
