MCIPCB6
4th / 5th Gen Intel Core compact industrial PC
MCIPCB6 combines 4th / 5th Gen Intel Core processing, up to 16GB DDR3L, and dual gigabit lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCB6
Different product views highlight the enclosure design, interface layout, and installation details.

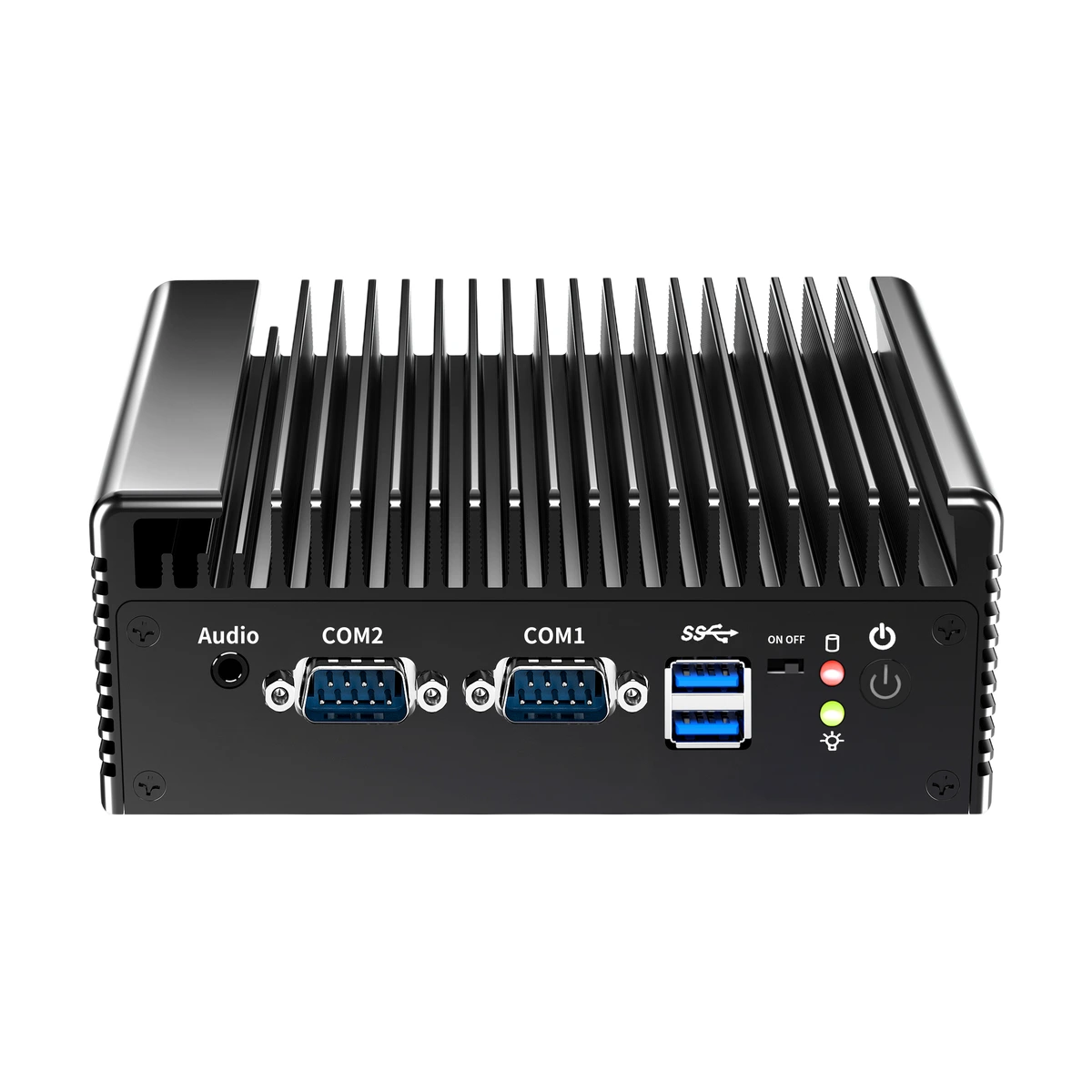

MCIPCB6 front panel

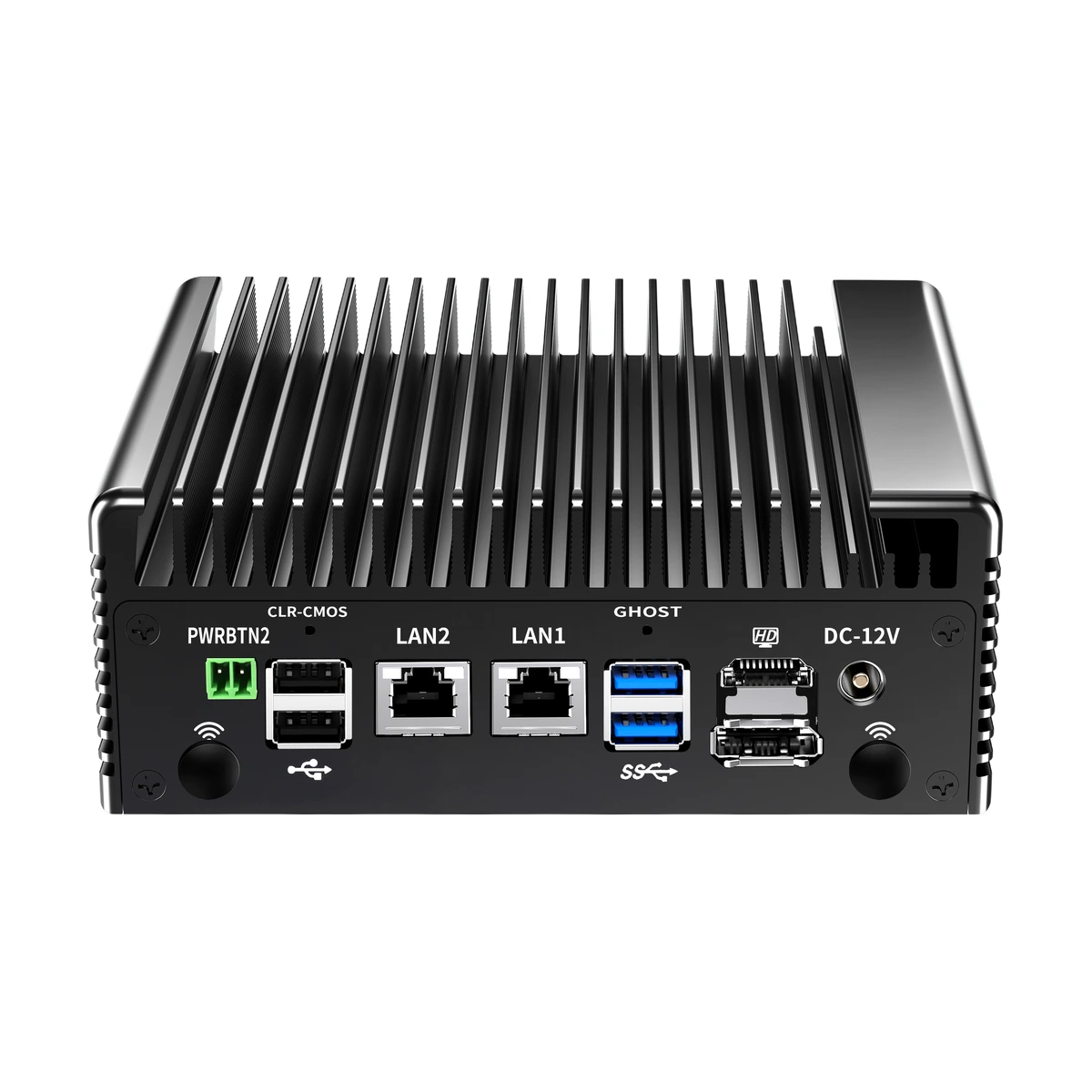

MCIPCB6 rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCB6 Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MCIPCB6
CPU
Intel Haswell Core 4th/5th Generation CPU options
BIOS
AMI EFI BIOS; Auto Power On, PXE, WOL
Memory
1 x SODIMM DDR3L 1333/1600 MHz, max 16 GB
Graphics
Intel HD Graphics 5000
HDMI
1 x HDMI1.4, 4K 30 Hz
DP
1 x DP1.1, 4K 30 Hz
SATA
1 x SATA3.0 6 Gb/s
Storage - M.2 SSD
1 x M.2 Key-M; supports 2280 PCIe/SATA auto-switching SSD
Network
2 x Realtek RTL8111H Gigabit LAN (LAN2 and 2 x USB2.0 are mutually exclusive; LAN enabled by default)
USB
4 x USB3.0; 2 x USB2.0
Serial
2 x COM RS232 (jumper supports RS485); expandable COM3-COM4 via internal pin headers
Audio
Onboard ALC897 + NS4251 (SPK1 supports 3 W @ 4 ohm; 1.7 W @ 8 ohm max)
M.2 Key-E
Supports Wi-Fi + Bluetooth, 2230 mm
M.2 Key-B
Supports 4G/5G modules, 3042/3052 mm
SIM
1 x Micro SIM
GPIO
4 inputs and 4 outputs, HGPIO
VGA
1 x VGA pin header, 1080P 60 Hz
CLR-CMOS
1 x CLR-CMOS button
Fan
4-pin 5 V fan
Auto power on
1 x SWCH_ON OFF auto power-on switch
DC input
DC 12-19 V, 5.5 x 2.5 mm; onboard 1 x 2-pin Phoenix terminal
Environment - Operating
0~60 C / 5~95% RH, non-condensing
Environment - Storage
-15~75 C / 5~95% RH, non-condensing
Dimensions
PCB Size: 120 x 120 mm; Product Size: 148 x 126 x 56 mm
