MCIPCB7
MCIPCB7 dual-LAN, dual-COM industrial computer
MCIPCB7 is an industrial computer with dual-LAN and dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery

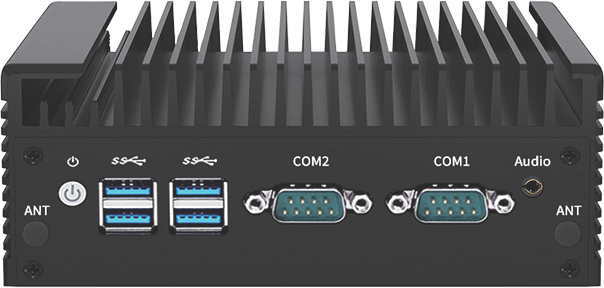

A closer look at MCIPCB7
Different product views highlight the enclosure design, interface layout, and installation details.

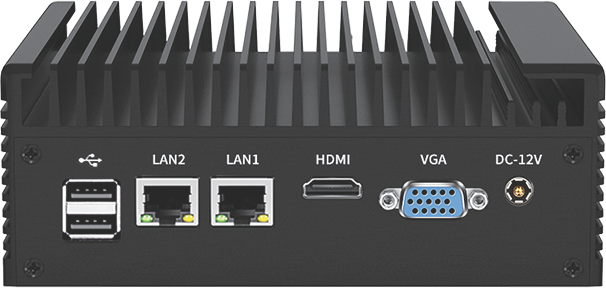

MCIPCB7 rear I/O and enclosure

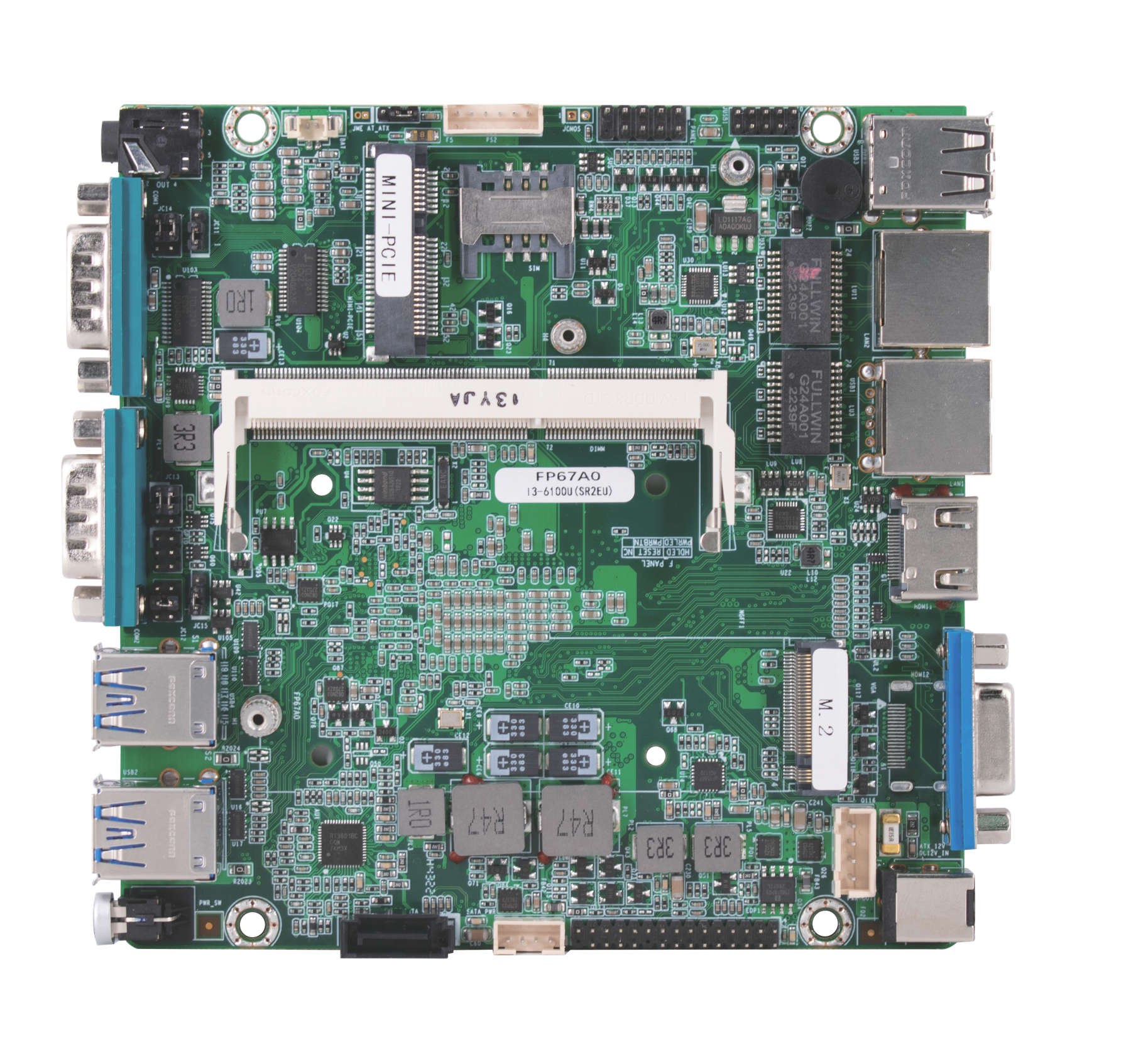

MCIPCB7 internal board layout
The motherboard is shown as a supporting engineering view, after the complete enclosure views.
Technical Specifications
Industrial-grade configuration details
MCIPCB7 Specification Matrix
Available hardware configurations
Operating Range
0~60℃;5%~95% Relative humidity,
Model
MCIPCB7
Series
B Series
CPU
Intel Sky Lake-U Kaby Lake-U Core i3 i5 i7
Display
1 x EDP;1 x HDMI; 1 x VGA
Memory
DDR3L 1600MHz Max 8GB
USB
4 x USB3.0; 2 x USB 2.0; 2 x USB 2.0 Pin Head
Network
2 x Realtek ECI-E RTL8106E/RTL8111H Gigabit LAN card
Serial
2 x COM(RS232/RS485)
Storage
1 x SATA 3.0 ，1 x M.2(Key-M, 2280, PCIe x2 NVMe/ SATA, SSD)
Power
DC-12V (55 x 25)
Operating Environment
0~60℃;5%~95% Relative humidity,
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB7 is an industrial computer with dual-LAN and dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
Interested in MCIPCB7?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
