MCIPCB8
MCIPCB8 dual-LAN, dual-COM industrial computer
MCIPCB8 is an industrial computer with dual-LAN and dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery
A closer look at MCIPCB8
Different product views highlight the enclosure design, interface layout, and installation details.

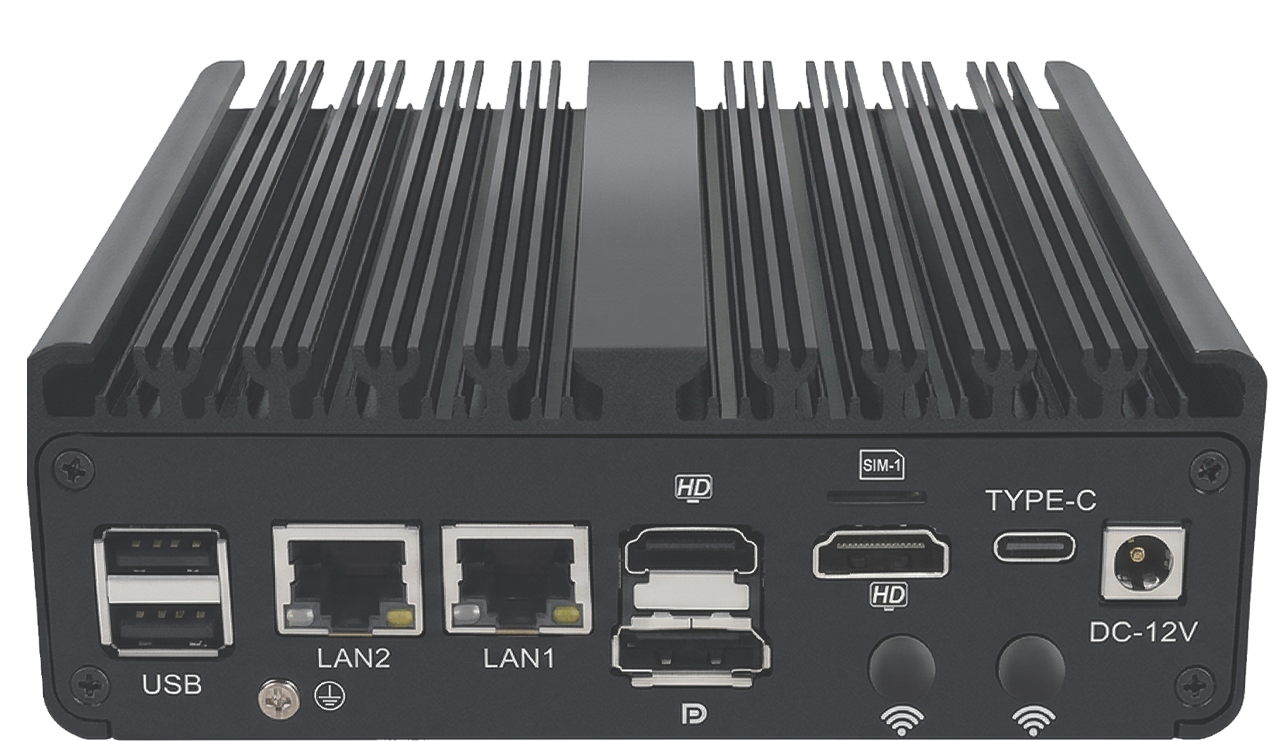

MCIPCB8 rear I/O and enclosure

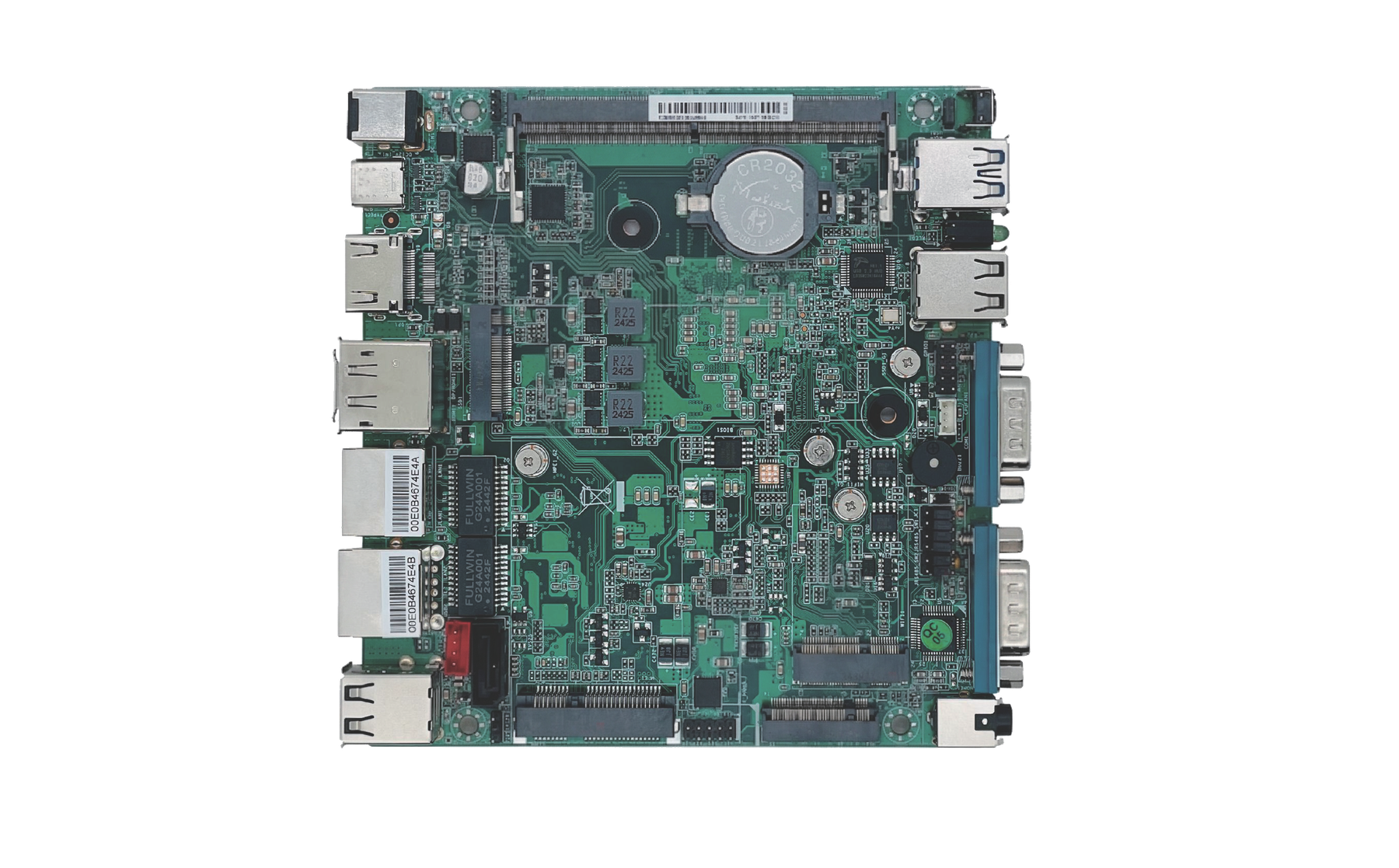

MCIPCB8 internal board layout
The motherboard is shown as a supporting engineering view, after the complete enclosure views.
Technical Specifications
Industrial-grade configuration details
MCIPCB8 Specification Matrix
Available hardware configurations
Operating Range
Working Temperature: -10°C to 60°C
Model
MCIPCB8
Series
B Series
CPU
Intel ® Celeron N150 0.8GHz quad-core processor
Display
2 x HDMI(One single-layer HDMI support dual DP)
Memory
1 x SO-DIMM slot, single-channel 4800MHz DDR5, supports up to 16GB
USB
2 x USB 3.1, 2 x USB 2.0
Network
2 x Realtek RJ45 LAN ports
Serial
2 x DB9 RS232 serial ports
Storage
1 x M.2 Key-M Slot for SSD (SSD1)
Power
DC 12V power input
Operating Environment
Working Temperature: -10°C to 60°C
Dimensions
138 x 125 x 47 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB8 is an industrial computer with dual-LAN and dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
