MCIPCB9
MCIPCB9 dual-LAN, dual-COM industrial computer
MCIPCB9 is an industrial computer with dual-LAN and dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery
A closer look at MCIPCB9
Different product views highlight the enclosure design, interface layout, and installation details.

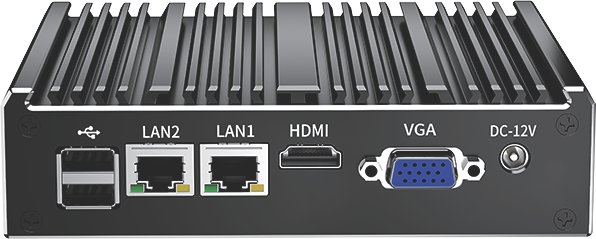

MCIPCB9 rear I/O and enclosure

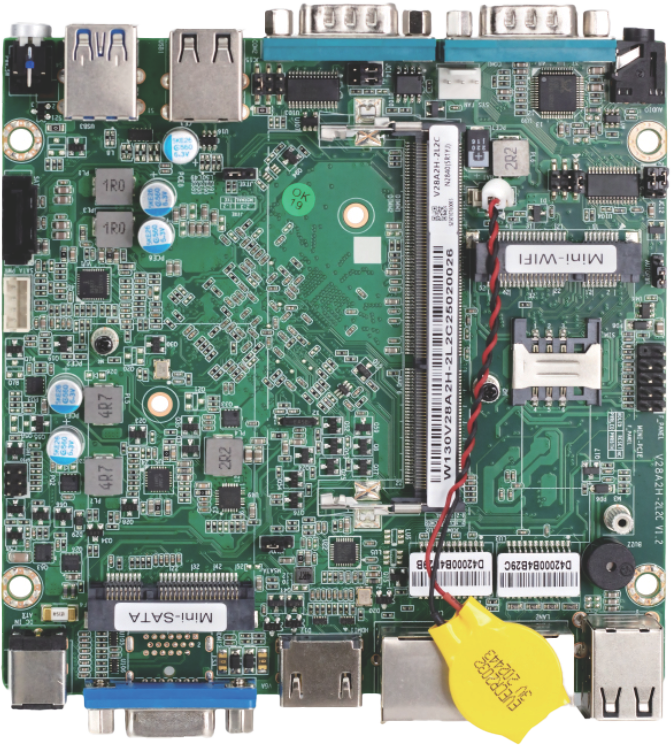

MCIPCB9 internal board layout
The motherboard is shown as a supporting engineering view, after the complete enclosure views.
Technical Specifications
Industrial-grade configuration details
MCIPCB9 Specification Matrix
Available hardware configurations
Operating Range
0~60℃;5%~95% Relative humidity,
Model
MCIPCB9
Series
B Series
CPU
Intel N2840/ N2930/J1900(2core 2.0GHz)
Display
1 x HDMI; 1 x VGA
Memory
DDR3L 1333MHz Max 8GB
USB
1 x USB3.0; 3 x USB 2.0; (N2930/J1900: 5 x USB2.0; 1 x USB 3.0)
Network
2 x Realtek ECI-E RTL8106E/RTL8111H Gigabit LAN card
Serial
2 x COM(RS232/RS485)
Power
DC-12V (55 x 25)
Operating Environment
0~60℃;5%~95% Relative humidity,
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB9 is an industrial computer with dual-LAN and dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Dual-LAN Architecture
B-series systems use dual network interfaces for connected industrial and edge deployments.
Dual-COM Connectivity
Two serial interfaces support compatible controllers, peripherals, and equipment.
Flexible Configuration
Processor, memory, storage, display, and expansion options vary by model.
Interested in MCIPCB9?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
