MCIPCD1

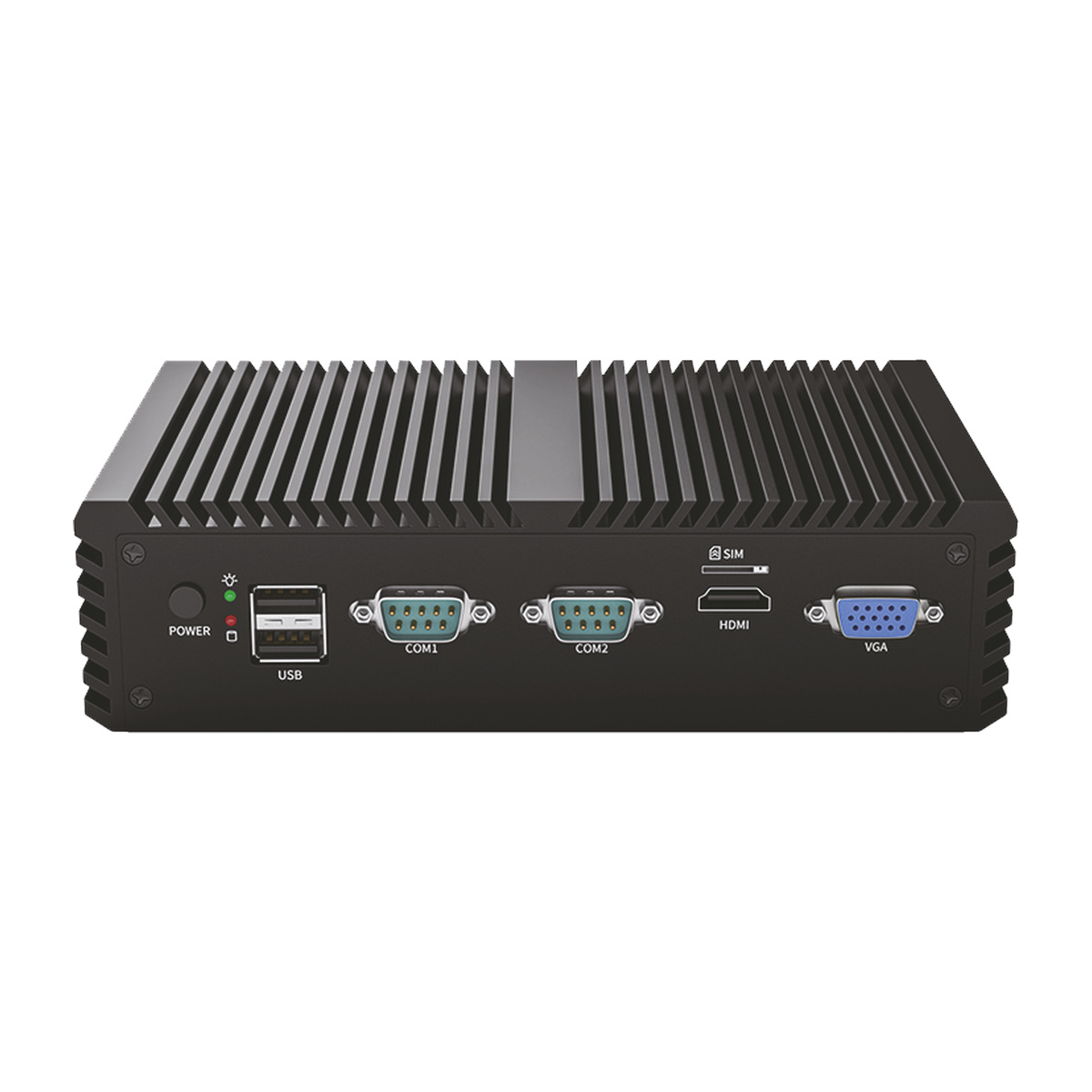

MCIPCD1 multi-LAN industrial computer with dual COM
MCIPCD1 is a multi-LAN industrial computer with dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Technical Specifications
Industrial-grade configuration details
MCIPCD1 Specification Matrix
Available hardware configurations
Operating Range
-20~50℃;5%~85% Relative humidity,
Model
MCIPCD1
Series
D Series
CPU
Intel Celeron N5095/N5105 (Select option)
Display
1 x DP
USB
2 x USB2.0; 2 x USB3.0
Network
4 x 2.5G Ethernet port
Serial
2 x DB9 COM(RS232/RS485)
Storage
1 x mSATA SSD; 1 x SATA 6.0Gb/s (Support 2.5 inch HDD/SSD)
Power
DC 12V-4A 5.5 x 2.5 (Options PoE 24V)
System
Windows10 / windows11 / Linux
Operating Environment
-20~50℃;5%~85% Relative humidity,
Dimensions
187x120x50 (mm)
Memory
1 x DDR4 SO-DIMM Memory slot, Up to 32GB 3200MHz
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCD1 is a multi-LAN industrial computer with dual-COM architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Multi-LAN Architecture
D-series systems provide multiple dedicated network interfaces for edge and gateway deployments.
Serial Equipment Support
Dual-COM architecture supports compatible serial equipment and management connections.
Edge Network Roles
Interface layouts suit segmented networks, gateways, routing, and compatible security software.
Interested in MCIPCD1?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
