MCIPCD4
Intel J4125 compact industrial PC
MCIPCD4 combines Intel J4125 processing, up to 16GB DDR4, and 4 x intel i226-v lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCD4
Different product views highlight the enclosure design, interface layout, and installation details.

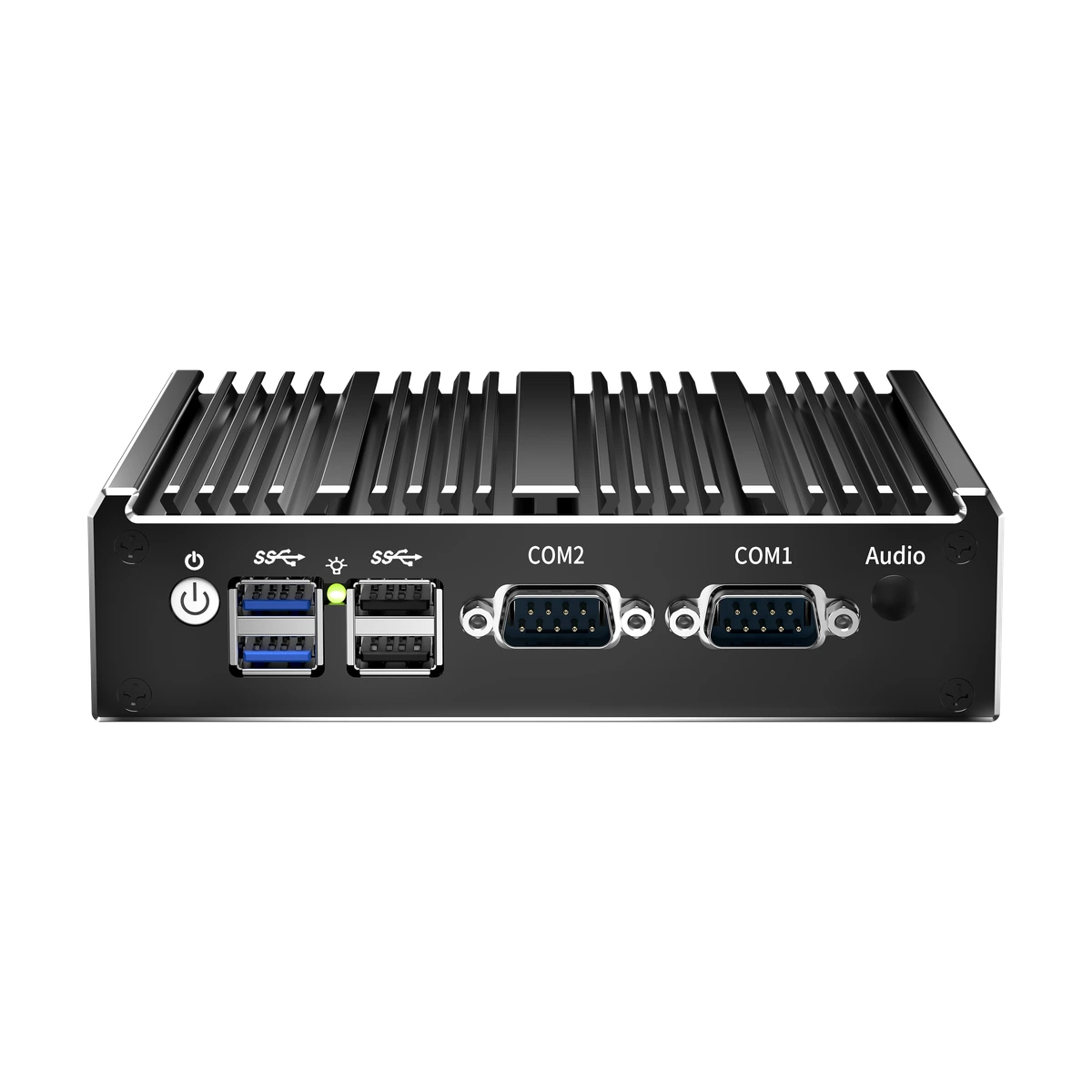

MCIPCD4 front panel

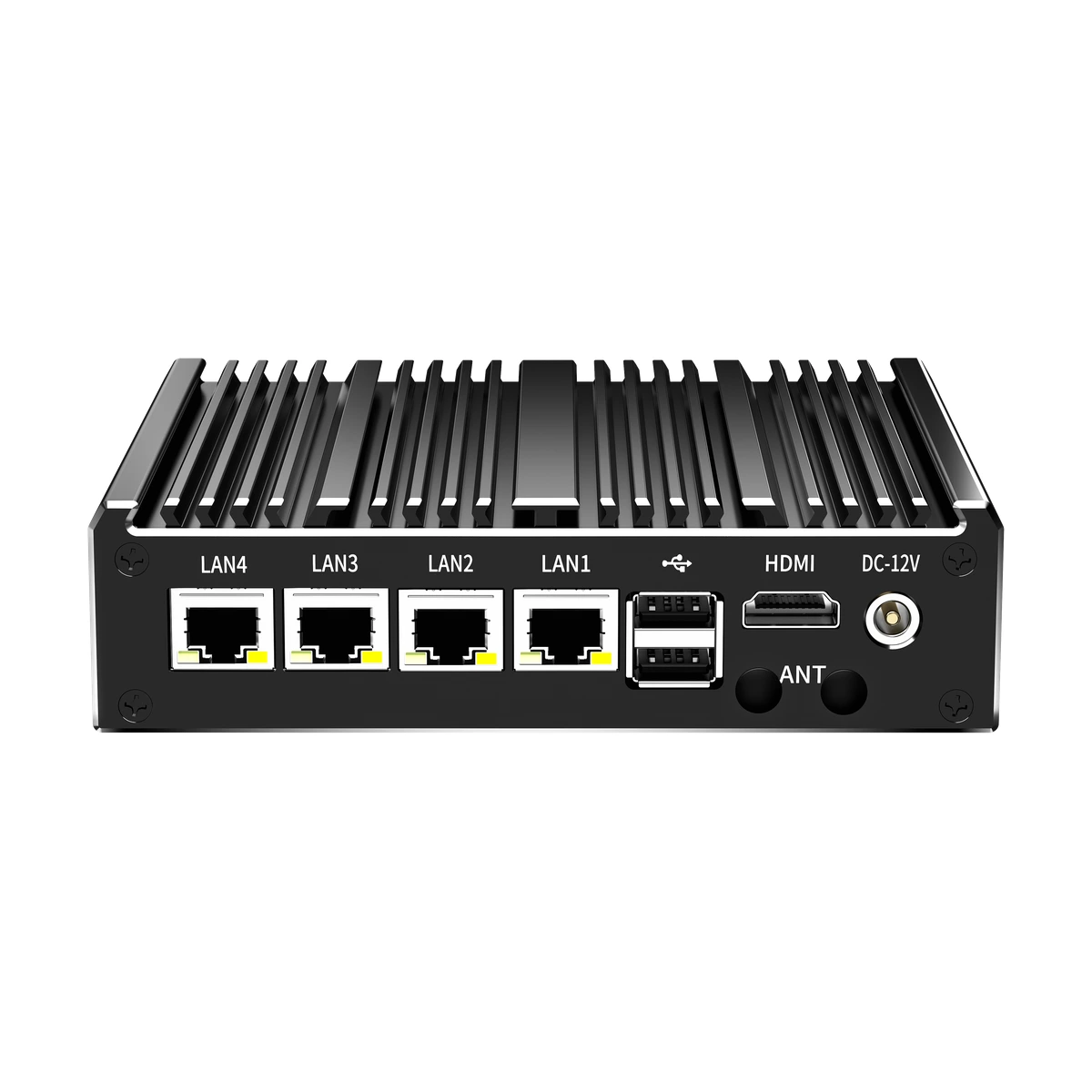

MCIPCD4 rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCD4 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCIPCD4
CPU
Intel Gemini Lake-R J4125
BIOS
AMI 64M BIOS (winbond 25Q64JWSIQ) AUTO_POWER_ON, PXE, WOL
Memory
1 x SODIMM DDR4 2400MHz Max 16G
Graphics
Intel UHD Graphics 600
Display
1 x HDMI1.4 Max 4K 30hz; 1 x DP1.2 4K 30Hz (Optional)
Storage
1 x SATA3.0 6Gb/s; 1 x MSATA3.0 6Gb/s
Network
4 x Intel I226-V
USB
External 4 x USB2.0 (Two optional PinHeader) + 2 x USB3.0 + Inside 2 x USB2.0 (One shared with 4G)
Serial
2 x COM RS232 (Hardware modification support RS485, PinHeader)
Audio
RealtekALC897 7.1-channel HD audio codec
Expansion
MPCIE: Support WIFI/4G PCIe interface; SIM: 1 x Nano SIM; GPIO: Supports 8 channels GPIO
Watchdog
Watchdog Timer
Fan
4Pin 12V System Fan Detection and intelligent control (Optional)
AX-ATX
AX-ATX(1-2)NORMAL, AX-ATX(2-3)AUTO POWER ON
DC input
DC 12V
Environment - Temperature / humidity
Operating: -20~60 C /5~95%RH, Non-condensing; Non-Operating: -20~70 C /5~95%RH, Non-condensing
Dimensions
PCB Size: 120 x 120mm; Product Size: 145 x 127 x 37mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCD4 combines Intel J4125 processing, up to 16GB DDR4, and 4 x intel i226-v lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Multi-LAN Architecture
D-series systems provide multiple dedicated network interfaces for edge and gateway deployments.
Serial Equipment Support
Dual-COM architecture supports compatible serial equipment and management connections.
Edge Network Roles
Interface layouts suit segmented networks, gateways, routing, and compatible security software.
