MCIPCD5
Intel N100 / i3-N305 compact industrial PC
MCIPCD5 combines Intel N100 / i3-N305 processing, up to 32GB DDR5, and 4 x intel i226-v lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCD5
Different product views highlight the enclosure design, interface layout, and installation details.

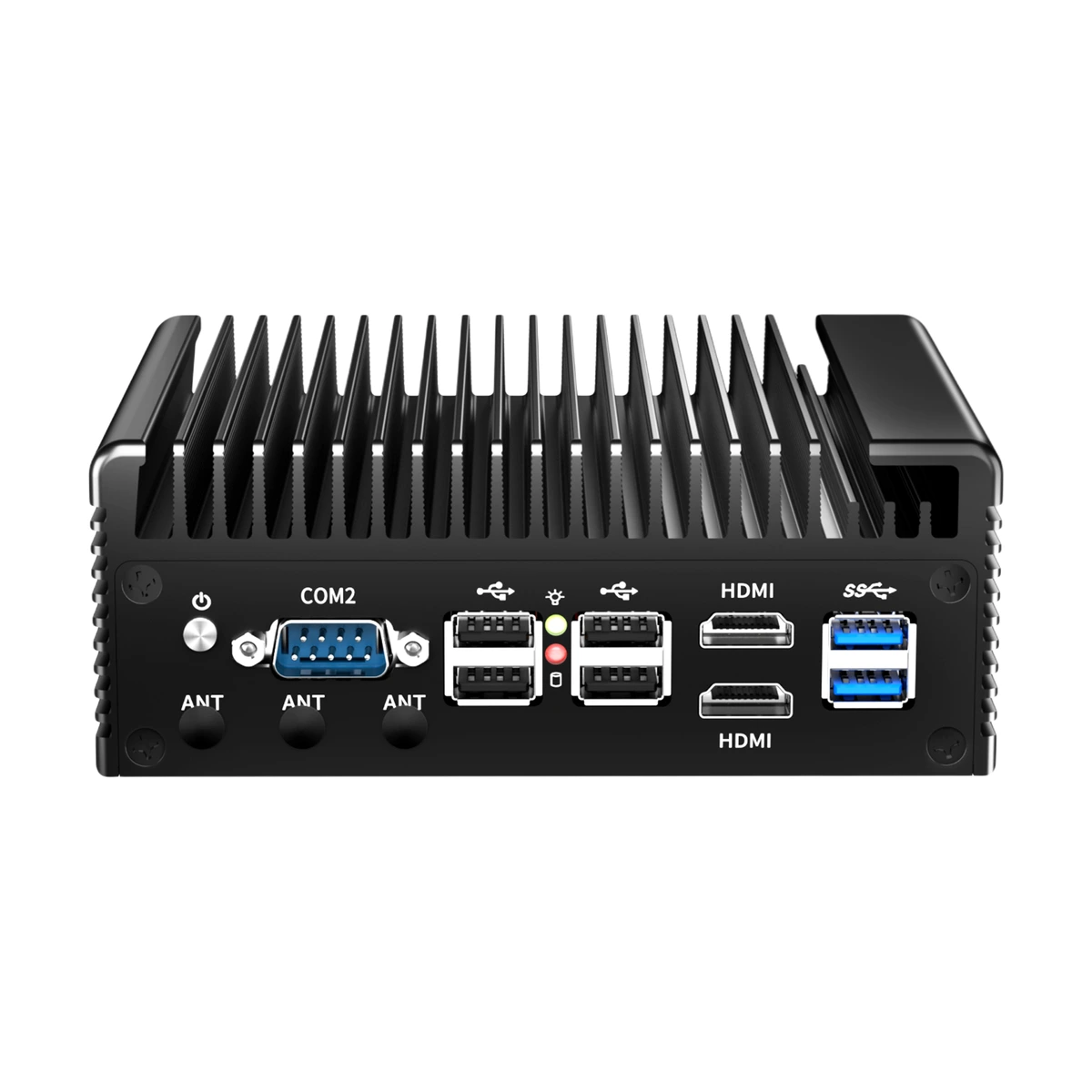

MCIPCD5 front panel

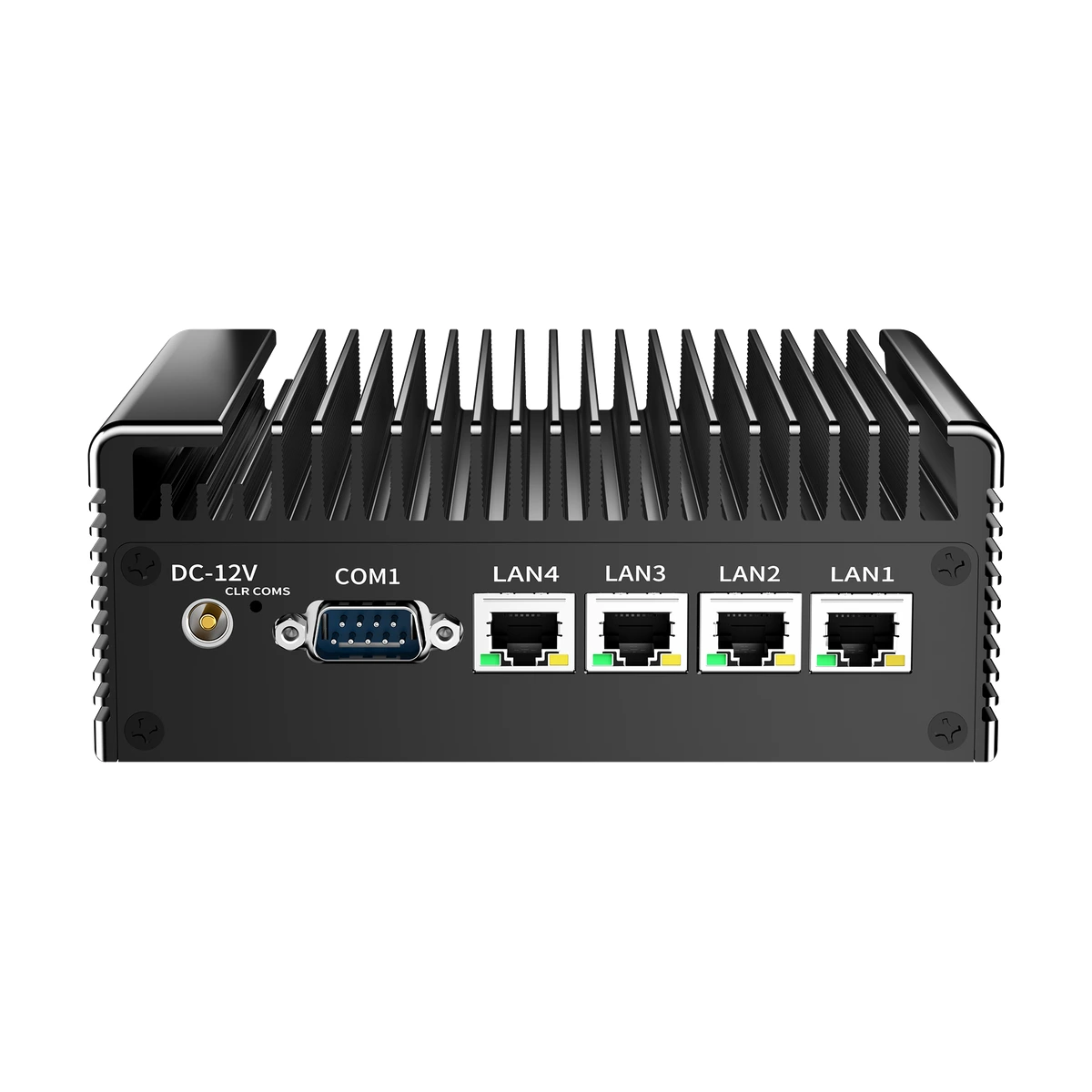

MCIPCD5 rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCD5 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCIPCD5
CPU
Intel Alder Lake-N N100/i3-N305
BIOS
AMI 128M BIOS (winbond 25Q128JVSQ) AUTO_POWER_ON, PXE, WOL
Memory
1 x SODIMM DDR5 4800MHz Max 32G
Graphics
Intel UHD Graphics
Display
2 x HDMI2.0 Max 4K 60hz; 1 x EDP PinHeader (2 x 15Pin 2.0mm) Max 1080P 60hz
Storage
1 x SATA3.0 6Gb/s; 1 x M.2 SSD2280 (NGFF/PCIe auto-switching)
Network
4 x intel I226-V (Lan1 optional PinHeader)
USB
External 4 x USB2.0 (optional PinHeader, A USB can be flipped) + 2 x USB3.2 Gen2
Serial
2 x COM RS232 (COM2 support RS485, COM1 appearance supports RJ45)
Expansion
M.2_WIFI(E_KEY) 2230 socket, PCIe Support CNVI; MPCIE Support WIFI/4G USB/PCIe interface; 1 x NANO SIM; Supports 8 channels GPIO
Watchdog
4~255 Sec Watchdog Timer
Fan
4Pin 12V System Fan Detection and intelligent control
JP3
JP3(1-2)AUTO POWER ON, JP3(2-3)NORMAL
TPM
TPM2.0 Hardware_encryption (Optional)
DC input
DC 12V, DC 5.5 x 2.5mm
Environment - Temperature / humidity
Operating: -20~60 C /0~90%RH, Non-condensing; Non-Operating: -20~60 C /0~90%RH, Non-condensing
Dimensions
PCB Size: 120 x 120mm; Product Size: 148 x 125 x 56mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCD5 combines Intel N100 / i3-N305 processing, up to 32GB DDR5, and 4 x intel i226-v lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Multi-LAN Architecture
D-series systems provide multiple dedicated network interfaces for edge and gateway deployments.
Serial Equipment Support
Dual-COM architecture supports compatible serial equipment and management connections.
Edge Network Roles
Interface layouts suit segmented networks, gateways, routing, and compatible security software.
