MCIPCD6
Intel Celeron J6412 compact industrial PC
MCIPCD6 combines Intel Celeron J6412 processing, up to 64GB DDR4, and 4 x 2.5gbe lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Product Gallery
A closer look at MCIPCD6
Different product views highlight the enclosure design, interface layout, and installation details.

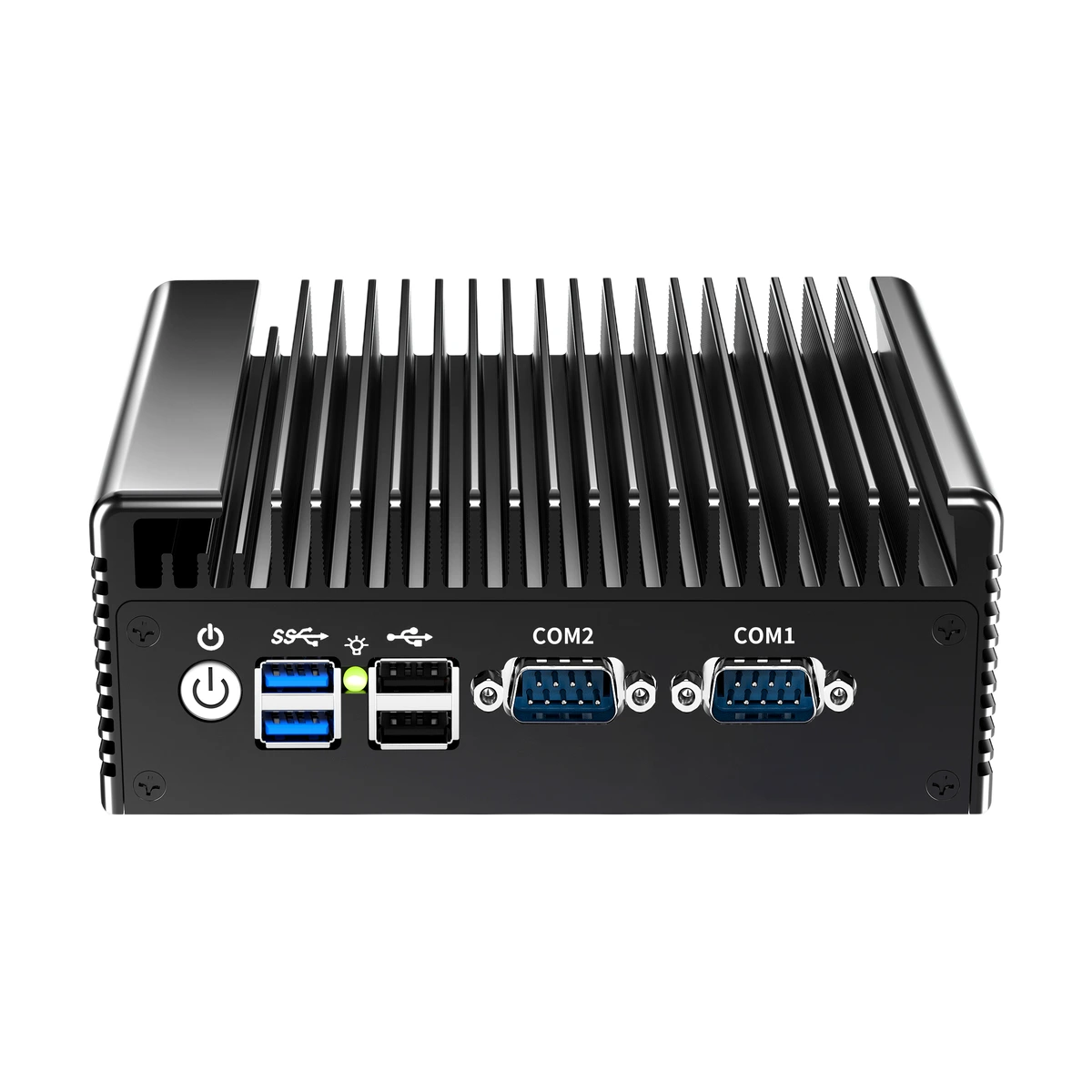

MCIPCD6 front panel

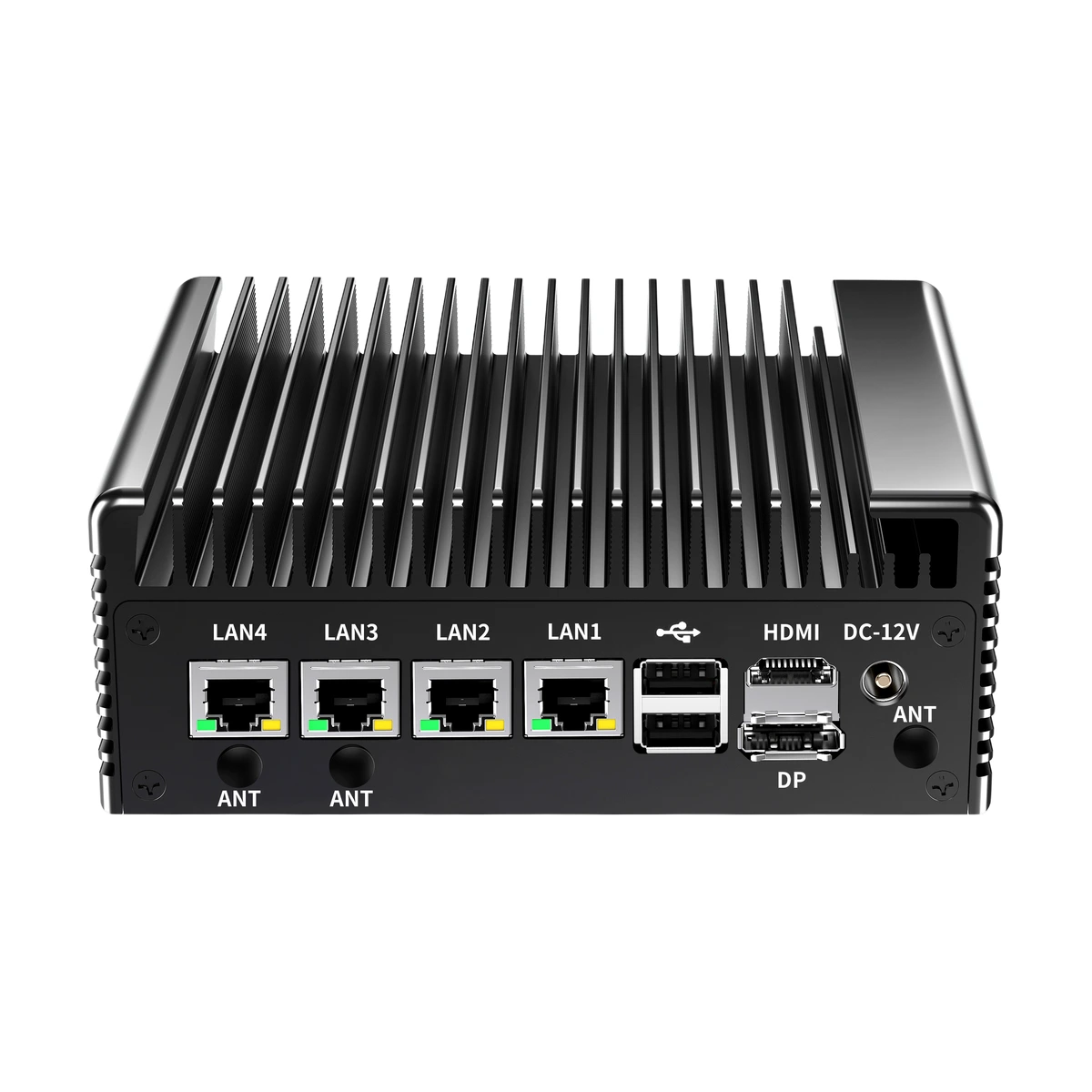

MCIPCD6 rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCD6 Specification Matrix
Available hardware configurations
Operating Range
-10°C to 60°C
Model
MCIPCD6
CPU
Intel Celeron J6412 2.0GHz Total Cores 4
BIOS
128Mb Flash ROM AUTO_POWER_ON, PXE, WOL
Memory
2 x SODIMM DDR4 3200MHz MAX 32G Total64G
Graphics
Intel UHD Graphics
Display
1 x HDMI2.0 Max 4K 60hz; 1 x DP1.2 Max 4K 60Hz
Storage
1 x SATA3.0 6Gbps; 1 x M.2 Key-M 2280/2242, default 2280 (NGFF/PCIE Adaptive)
Network
4 x intel i225/i226 2.5G network adapters
USB
4 x USB2.0 + 2 x USB3.0
Serial
2 x COM RS232 (COM1 hardware modification can support RS485)
Expansion
MPCIE: Support WIFI/4G PCIe interface; SIM: 1 x Nano SIM; GPIO: Supports 8 channels GPIO (4 inputs, 4 outputs)
Watchdog
Watchdog Timer
Fan
4Pin 12V CPU Fan Detection and intelligent control (Optional)
AX-ATX
AX-ATX(1-2) default, AX-ATX(2-3) AUTO POWER ON
DC input
DC 12V, DC 5.5 x 2.5mm
Environment - Temperature / humidity
Operating: -10~60 C /5~95%RH, Non-condensing; Non-Operating: -20~70 C /5~95%RH, Non-condensing
Dimensions
PCB Size: 120 x 120mm; Product Size: 148 x 125 x 56mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCD6 combines Intel Celeron J6412 processing, up to 64GB DDR4, and 4 x 2.5gbe lan for industrial computing and connected equipment. Model-specific serial, display, storage, and expansion options are detailed below; optional interfaces depend on the selected configuration.
Multi-LAN Architecture
D-series systems provide multiple dedicated network interfaces for edge and gateway deployments.
Serial Equipment Support
Dual-COM architecture supports compatible serial equipment and management connections.
Edge Network Roles
Interface layouts suit segmented networks, gateways, routing, and compatible security software.
