MCIPCE1
Intel Core i7-1360P industrial PC with four LAN ports and 9–36V input
MCIPCE1 combines an Intel Core i7-1360P, up to 32GB DDR4, two Gigabit and two 2.5GbE ports, six serial ports, and 14 GPIO signals. Four serial ports support RS-485/RS-422. A 9–36V Phoenix terminal input, multiple storage interfaces, and desktop or wall mounting support custom industrial deployments.
Product Gallery
A closer look at MCIPCE1
Different product views highlight the enclosure design, interface layout, and installation details.

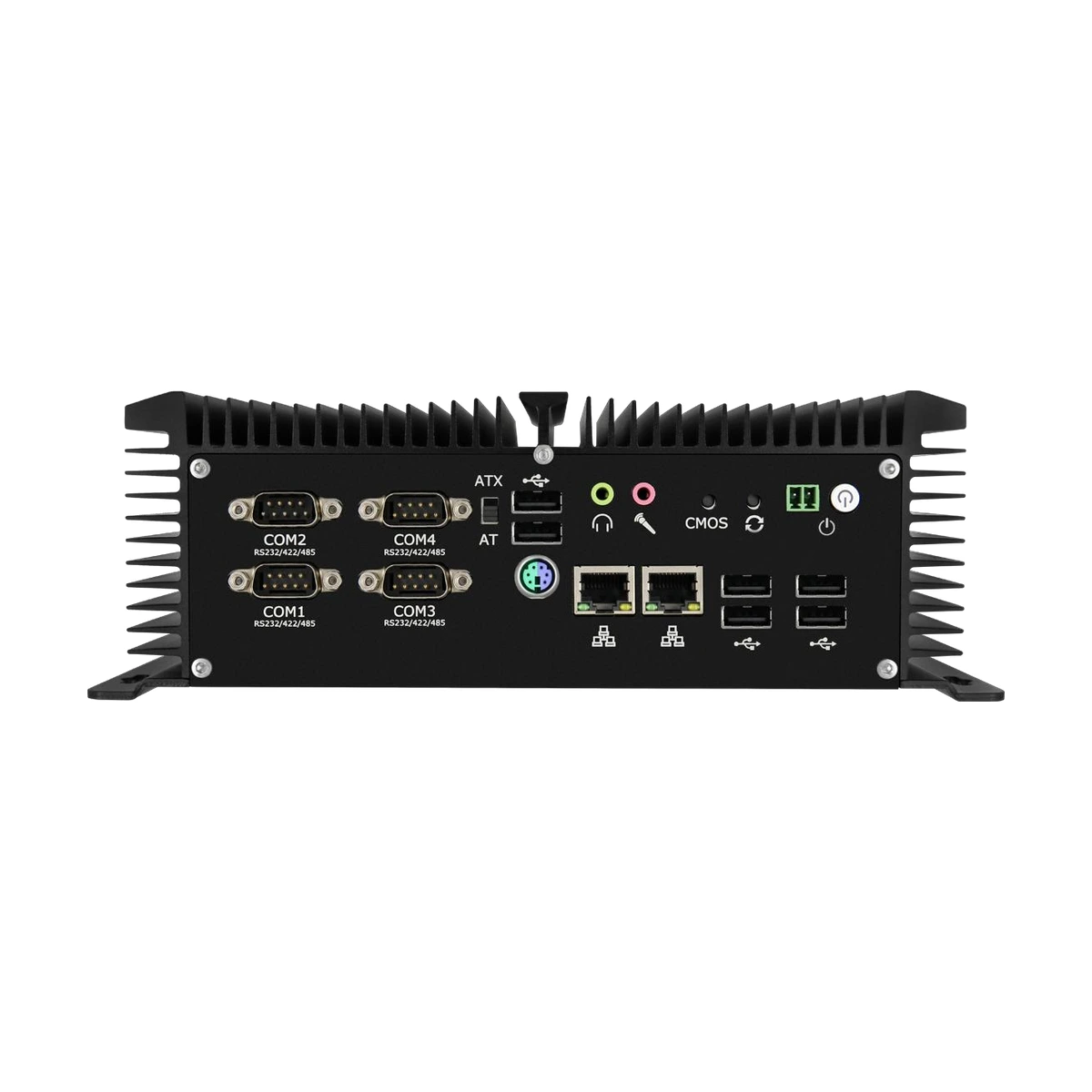

MCIPCE1 front panel

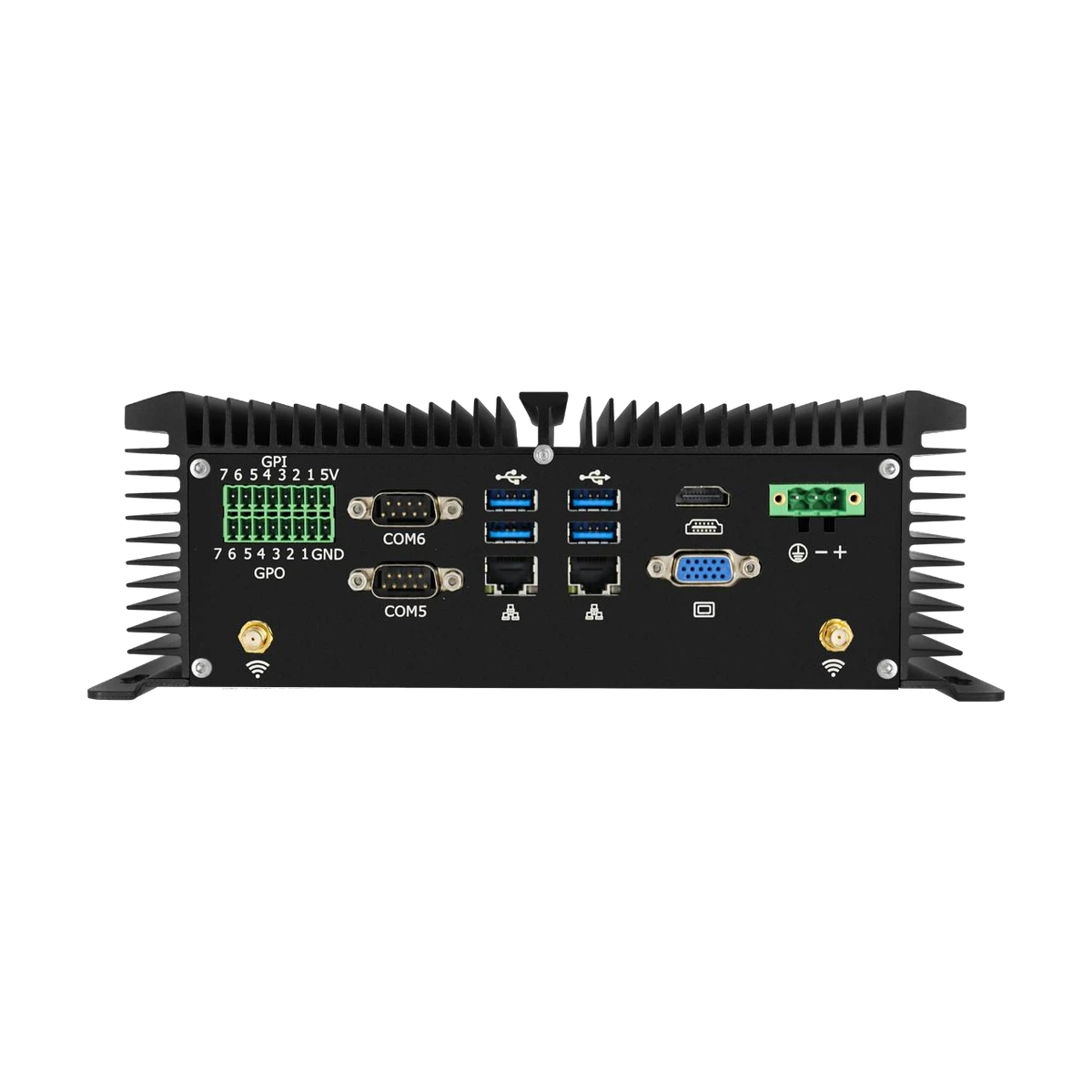

MCIPCE1 rear panel
Technical Specifications
Industrial-grade configuration details
MCIPCE1 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCIPCE1
CPU
Intel® Core™ i7-1360P Processor
Memory
2 x DDR4 SO-DIMM, up to 32 GB
Display
1 x HDMI; 1 x VGA
Network
2 x Intel GbE; 2 x Intel 2.5 GbE
USB
4 x USB 3.0; 6 x USB 2.0
Serial
6 x RS-232 COM; 4 ports support RS-485/RS-422
GPIO
14 x GPIO: 7 inputs and 7 outputs
Other I/O
1 x PS/2; 1 x headphone; 1 x microphone; 2 x antenna ports
Buttons
1 x Power; 1 x Reset; 1 x Clear CMOS; 1 x ATX/AT selector
Storage
1 x mSATA; 1 x M.2 NVMe 2280; 1 x HDD/SSD bay
Expansion
1 x half-size Mini PCIe; 1 x full-size Mini PCIe with SIM; Wi-Fi/Bluetooth/3G/4G support
Power
DC 9-36 V via 3-pin Phoenix terminal
Firmware
Watchdog; one-key recovery; PXE/diskless boot
OS
Windows 10; Windows Embedded Standard 7/10; Linux
Material
Aluminum
Installation
Desktop or wall mount
Dimensions
248 x 150 x 83 mm
Weight
1.3 kg
Environment - Operating
-20 to 60 C
Environment - Storage
-30 to 70 C; 10%-90% RH at 30 C, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCE1 combines an Intel Core i7-1360P, up to 32GB DDR4, two Gigabit and two 2.5GbE ports, six serial ports, and 14 GPIO signals. Four serial ports support RS-485/RS-422. A 9–36V Phoenix terminal input, multiple storage interfaces, and desktop or wall mounting support custom industrial deployments.
Custom Industrial Platform
Intel Core i7-1360P computing with desktop or wall mounting.
Four-Port Networking
Two Gigabit and two 2.5GbE interfaces connect industrial equipment and upstream networks.
Equipment Connectivity
Six serial ports, 14 GPIO signals and 9–36V input support equipment integration.
