MCTPC-1201X
12.1-inch 1024 x 768 industrial panel PC with four platform options
MCTPC-1201X combines a 12.1-inch 1024 x 768 capacitive display with Intel J1900 or Core 3rd–8th Gen platform options. Dual Gigabit Ethernet and two RS-232/RS-485 COM ports support equipment integration. The front panel is IP65-rated; standard power is 12V DC, with an optional 9–36V Phoenix terminal. Memory, USB and storage specifications are listed separately for each platform.
A closer look at MCTPC-1201X
Different product views highlight the enclosure design, interface layout, and installation details.

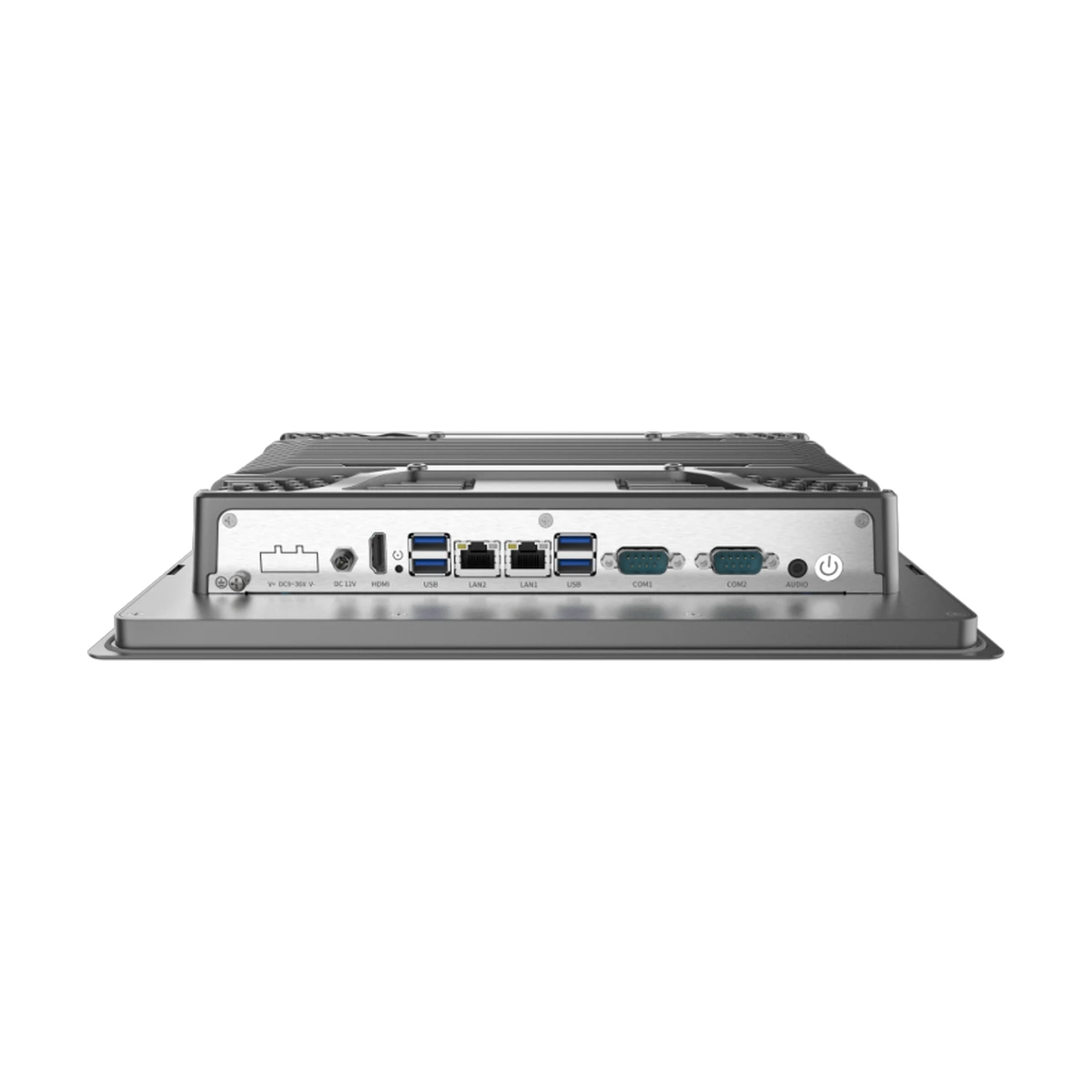

MCTPC-1201X rear view — Core platforms
MCTPC-1201X rear view — J1900

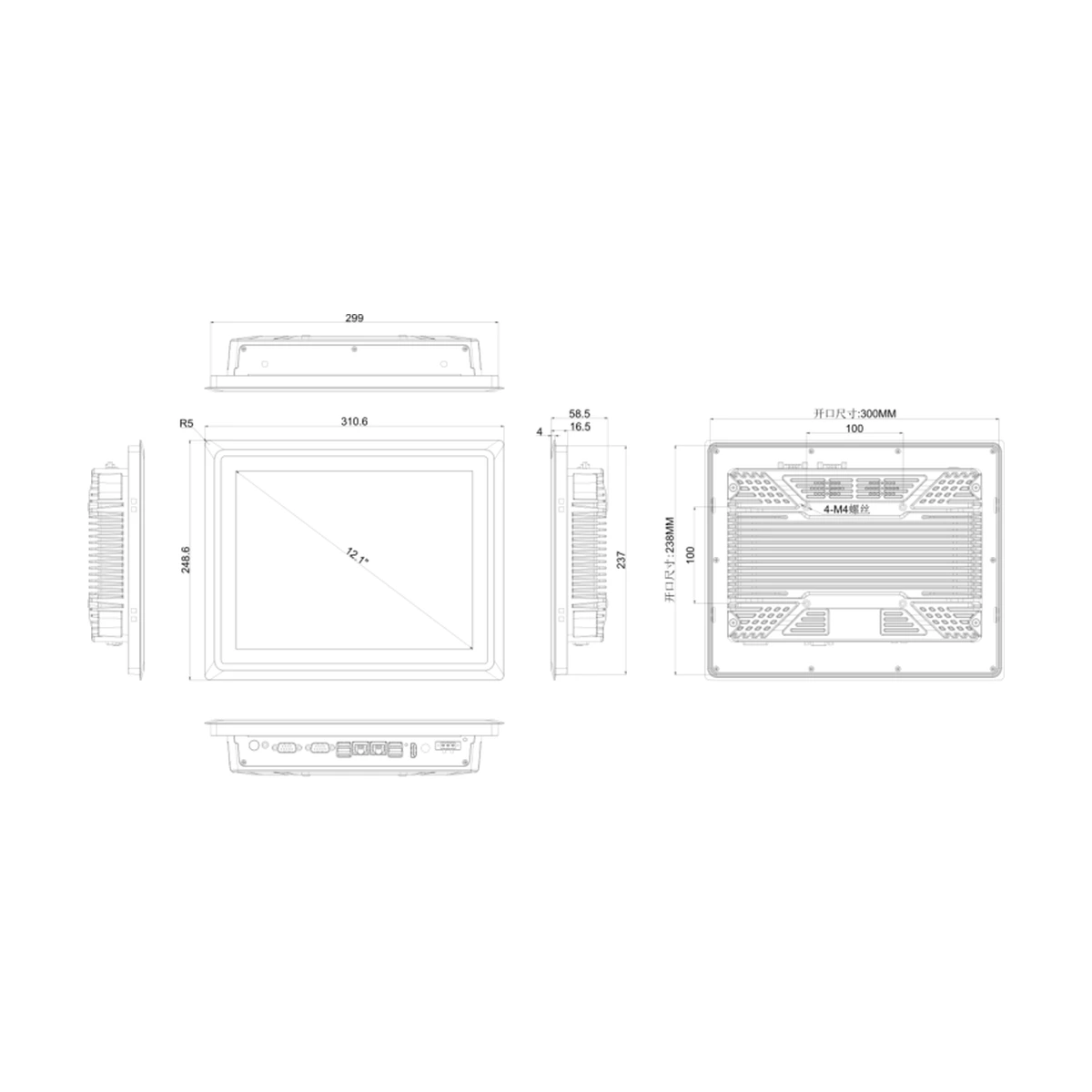

MCTPC-1201X dimensions and panel cutout (mm)
Industrial-grade configuration details
Available hardware configurations
Operating Range
-10 to 60 °C / 5 to 95%RH, Non-condensing
Model
MCTPC-1201X
CPU
Intel J1900 or Intel Core 3rd / 4th / 5th / 6th / 7th / 8th Gen; configuration-dependent memory, USB and storage
Display
12.1-inch TFT-LCD; 1024 x 768
Touch
Projected capacitive touch; 85% transmittance
Color / brightness
72% sRGB; 500 cd/m²
Viewing angle
All-round perspective
Backlight life
50,000 hours
Display output
1 x HDMI
Graphics
Intel HD Graphics
Network
2 x Realtek RTL8111H Gigabit Ethernet ports
Serial
2 x DB9 COM, RS-232; COM1/COM2 support RS-485
Audio
3.5 mm audio; Realtek ALC897 codec
Power
DC 12 V standard, 5.5 x 2.5 mm; optional 9-36 V Phoenix terminal
Environment - Operating
-10 to 60 °C / 5 to 95%RH, Non-condensing
Environment - Non-operating
-20 to 70 °C / 5 to 95%RH, Non-condensing
Protection
IP65-rated front panel only
Dimensions
310.5 x 248.6 x 58.5 mm
Panel cutout
300 x 238 mm
Platform - J1900
Intel J1900; 1 x DDR3L SODIMM, max 8 GB; 1 x USB 3.0 + 3 x USB 2.0; 1 x mSATA (3 Gb/s)
Platform - Core 3rd Gen
Intel Core 3rd Gen; 1 x DDR3 SODIMM, max 8 GB; 4 x USB 3.0; 1 x mSATA (6 Gb/s)
Platform - Core 4th / 5th Gen
Intel Core 4th / 5th Gen; 2 x DDR3L SODIMM, max 16 GB; 4 x USB 3.0; 1 x mSATA (6 Gb/s)
Platform - Core 6th / 7th / 8th Gen
Intel Core 6th / 7th / 8th Gen; 2 x DDR4 SODIMM, max 32 GB; 4 x USB 3.0; 1 x mSATA (6 Gb/s)
Expansion - J1900
Mini PCIe full-size for Wi-Fi/4G; half-size for Wi-Fi; 1 x Nano SIM
Expansion - Core 3rd Gen
Mini PCIe half-size for Wi-Fi only; full-size for Wi-Fi/4G; 1 x Nano SIM
Expansion - Core 4th / 5th Gen
Mini PCIe half-size for Wi-Fi/BT; full-size for Wi-Fi/4G; 1 x Nano SIM
Expansion - Core 6th / 7th / 8th Gen
Mini PCIe full-size for Wi-Fi/4G and half-size for Wi-Fi/BT; not two Wi-Fi modules at once; 1 x Nano SIM
GPIO
J1900 / Core 3rd / Core 4th-5th: 4-channel I/O GPIO; Core 6th-8th: 1 x 2-by-5-pin GPIO header
TPM 2.0
J1900 / Core 3rd / Core 4th-5th: reserved external header, module not fitted; Core 6th-8th: 1 x 2-by-7-pin header
OS
Core 3rd Gen: Windows XP / 7 / 10 / Linux; other platforms: Windows 7 / 10 / Linux
Configuration
Wi-Fi, Bluetooth, 4G and 9-36 V terminal are supported/options where stated; not standard installed parts.
Ready for control cabinets, edge gateways, and machine-side computing
MCTPC-1201X combines a 12.1-inch 1024 x 768 capacitive display with Intel J1900 or Core 3rd–8th Gen platform options. Dual Gigabit Ethernet and two RS-232/RS-485 COM ports support equipment integration. The front panel is IP65-rated; standard power is 12V DC, with an optional 9–36V Phoenix terminal. Memory, USB and storage specifications are listed separately for each platform.
Integrated Industrial Display
TPC-series systems combine an industrial display and embedded computing in one panel-mount device.
Industrial I/O
Network, serial, USB, display, and expansion interfaces vary by panel size and compute platform.
Configurable Compute Platform
Available Intel processor, memory, and storage options are listed for each model.
