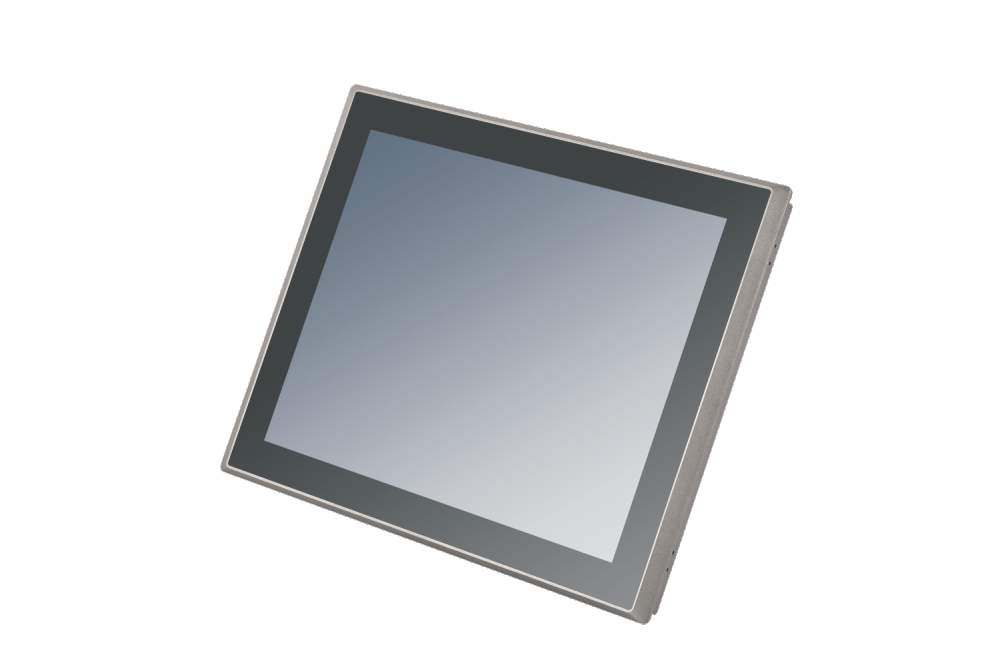

MCTPC-1501B
15.0-inch 1024x768 industrial panel PC
MCTPC-1501B is an industrial panel PC with an integrated display. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery
A closer look at MCTPC-1501B
Different product views highlight the enclosure design, interface layout, and installation details.

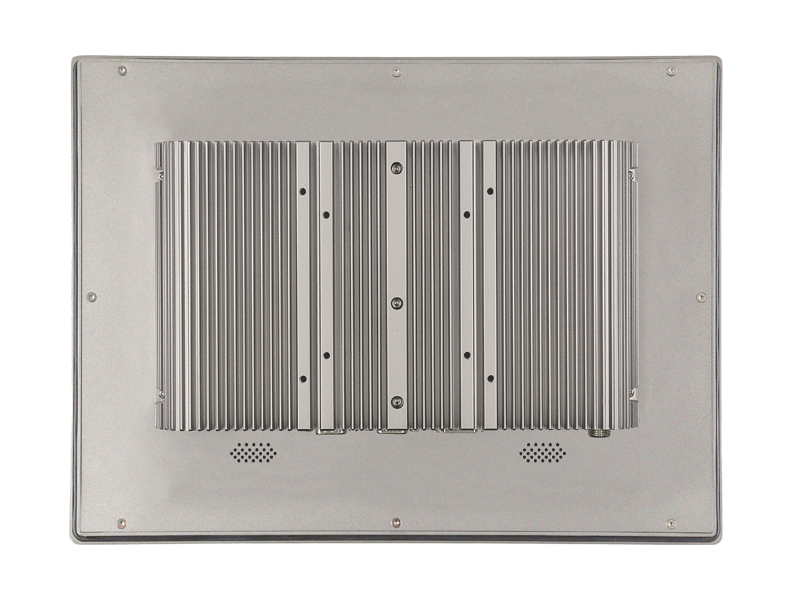

MCTPC-1501B enclosure design
Rear enclosure and mounting details for panel integration.

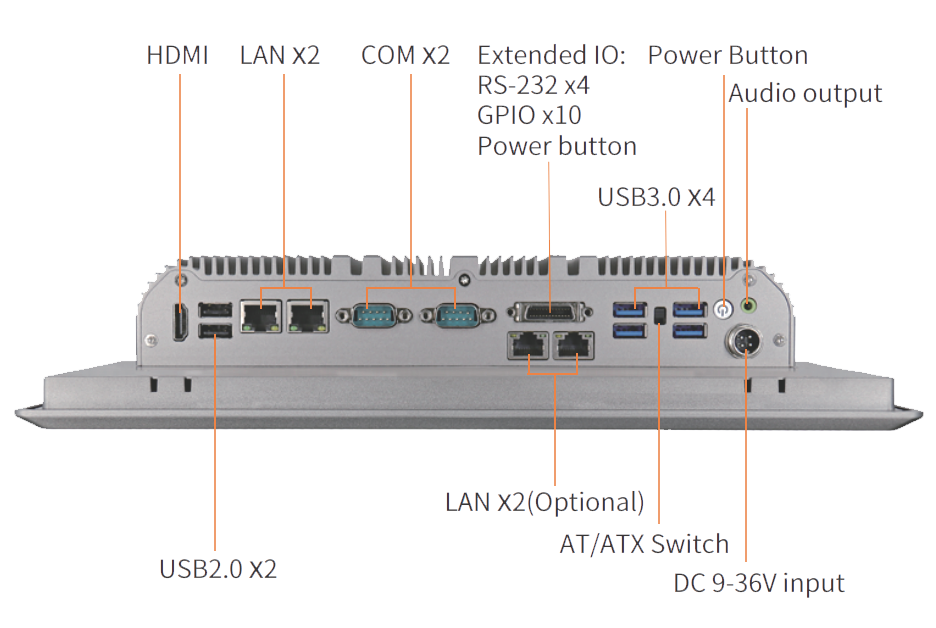

MCTPC-1501B interface layout
I/O arrangement for connecting power, network, serial devices, and peripherals.
Technical Specifications
Industrial-grade configuration details
MCTPC-1501B Specification Matrix
Available hardware configurations
Operating Range
Working Temp: -20°C to +60°C
Model
MCTPC-1501B
Series
TPC Series
CPU
Intel Celeron J4125/J6412, Intel Core 8th/10th/11th Gen-U i5/i7
Display
LCD Type: 15.0" TFT-LCD; Resolution: 1024x768
Memory
J4125/J6412: 1 x DDR4 SODIMM Core i5/i7: 2 x DDR4 SODIMM
USB
J4125/J6412: 4 x USB 2.0, 2 x USB 3.0
Network
2 x 2.5 GbE RJ45 Intel i225V (Optional 4 x 2.5GbE RJ45 Intel i225V)
Serial
2 x DB-9 COM1 & COM2 (RS-232/422/485)
Power
DC 9-36V (4-pin aviation connector)
System
Windows 10/11, WES 10, LINUX
Operating Environment
Working Temp: -20°C to +60°C
Dimensions
376.13 x 285.34 x 68.90 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCTPC-1501B is an industrial panel PC with an integrated display. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Integrated Industrial Display
TPC-series systems combine an industrial display and embedded computing in one panel-mount device.
Industrial I/O
Network, serial, USB, display, and expansion interfaces vary by panel size and compute platform.
Configurable Compute Platform
Available Intel processor, memory, and storage options are listed for each model.
