MCTPC-1506E
15.6-inch Full HD industrial panel PC with flexible Intel platforms
MCTPC-1506E combines a 15.6-inch Full HD display with industrial computing, multi-serial expansion, dual 2.5GbE networking, and DC 9-36V input. Its configurable processor, memory, storage, and wireless options support machine interfaces, production dashboards, and panel-mounted control applications.
Product Gallery

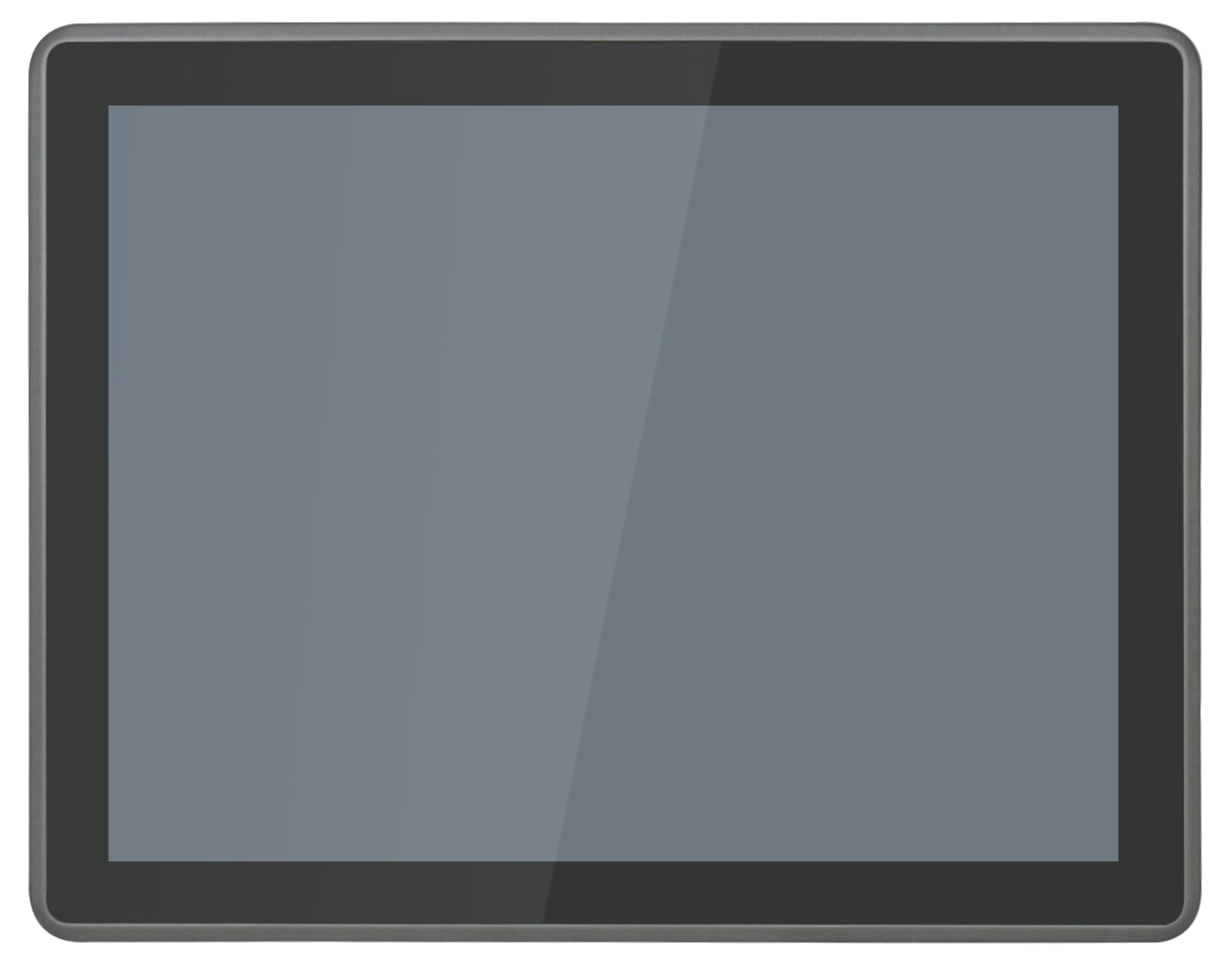

A closer look at MCTPC-1506E

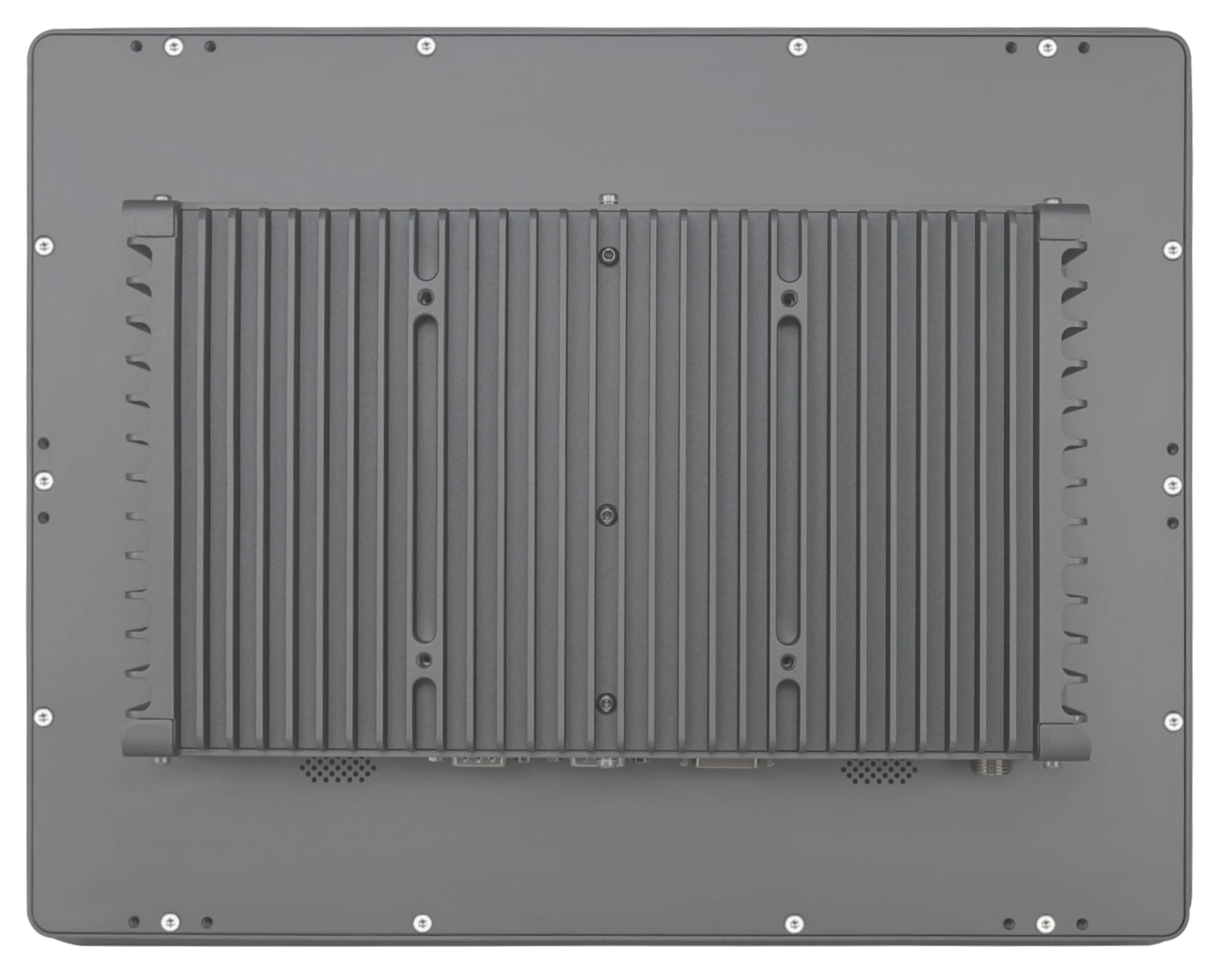

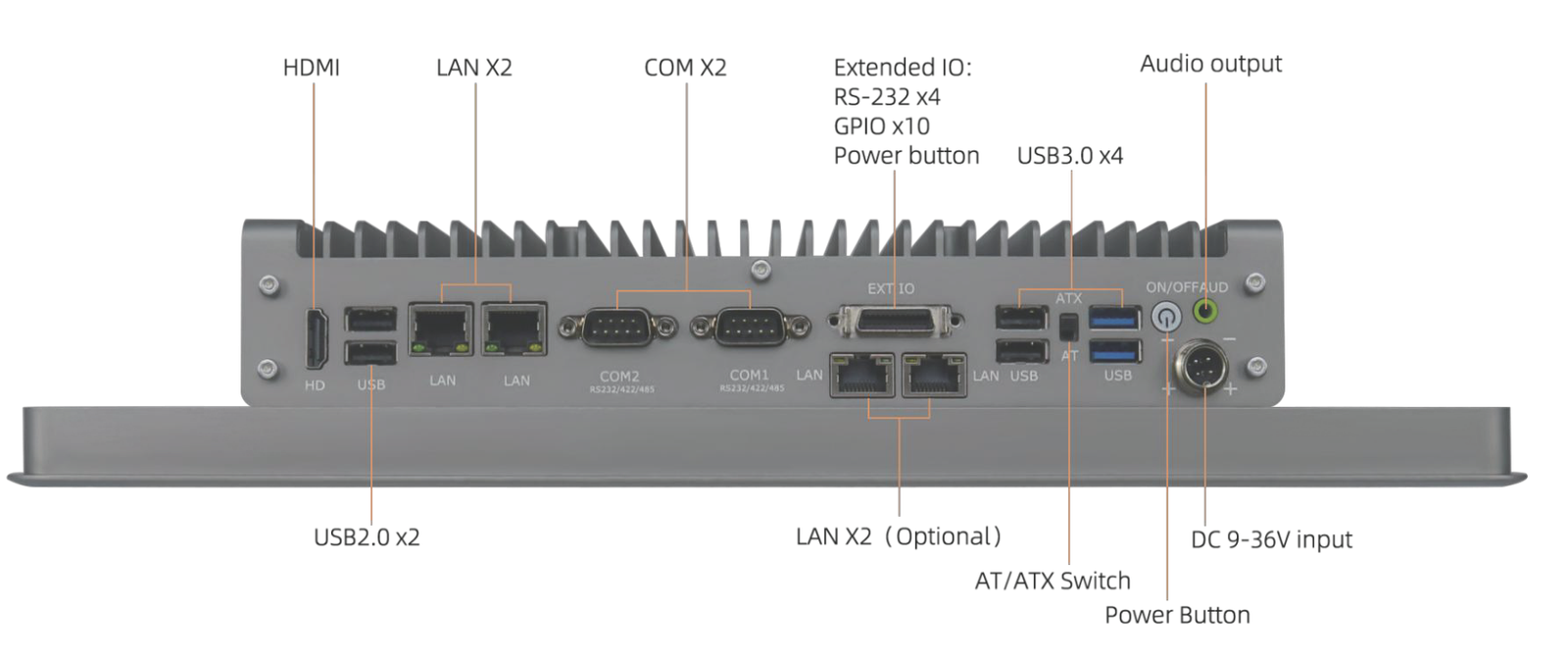

Different product views highlight the enclosure design, interface layout, and installation details.
MCTPC-1506E
MCTPC-1506E
Technical Specifications
Industrial-grade configuration details
MCTPC-1506E Specification Matrix
Available hardware configurations
Operating Range
-20°C to +60°C
Model
MCTPC-1506E
Series
TPC Series
CPU
Intel Celeron J4125/J6412, Intel Processor N100/N150; Intel Core 8th/10th/11th/12th/13th Gen i3/i5/i7
Display
LCD Type: 15.6" TFT-LCD; Resolution: 1920x1080
USB
8th/10th/12th/13th Gen: 4 x USB 3.0, 2 x USB 2.0
Network
2 x 2.5GbE RJ45 Intel i225V/i226V (Expandable to 4 LAN ports)
Serial
2 x DB-9 COM1 & COM2 (RS-232/422/485)
Storage
1 x M.2 2242/2260/2280 SATA, 1 x 2.5" HDD/SSD
Power
DC 9-36V (4-pin aviation connector)
System
Windows, LINUX
Operating Environment
Working Temp: -20°C to +60°C
Dimensions
378.56 x 235.49 x 66.5 mm
Memory
J4125/J6412: 1 x DDR4 SODIMM; N100/N150: 1 x DDR5 SODIMM; 8th/10th/11th Gen Core: 2 x DDR4 SODIMM; 12th/13th Gen Core: 2 x DDR5 SODIMM
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCTPC-1506E integrates a Full HD industrial display, configurable Intel computing, wide-voltage power, 2.5GbE networking, serial connectivity, and wireless expansion in one panel-mount system.
15.6-inch Full HD Display
The integrated 1920 x 1080 panel provides a clear machine interface and production dashboard surface.
Industrial Network and Serial I/O
Dual 2.5GbE, dual configurable COM, and extended I/O support equipment and controller integration.
Configurable Compute Platform
Multiple Intel processor generations, storage formats, and wireless modules support varied project requirements.
Interested in MCTPC-1506E?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
