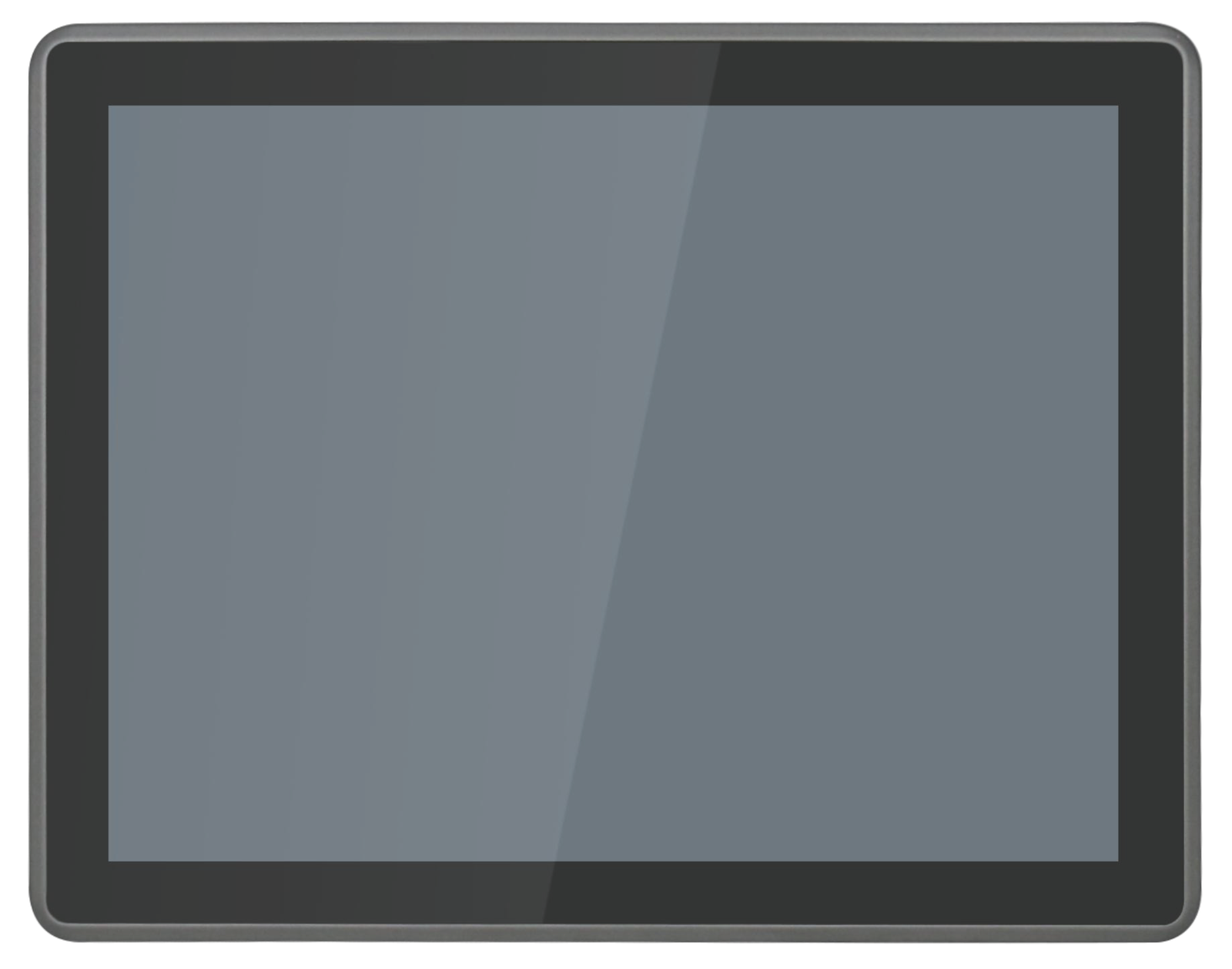

MCTPC-1805E
18.5-inch 1920x1080 industrial panel PC
MCTPC-1805E is an industrial panel PC with an integrated display. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery
A closer look at MCTPC-1805E
Different product views highlight the enclosure design, interface layout, and installation details.

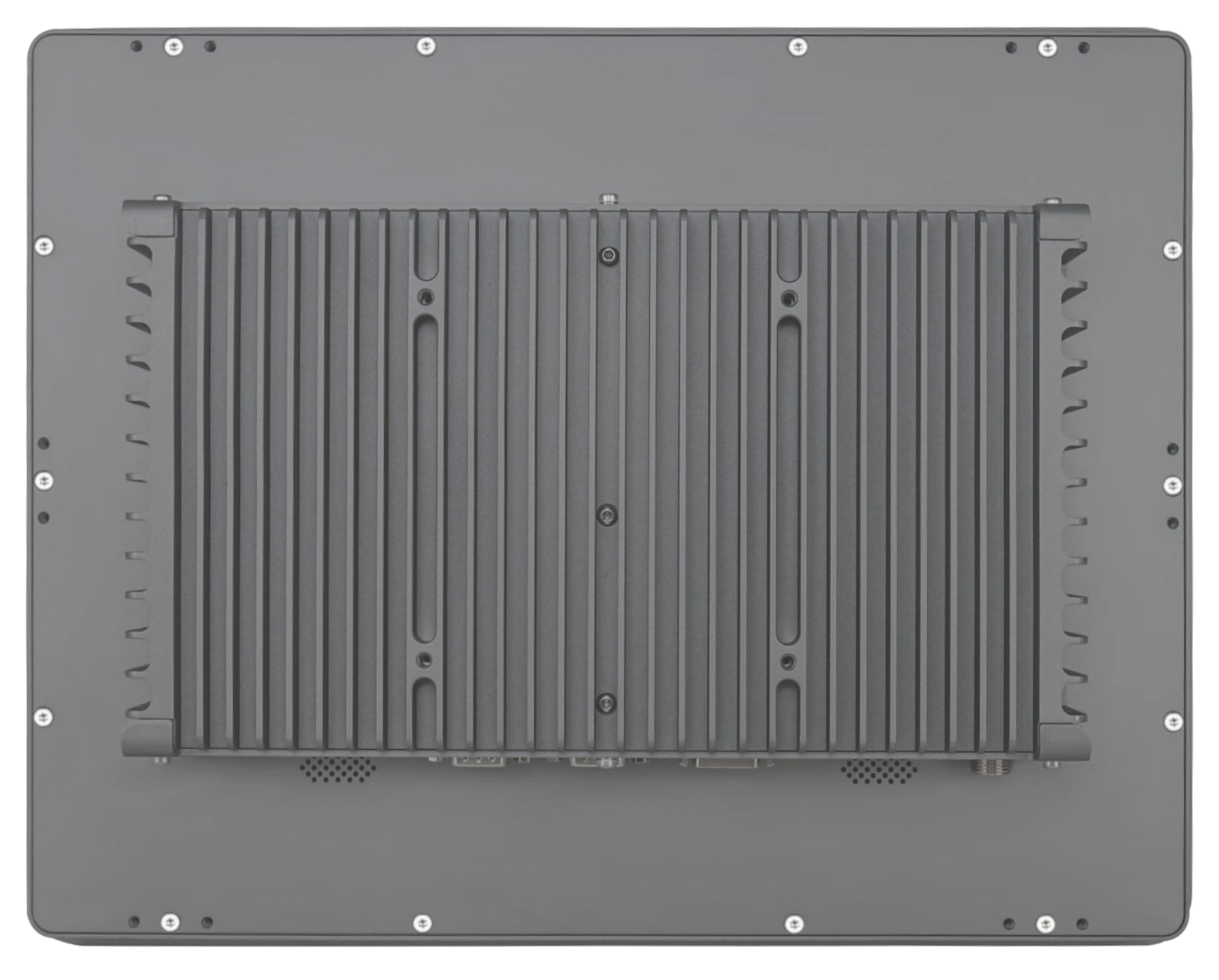

MCTPC-1805E enclosure design
Rear enclosure and mounting details for panel integration.

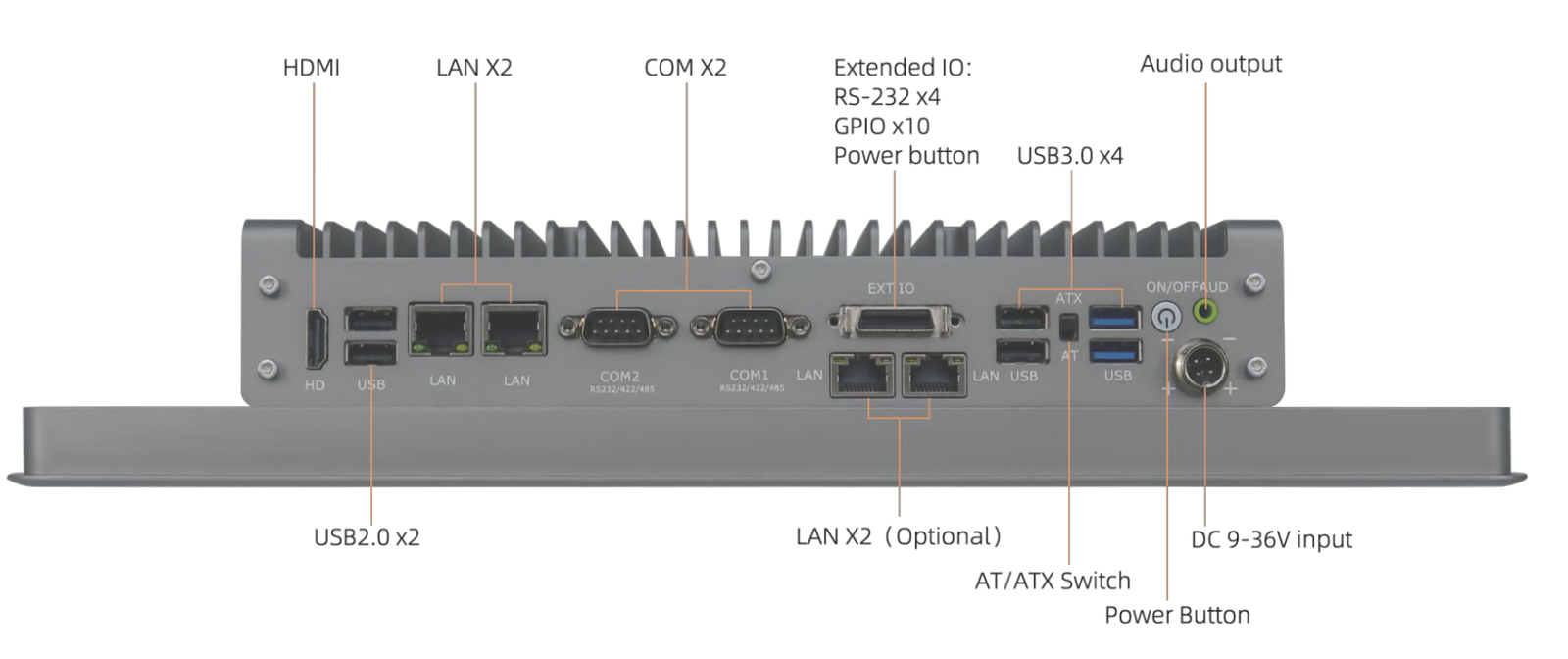

MCTPC-1805E interface layout
I/O arrangement for connecting power, network, serial devices, and peripherals.
Technical Specifications
Industrial-grade configuration details
MCTPC-1805E Specification Matrix
Available hardware configurations
Operating Range
Working Temp: -20°C to +60°C
Model
MCTPC-1805E
Series
TPC Series
CPU
Intel Celeron J4125/J6412, Intel Processor N100/N150; Intel Core 8th/10th/11th/12th/13th Gen i3/i5/i7
Display
LCD Type: 18.5" TFT-LCD; Resolution: 1920x1080
USB
8th/10th/12th/13th Gen: 4 x USB 3.0, 2 x USB 2.0
Network
2 x 2.5GbE RJ45 Intel i225V/i226V (Expandable to 4 LAN ports)
Serial
2 x DB-9 COM1 & COM2 (RS-232/422/485)
Storage
1 x M.2 2242/2260/2280 SATA, 1 x 2.5" HDD/SSD
Power
DC 9-36V (4-pin aviation connector)
System
Windows, LINUX
Operating Environment
Working Temp: -20°C to +60°C
Dimensions
447.2 x 273.6 x 66.5 mm
Memory
J4125/J6412: 1 x DDR4 SODIMM; N100/N150: 1 x DDR5 SODIMM; 8th/10th/11th Gen Core: 2 x DDR4 SODIMM; 12th/13th Gen Core: 2 x DDR5 SODIMM
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCTPC-1805E is an industrial panel PC with an integrated display. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Integrated Industrial Display
TPC-series systems combine an industrial display and embedded computing in one panel-mount device.
Industrial I/O
Network, serial, USB, display, and expansion interfaces vary by panel size and compute platform.
Configurable Compute Platform
Available Intel processor, memory, and storage options are listed for each model.
Interested in MCTPC-1805E?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
